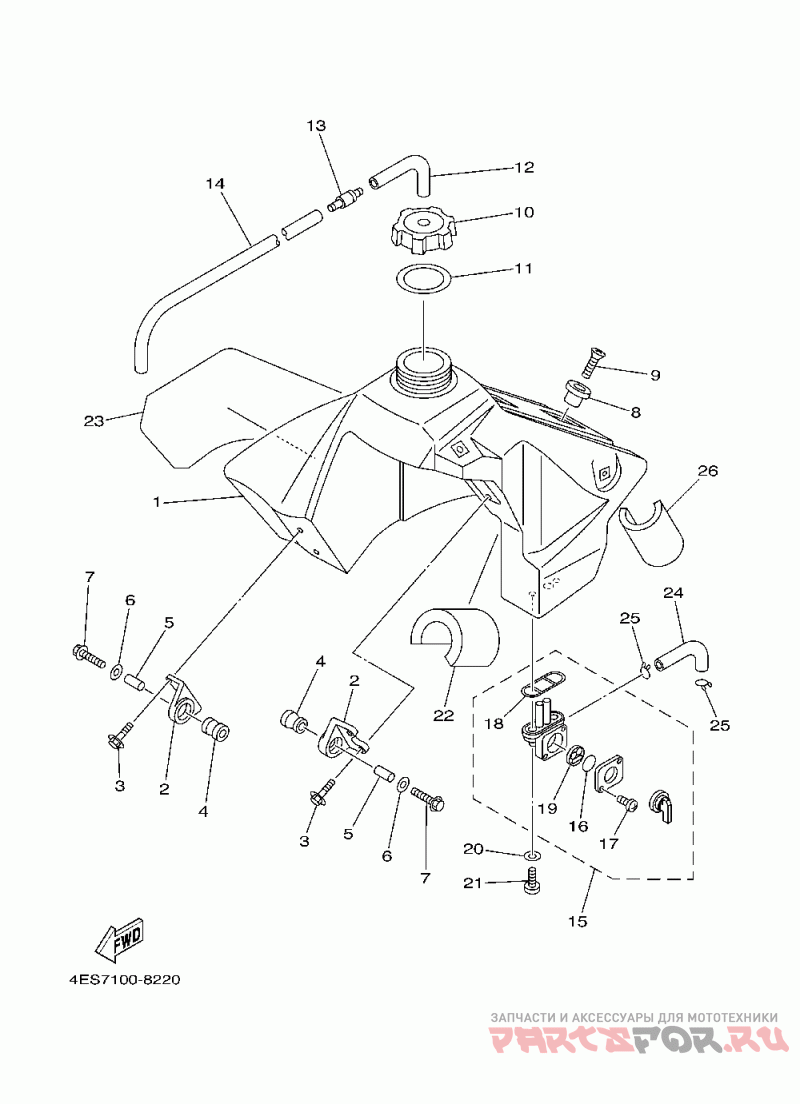

Топливный бак

Yamaha (Америка) YZ 80

Yamaha (Америка)
#oem кодцена
1
4ES-24110-21-00
Fuel Tank Comp. (4esa)
2
5XE-24144-00-00
Holder, Damper (4esa)
3
90105-06696-00
Bolt, Washer Based (4esa)
4
90480-18549-00
Grommet (4esa)
5
90387-06027-00
Collar (4esa)
6
90201-063J2-00
Washer, Plate (4esa)
7
95027-06030-00
Bolt, Small Flange (4esa)
8
4EW-2412F-00-00
Bracket, Seat (4esa)
9
98707-06025-00
Screw, Flat (4esa)
10
5X7-24611-01-00
Body, Cap (4esa)
11
5X7-24612-00-00
Gasket, Cap (4esa)
12
90445-093J2-00
Hose (jn3) (4esa)
13
3XJ-24380-00-00
Pipe Joint Asy (4esa)
14
90445-09M25-00
Hose (4esa)
15
4DP-24500-01-00
Fuel Cock Assy 1 (4esa)
16
3AJ-24534-01-00
Seal, Cock (4esa)
17
98580-03008-00
Screw, Pan Head (4esa)
18
4X8-24512-00-00
Gasket (4esa)
19
3AC-24523-00-00
Valve Packing (4esa)
20
90202-05187-00
Washer, Plate (4esa)
21
90149-06011-00
Screw, Spec'l Shape (4esa)
22
3Y0-24183-00-00
Damper, Locating 3 (4esa)
23
4ES-24244-10-00
Graphic, Fuel Tank 1 (4esa)
24
4ES-24311-10-00
Pipe, Fuel 1 (4esa)
25
90467-10008-00
Clip, Scissor (4esa)
26
51L-28371-00-00
Damper (4esa)
14
90445-092K1-00
Hose (4esa)
