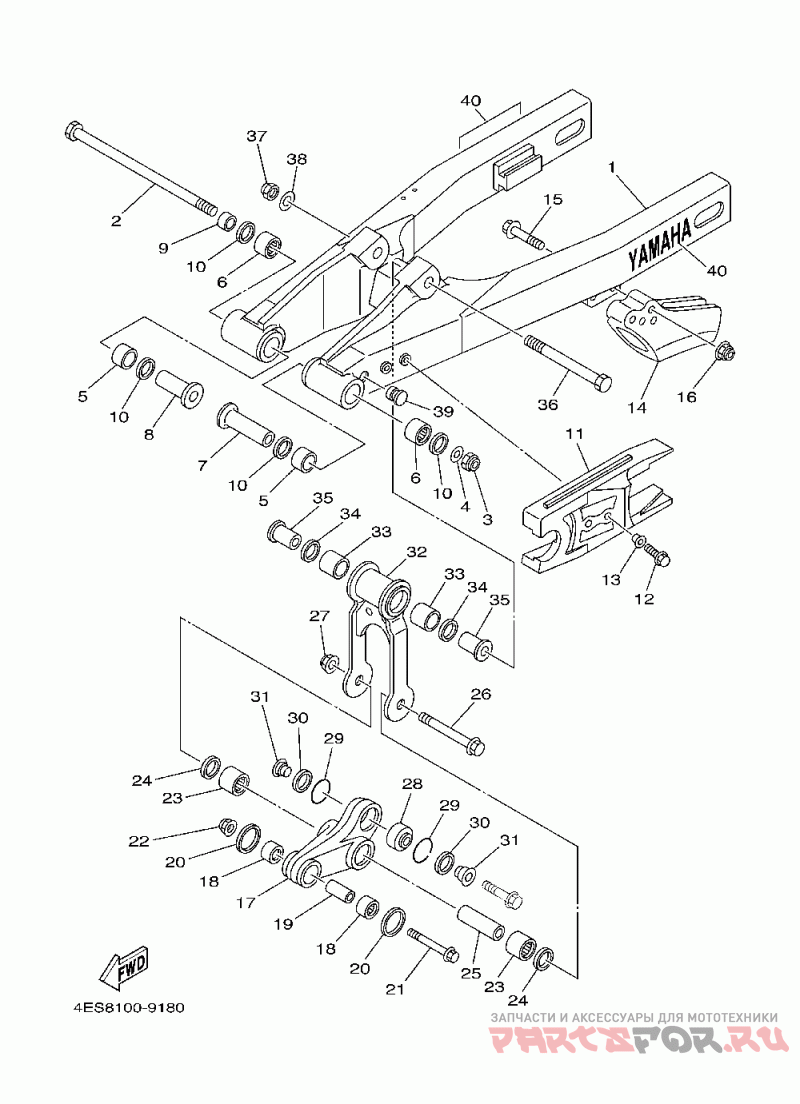

Бугель (задний рычаг)

Yamaha (Америка) YZ 80

Yamaha (Америка)
#oem кодцена
1
4ES-22110-01-00
Rear Arm Comp. (4esa)
2
22W-25181-01-00
Axle, Wheel (4esa)
3
95617-12100-00
Nut, U (4esa)
4
90201-124G9-00
Washer, Plate (4esa)
5
90385-17042-00
Bush, Spec'l Rubber (4esa)
6
93317-21746-00
Bearing, Cyl.#17 (4esa)
7
90387-127J8-00
Collar (4esa)
8
90387-127J7-00
Collar (4esa)
9
90387-1200U-00
Collar (4esa)
10
93109-17071-00
Oil Seal (4esa)
11
4ES-22151-10-00
Seal, Guard (4esa)
12
95027-06014-00
Bolt, Flange (4esa)
13
90387-062X0-00
Collar (4esa)
14
39K-22199-00-00
Support, Chain (4esa)
15
90105-08310-00
Bolt, Washer Based (4esa)
16
90185-08169-00
Nut, Self Locking (4esa)
17
4ES-2217A-00-00
Arm, Relay (4esa)
18
93315-21455-00
Bearing, Cylindrical (4esa)
19
90380-10218-00
Bush, Solid (4esa)
20
4ES-22129-00-00
Cover, Thrust 2 (4esa)
21
90105-10582-00
Bolt, Washer Based (4esa)
22
95607-10200-00
Nut, Self-locking (4esa)
23
93317-31771-00
Bearing, Cyl.(3yl) (4esa)
24
93101-17062-00
Oil Seal, S-type (4esa)
25
90380-12219-00
Bush, Solid (4esa)
26
90105-12382-00
Bolt, Washer Based (4esa)
27
95607-12200-00
Nut, U Flange (4esa)
28
93399-99935-00
Bearing (4esa)
29
93440-30113-00
Circlip, Outer (4esa)
30
3XJ-22475-00-00
Seal, Dust (4esa)
31
90387-103X9-00
Collar (4esa)
32
4ES-2217F-00-00
Rod, Connecting 1 (4esa)
35
90381-12091-00
Bush, Solid (4esa)
36
90101-12755-00
Bolt, (4es) (4esa)
37
90185-12119-00
Nut, Self-locking (4esa)
38
90201-12749-00
Washer, Plate (4esa)
39
90338-10150-00
Plug, Spec'l Shape (4esa)
40
99244-00140-00
Emblem 2 (4esa)
