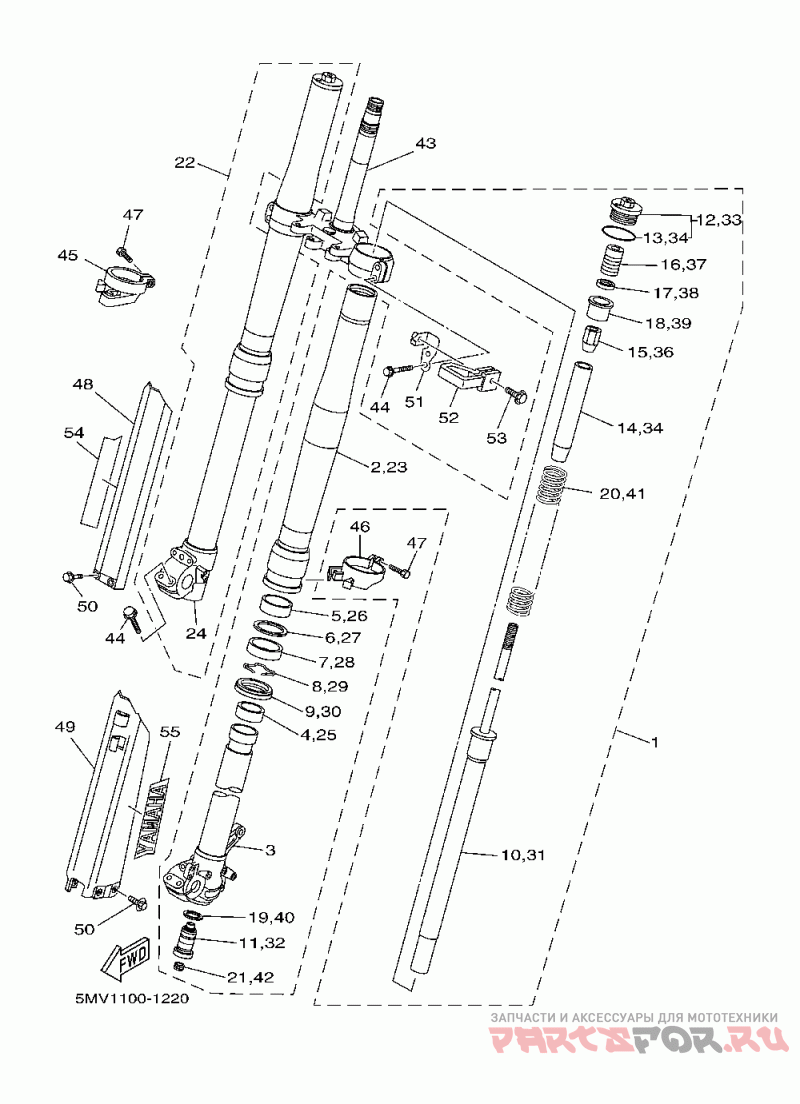

Передняя вилка

Yamaha (Америка) YZ 125

Yamaha (Америка)
#oem кодцена
1
5MV-23102-00-00
Front Fork Assy (l.h (5mv1)
2
5HD-23136-L0-00
Tube Outer (right) (5mv1)
3
5DH-23120-L0-00
Inner Tube Comp, 2 (5mv1)
4
5ET-23171-L0-00
Piston, Front Fork (5mv1)
5
5ET-23125-L0-00
Metal, Slide 1 (5mv1)
6
4SS-23146-L0-00
Washer, Oil Seal (5mv1)
7
5UN-23145-L0-00
Oil Seal (5mv1)
8
4SS-23153-L0-00
Ring, Snap (5mv1)
9
5HD-23144-L0-00
Seal, Dust (5mv1)
10
5MV-23170-L0-00
Cylinder Comp., Fron (5mv1)
11
5MV-2316A-L0-00
Valve Comp. (5mv1)
12
5MV-23111-L0-00
Bolt, Cap (5mv1)
13
93210-42263-00
O-ring (5mv1)
14
5DH-23142-L0-00
Seat, Spring Upper (5mv1)
15
5HD-23393-L0-00
Nut, Special Shap (5mv1)
16
5MV-23195-L0-00
Rubber (5mv1)
17
5DH-23149-L0-00
Washer, Spring Upper (5mv1)
18
5DH-23118-L0-00
Spacer (5mv1)
19
4SS-23158-L0-00
Gasket (5mv1)
20
4SS-23141-40-00
Sprg, Frt Frk (.41) (5mv1)
21
3JD-2312G-L0-00
Plug (5mv1)
22
5MV-23103-00-00
Front Fork Assy (r.h (5mv1)
24
5BF-23110-L0-00
Inner Tube Comp. 1 (5mv1)
43
5DH-23340-M0-00
Under Bracket Comp. (5mv1)
44
5MV-23346-L0-00
Bolt 1 (5mv1)
45
4SS-2314G-L0-00
Protecter, Guide, 2 (5mv1)
46
5DH-2314F-L0-00
Proctector Comp. 1 (5mv1)
47
4SS-23346-L0-00
Bolt 1 (5mv1)
48
5DH-2314J-00-00
Protecter Comp., 2 (5mv1)
49
5DH-2314H-00-00
Protecter Comp., 1 (5mv1)
50
3SP-23356-L0-00
Bolt 2 (5mv1)
51
4EW-2331E-L1-00
Guide, Cable (5mv1)
52
4DA-23389-00-00
Guide, Cable (5mv1)
53
90119-05071-00
Bolt, With Washer (5mv1)
54
4XL-2153A-10-00
Emblem, Yamaha (5mv1)
