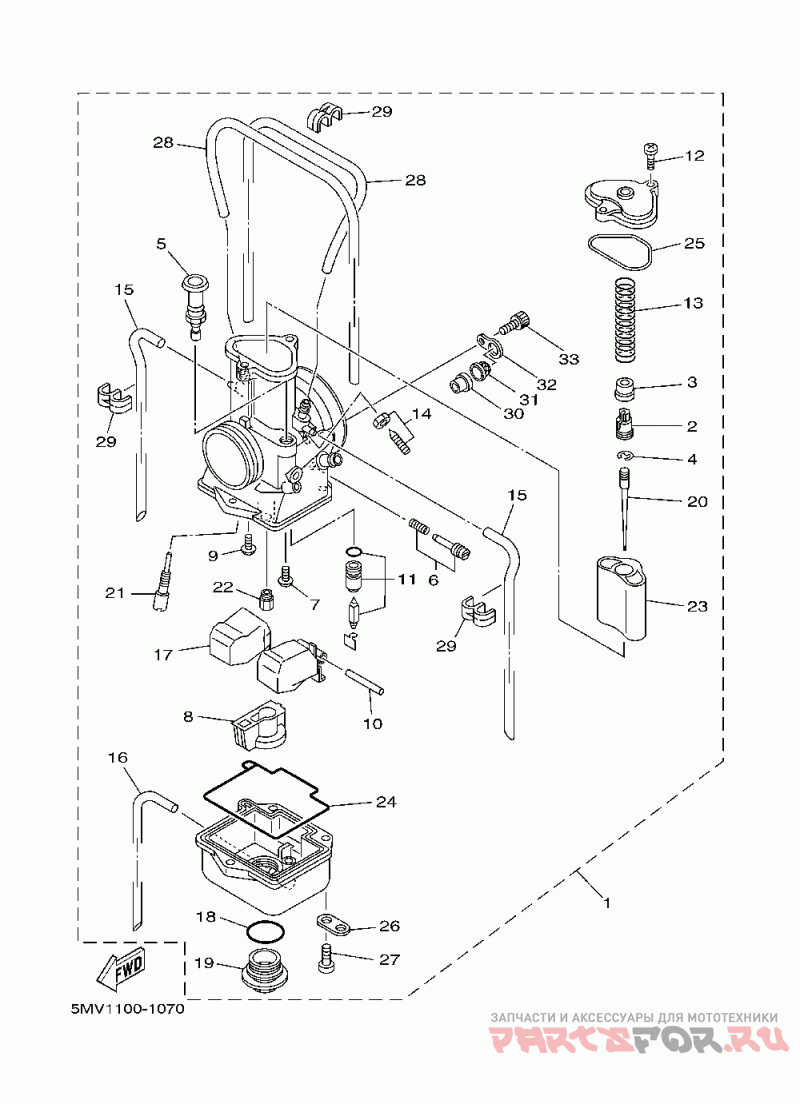

Карбюратор

Yamaha (Америка) YZ 125

Yamaha (Америка)
#oem кодцена
1
5MV-14101-00-00
Carburetor Assy 1 (5mv1)
2
4PE-14261-01-00
Holder (5mv1)
3
4PE-14194-00-00
Ring (5mv1)
4
3MA-14159-00-00
Clip (5mv1)
5
3JE-14171-00-00
Plunger, Starter (5mv1)
6
4GL-14104-00-00
Air Screw Set (5mv1)
7
1FN-14565-00-00
Screw (5mv1)
8
5ET-14261-01-00
Holder (5mv1)
9
98507-04008-00
Screw, Pan Head (5mv1)
10
353-14186-00-00
Pin, Float (5mv1)
11
4PE-14107-38-00
Needle Valve Set (5mv1)
12
98507-04014-00
Screw, Pan Hd N15 (5mv1)
13
4PE-14131-00-00
Spring, Throttle Vl (5mv1)
14
4PE-14103-00-00
Throttle Screw Set (5mv1)
15
5ET-14197-00-00
Pipe (5mv1)
16
3XV-14348-20-00
Pipe (5mv1)
17
5ET-14185-00-00
Float (5mv1)
18
2K6-14147-00-00
O-ring (5mv1)
19
5ET-14115-00-00
Plug, Screw (5mv1)
20
5A0-14116-H0-00
Needle Std (5mv1)
20
5A0-14116-H1-00
Needle (6bgk9-76) Ap (5mv1)
20
5A0-14116-H2-00
Needle (6bgk9-77) Ap (5mv1)
20
5A0-14116-H8-00
Needle (6bgk9-73) Ap (5mv1)
20
5A0-14116-H9-00
Needle (6bgk9-74) Ap (5mv1)
20
5A0-14116-K0-00
Needle (6bgk10-75) Ap (5mv1)
20
5A0-14116-K1-00
Needle (6bgk10-76) Ap (5mv1)
20
5A0-14116-K2-00
Needle (6bgk10-77) Ap (5mv1)
20
5A0-14116-K8-00
Needle (6bgk10-73) Ap (5mv1)
20
5A0-14116-K9-00
Needle (6bgk10-74) Ap (5mv1)
21
4KM-14142-20-00
Jet, Pilot (# 20) Ap (5mv1)
21
4KM-14142-22-00
Jet, Pilot (# 22.5) Ap (5mv1)
21
4KM-14142-25-00
Jet, Pilot (# 25 Std (5mv1)
21
4KM-14142-27-00
Jet, Pilot (# 27.5 Ap (5mv1)
21
4KM-14142-30-00
Jet, Pilot (# 30) Ap (5mv1)
21
4KM-14142-32-00
Jet, Pilot (# 32.5) Ap (5mv1)
21
4KM-14142-35-00
Jet, Pilot(#35) Ap (5mv1)
21
4KM-14142-37-00
Jet, Pilot (# 37.5) Ap (5mv1)
21
4KM-14142-40-00
Jet, Pilot(#40) Ap (5mv1)
22
137-14143-84-00
Jet, Main #420 Ap (5mv1)
22
137-14143-86-00
Jet, Main #430 Ap (5mv1)
22
137-14143-88-00
Jet, Main #440 Ap (5mv1)
22
137-14143-90-00
Jet, Main (#450) Ap (5mv1)
22
137-14143-92-00
Jet, Main #460 Std (5mv1)
22
137-14143-94-00
Jet, Main Ap (5mv1)
22
137-14143-96-00
Jet, Main #480 Ap (5mv1)
22
137-14143-98-00
Jet, Main (490) Ap (5mv1)
23
5MV-14112-55-00
Valve, Throttle 1 Ap (5mv1)
23
5MV-14112-57-00
Valve, Throttle 1 Std (5mv1)
23
5MV-14112-60-00
Valve, Throttle 1 Ap (5mv1)
24
5ET-1416A-00-00
O-ring (5mv1)
25
5ET-14147-00-00
O-ring (5mv1)
26
51R-14146-00-00
Plate (5mv1)
27
98580-05014-00
Screw, Pan Head (5mv1)
28
2J2-14196-00-00
Pipe, Overflow (5mv1)
29
87M-14137-00-00
Clip (5mv1)
30
5MV-14194-00-00
Ring (5mv1)
31
5MV-24514-00-00
Net, Filter 1 (5mv1)
32
5MV-14146-00-00
Plate (5mv1)
33
5MV-14216-00-00
Screw (5mv1)
