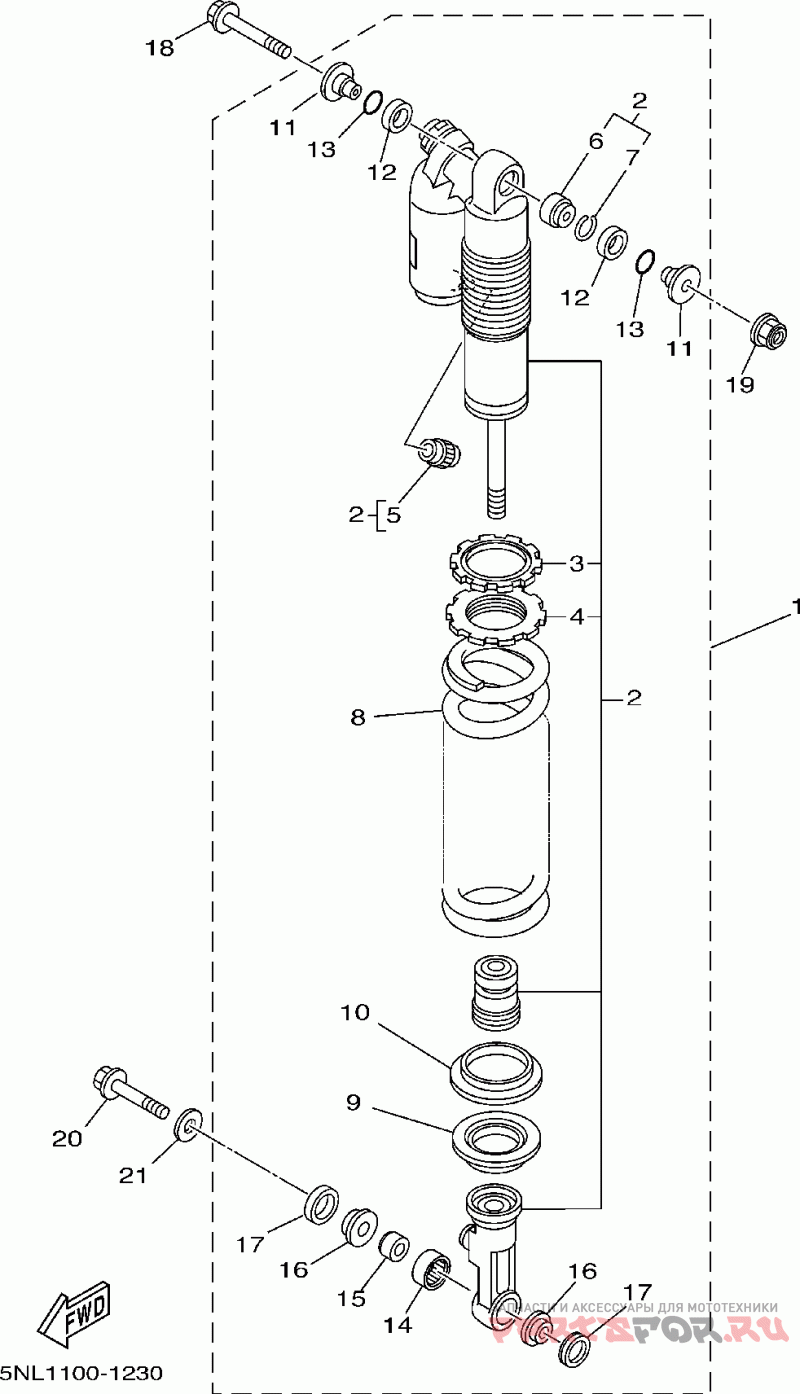

Задняя подвеска

Yamaha (Америка) WR250FN

Yamaha (Америка)
#oem кодцена
1
5PH-22210-00-00
Shock Absorber Assy, (5ph1)
2
5PH-22201-00-00
Damper Sub Assy (5ph1)
3
3SP-22234-00-00
Guide, Spring 3 (5ph1)
4
3SP-22213-00-00
Seat, Spring Upper (5ph1)
5
509-23184-L0-00
Cap, Air Valve (5ph1)
6
4JX-22226-00-00
Bush, Rr Shk Asy (5ph1)
7
5DH-23183-00-00
Circlip (5ph1)
8
5DH-22212-20-00
Spring (5ph1)
9
5DH-22214-00-00
Guide Spring 1 (5ph1)
10
5MV-22224-00-00
Guide, Spring 2 (5ph1)
11
5DH-22253-00-00
Collar, Distance (5ph1)
12
3JE-22475-00-00
Seal, Dust Low. (5ph1)
13
4EW-22474-00-00
Seal, Ring (5ph1)
14
5MV-22176-00-00
Bearing (5ph1)
15
5MV-22184-00-00
Bush (5ph1)
16
5MV-22253-00-00
Collar, Distance (5ph1)
17
5MV-22475-00-00
Seal, Dust (5ph1)
18
90105-10323-00
Bolt, Washer Based (5ph1)
19
95607-10200-00
Nut, Self-locking (5ph1)
20
90105-10614-00
Bolt, Washer Based (5ph1)
21
90201-112U6-00
Washer, Plate (5ph1)
