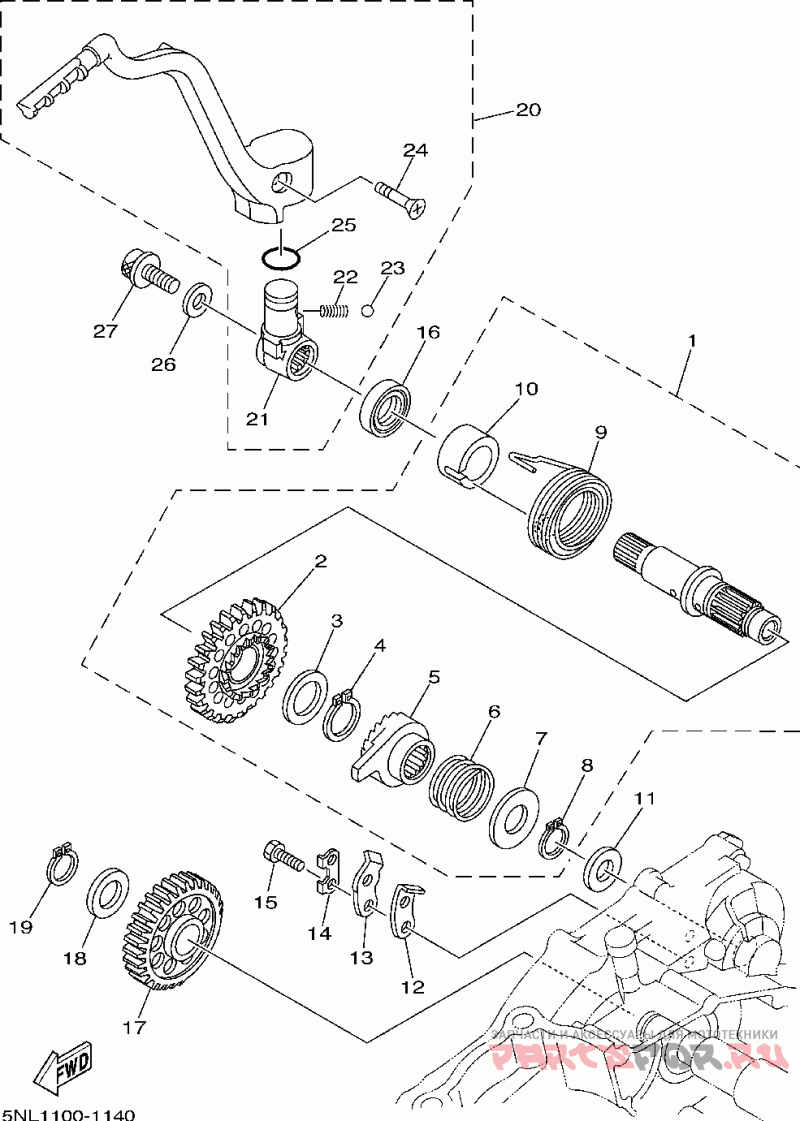

Стартер

Yamaha (Америка) WR250FN

Yamaha (Америка)
#oem кодцена
1
5NL-15601-00-00
Kick Shaft Assy (5ph1)
2
5NL-15641-00-00
Gear, Kick (5ph1)
3
90201-20685-00
Washer, Plate (5ph1)
4
93410-20038-00
Circlip, S-type (5ph1)
5
4GY-15671-00-00
Wheel, Ratchet (5ph1)
6
90501-16107-00
Spring, Compression (5ph1)
7
90201-167P7-00
Washer, Plate (5ph1)
8
99009-16400-00
Circlip, S-type (5ph1)
9
90508-30743-00
Spring, Torsion (5ph1)
10
5NL-15664-00-00
Guide, Spring (5ph1)
11
90201-162H4-00
Washer, Plate (5ph1)
12
2NX-15668-00-00
Stopper (5ph1)
13
2NX-15674-00-00
Guide, Ratchet Whl (5ph1)
14
214-15686-00-00
Washer, Lock (5ph1)
15
97017-06016-00
Bolt, Hexagon (5ph1)
16
93102-18278-00
Oil Seal, Sd-type (5ph1)
17
5NL-15651-00-00
Gear, Kick Idle (5ph1)
18
90201-177G4-00
Washer, Plate (5ph1)
19
99009-17400-00
Circlip (5ph1)
20
5NL-15620-10-00
Kick Crank Assy (5ph1)
21
5NX-15621-01-00
Boss, Kick Crank (5ph1)
22
90501-12081-00
Spring, Compression (5ph1)
23
93507-32031-00
Ball 7/32 (5ph1)
24
90152-06010-00
Screw, Countersunk (5ph1)
25
93210-17570-00
O-ring (5ph1)
26
90201-08326-00
Washer, Plate (5ph1)
27
90109-085E2-00
Bolt (5ph1)
