Бугель (задний рычаг) для мотоциклов Yamaha (Америка) WR250FN (2001)

Москва и регионы России

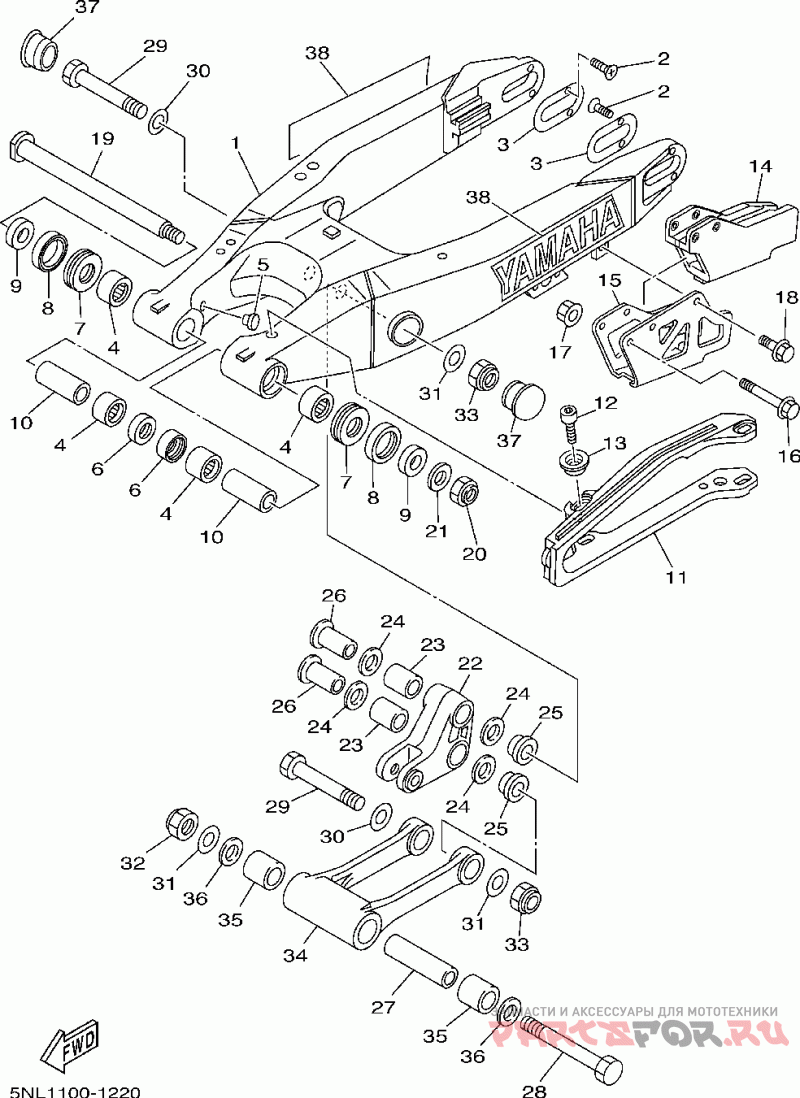

Бугель (задний рычаг)

Yamaha (Америка) WR250FN

Бугель (задний рычаг)

#

oem код

название

цена

1

5MV-22110-00-00

Rear Arm Comp. (5ph1)

Rear Arm Comp. (5ph1)

2

Screw, Flat (5ph1)

Screw, Flat (5ph1)

3

5ET-22355-00-00

Patch (5ph1)

Patch (5ph1)

4

Bearing, Cyl.#17 (5ph1)

Bearing, Cyl.#17 (5ph1)

5

Plug, Spec'l Shape (5ph1)

Plug, Spec'l Shape (5ph1)

6

Oil Seal, Dd-type (5ph1)

Oil Seal, Dd-type (5ph1)

7

Bearing (5ph1)

Bearing (5ph1)

8

Oil Seal, Sdo-type (5ph1)

Oil Seal, Sdo-type (5ph1)

9

Collar (5ph1)

Collar (5ph1)

10

Collar (5ph1)

Collar (5ph1)

11

5MV-22151-00-00

Seal, Guard (5ph1)

Seal, Guard (5ph1)

12

Bolt, Hex Skt Head (5ph1)

Bolt, Hex Skt Head (5ph1)

13

5JG-22156-00-00

Washer, Plate (5ph1)

Washer, Plate (5ph1)

14

4XM-22199-00-00

Support, Chain (5ph1)

Support, Chain (5ph1)

15

4XM-22128-00-00

Cover, Thrust 1 (5ph1)

Cover, Thrust 1 (5ph1)

16

Bolt, Small Flange (5ph1)

Bolt, Small Flange (5ph1)

17

Nut, Flange (5ph1)

Nut, Flange (5ph1)

18

Bolt, Flange(4my) (5ph1)

Bolt, Flange(4my) (5ph1)

19

5DH-22141-00-00

Shaft, Pivot (5ph1)

Shaft, Pivot (5ph1)

20

Nut, Self-locking (5ph1)

Nut, Self-locking (5ph1)

21

Washer, Plate (5ph1)

Washer, Plate (5ph1)

22

5ET-2217A-00-00

Arm, Relay (5ph1)

Arm, Relay (5ph1)

23

Bearing, Cylindrical (5ph1)

Bearing, Cylindrical (5ph1)

24

Oil Seal (5ph1)

Oil Seal (5ph1)

25

Collar (5ph1)

Collar (5ph1)

26

Collar (5ph1)

Collar (5ph1)

27

Collar (5ph1)

Collar (5ph1)

28

Bolt (5ph1)

Bolt (5ph1)

29

Bolt (5ph1)

Bolt (5ph1)

31

Washer, Plate (5ph1)

Washer, Plate (5ph1)

32

Nut, Self-locking (5ph1)

Nut, Self-locking (5ph1)

33

Nut, U (jn5) (5ph1)

Nut, U (jn5) (5ph1)

34

5DH-2217F-01-00

Rod Conn. 1 (5ph1)

Rod Conn. 1 (5ph1)

37

5HD-2135F-00-00

Cover (5ph1)

Cover (5ph1)

38

Emblem, Yamaha (5ph1)

Emblem, Yamaha (5ph1)
