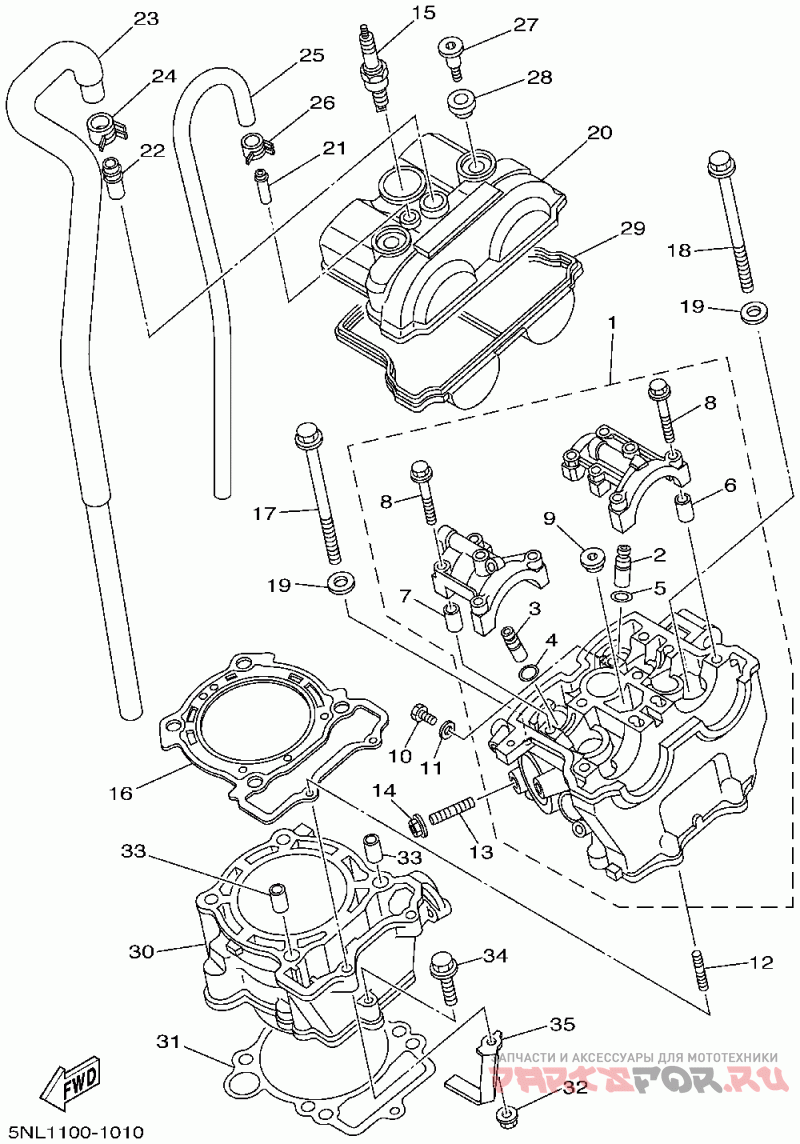

Цилиндр

Yamaha (Америка) WR 250F

Yamaha (Америка)
#oem кодцена
1
5NL-11102-20-00
Cylinder Head Assy (5ph1)
2
5NL-11133-10-00
Guide, Intake Valve (5ph1)
3
5NL-11134-10-00
Guide, Exhaust Valve (5ph1)
4
93440-10153-00
Circlip, Outer (5ph1)
5
93440-07149-00
Circlip, Outer (5ph1)
6
91808-16023-00
Pin, Dowel (5ph1)
8
90105-067A6-00
Bolt, Washer Based (5ph1)
9
90340-12112-00
Plug, Straight Scrw (5ph1)
10
95027-06012-00
Bolt, Flange (4my) (5ph1)
11
90430-06014-00
Gasket (5ph1)
12
90116-06541-00
Bolt, Stud (5ph1)
13
95617-08620-00
Bolt, Stud 3 (5ph1)
14
95707-08500-00
Nut, Flange (jn5) (5ph1)
15
NGK-CR8E0-00-00
Ngk Cr8e 10pk Ur Std(5ph1)
15
NGK-CR9E0-00-00
Ngk Cr9e 10pk Ap(5ph1)
16
5NL-11181-00-00
Gasket, Cylinder Hea (5ph1)
17
90105-09555-00
Bolt, Washer Based (5ph1)
18
90105-09002-00
Bolt, Washer Based (5ph1)
19
90201-096J9-00
Washer, Plate (5ph1)
20
5NL-11191-10-00
Cover, Cylinder Head (5ph1)
21
5BE-11167-00-00
Pipe, Breather 2 (5ph1)
22
371-11167-01-00
Pipe, Breather 2 (5ph1)
23
5BE-11166-00-00
Pipe, Breather 1 (5ph1)
24
90467-14015-00
Clip, Scissor (5ph1)
25
90445-117F2-00
Hose (5ph1)
26
90467-11106-00
Clip (5ph1)
27
90109-066F0-00
Bolt (5ph1)
28
5EA-1111G-00-00
Rubber, Mount 1 (5ph1)
29
5NL-11193-00-00
Gasket, Head Cover 1 (5ph1)
30
5XC-11311-10-00
Cylinder 1 (5ph1)
31
5NL-11351-00-00
Gasket, Cylinder (5ph1)
32
95780-06500-00
Nut, Flange (5ph1)
33
93612-16254-00
Pin, Dowel (5ph1)
34
95027-06035-00
Bolt, Small Flange (5ph1)
35
5JG-11387-00-00
Clamp, Hose 1 (5ph1)
15
CR8-E0000-00-00
Ngk Cr8e 10pk Ur Std(5ph1)
15
CR9-E0000-00-00
Ngk Cr9e 10pk Ap(5ph1)
