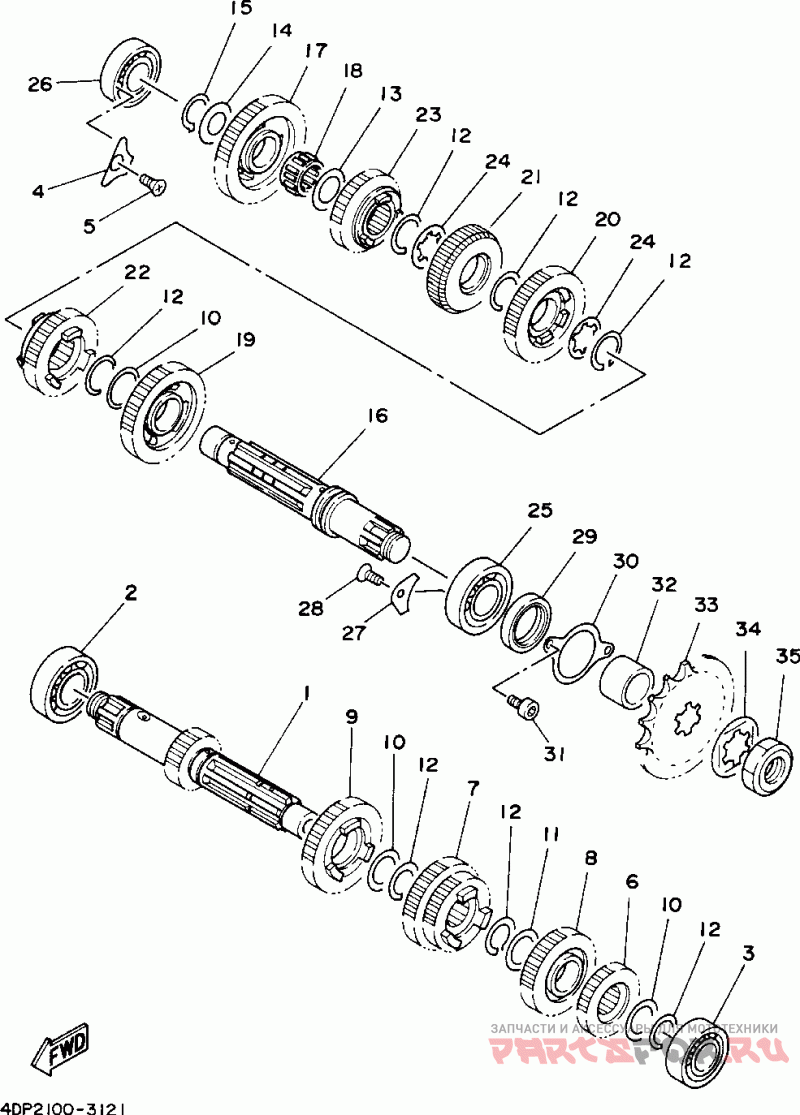

Трансмиссия

Yamaha (Америка) TZ250N

Yamaha (Америка)
#oem кодцена
1
5KE-17411-20-00
Axle, Main Std (usa)
1
5KE-17411-10-00
Axle, Main Ap (usa)
2
93306-20526-00
Bearing (usa)
3
93306-00442-00
Bearing (3xv) (usa)
4
5KE-15381-00-00
Plate, Bearing Cov (usa)
5
90151-06014-00
Screw, Countersunk (usa)
6
4DP-17121-12-00
Gear, 2nd Pinion (usa)
7
5KE-17131-00-00
Gear, 3rd Pinion Std (usa)
7
5KE-17131-10-00
Gear, 3rd Pinion Ap (usa)
8
5F7-17151-01-00
Gear, 5th Pinion (usa)
9
5KE-17161-01-00
Gear, 6th Pinion Std (usa)
9
5KE-17161-11-00
Gear, 6th Pinion Ap (usa)
10
90201-253K0-00
Washer, Plate (59w) Un (usa)
10
90201-256E6-00
Washer, Plate Un (usa)
11
90201-256E4-00
Washer, Plate (usa)
12
93440-25084-00
Circlip, Outer (usa)
13
90201-20276-00
Washer, Plate (usa)
14
90201-206E5-00
Washer, Plate Un (usa)
15
99009-20400-00
Circlip (usa)
16
5KE-17421-00-00
Axle, Drive (usa)
17
5KE-17211-20-00
Gear, 1st Wheel Std (usa)
17
5KE-17211-10-00
Gear, 1st Wheel Ap (usa)
18
93310-22057-00
Bearing, Cyl.#10 (usa)
19
4DP-17221-12-00
Gear, 2nd Wheel (usa)
20
5KE-17231-00-00
Gear, 3rd Wheel Std (usa)
20
5KE-17231-10-00
Gear, 3rd Wheel Ap (usa)
21
5KE-17241-00-00
Gear, 4th Wheel (usa)
22
3YL-17251-00-00
Gear, 5th Wheel (usa)
23
5KE-17261-01-00
Gear, 6th Wheel Std (usa)
23
5KE-17261-11-00
Gear, 6th Wheel Ap (usa)
24
90209-22082-00
Washer, Spec'l Shap Un (usa)
24
5F7-17136-00-00
Washer, Gear Hold 3 Un (usa)
25
93306-20562-00
Bearing (usa)
26
93306-20464-00
Bearing (3yl) (usa)
27
4JT-15381-01-00
Plate, Bearing Cov (usa)
29
93102-32M07-00
Oil Seal, Sd-type (usa)
30
3AK-17471-00-00
Plate, Cover (usa)
31
91317-05012-00
Bolt (usa)
32
90387-25001-00
Collar (usa)
33
93834-14178-00
Sprkt, Drive (14t) Std (usa)
33
93834-15079-00
Sprocket, Drive 15t Ap (usa)
33
93834-16104-00
Sprocket Ap (usa)
34
90215-21239-00
Washer, Lock (usa)
35
90179-20255-00
Nut, Spec'l Shape (usa)
