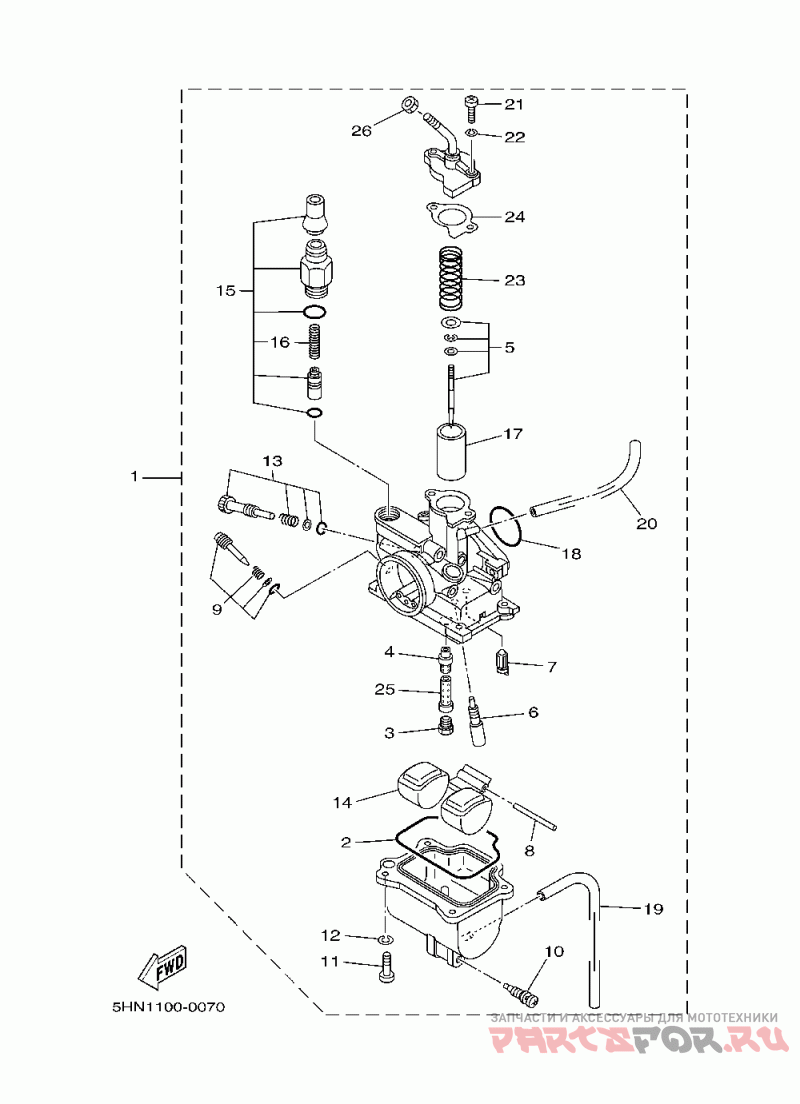

Карбюратор

Yamaha (Америка) TT-R90

Yamaha (Америка)
#oem кодцена
1
5HN-14101-01-00
Carburetor Assy 1 (5hn5)
2
4GL-14239-00-00
Seal (5hn5)
3
18A-14143-18-00
Jet, Main(#90) (5hn5)
4
5HN-14141-13-00
Nozzle, Main (5hn5)
5
5HN-1490J-00-00
Needle, Set (5hn5)
6
3KD-14142-12-00
Jet, Pilot (#12.5) (5hn5)
7
7LG-14150-11-00
Needle Assy (5hn5)
8
353-14186-00-00
Pin, Float (5hn5)
9
4GL-14104-00-00
Air Screw Set (5hn5)
10
12R-14191-00-00
Plug, Drain (5hn5)
11
98507-04014-00
Screw, Pan Hd N15 (5hn5)
12
92907-04100-00
Washer (6ta) (5hn5)
13
4GL-14103-00-00
Throttle Screw Set (5hn5)
14
5DV-14985-00-00
Float (5hn5)
15
4GL-1410A-00-00
Starter Set (5hn5)
16
5HN-14135-00-00
Spring, Plunger (5hn5)
17
5HN-14112-25-00
Valve, Throttle 1 (5hn5)
18
241-14147-00-00
O-ring (5hn5)
19
4GL-14348-00-00
Pipe 1 (5hn5)
20
5HN-14987-00-00
Hose (5hn5)
21
98517-04012-00
Screw, Panhead (5hn5)
23
4NM-14275-00-00
Spring (5hn5)
24
4NM-14198-00-00
Gasket (5hn5)
25
5HN-14148-00-00
Pipe (5hn5)
26
522-14161-00-00
Nut, Cable Adjusting (5hn5)
