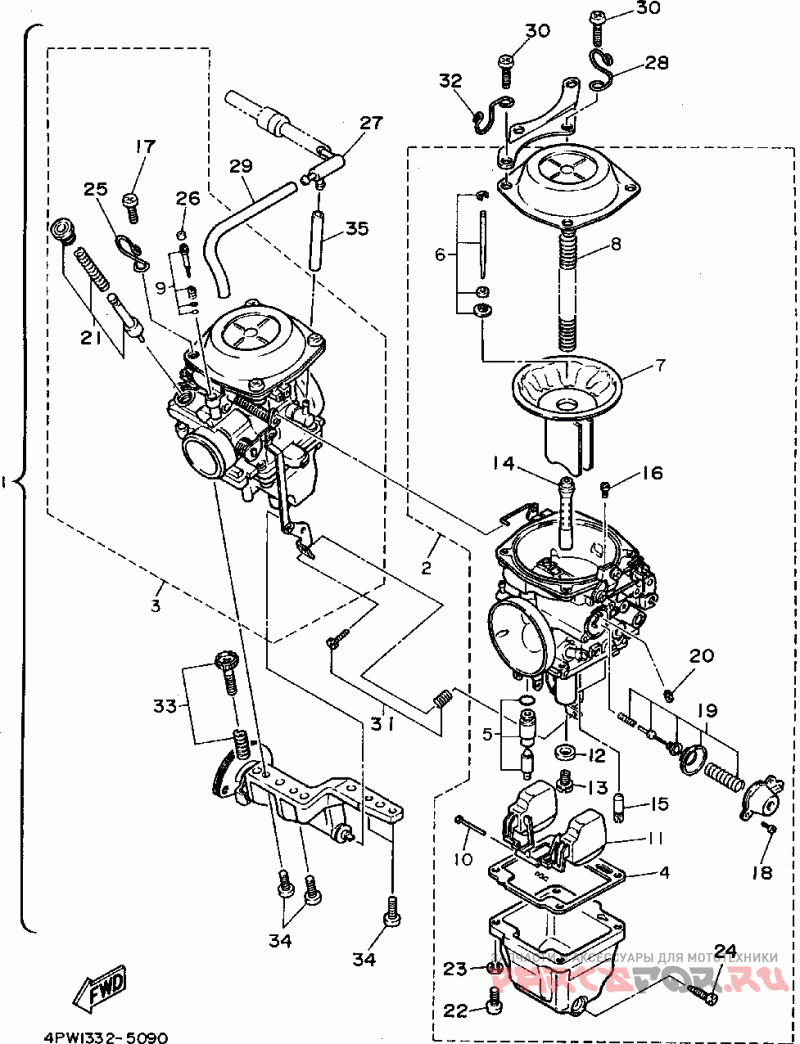

Карбюратор

Yamaha (Америка) XV750HC1/XV750H1

Yamaha (Америка)
#oem кодцена
1
3AL-14900-02-00
Carbureto Asy Noca Non-ca
1
3CM-14900-01-00
Carburetor Asy Ca 1ca Only
2
3CM-14901-01-00
Carburetor Asy 1 1ur Ca Only
3
3CM-14902-01-00
Carburetor Asy 2 1ur Ca Only
4
3CF-14984-01-00
Gskt., Float Chmbr. 1
5
3CF-14107-15-00
Needle Valve Set 1
6
3CF-1490J-00-00
Needle Set 1
7
3CF-14940-00-00
Diaphragm Assy, 1
8
3CF-14933-00-00
Spring, Diaphragm 1
9
12R-14105-00-00
Pilot Screw Set 1
10
537-14186-00-00
Pin, Float 1
11
2VA-14185-00-00
Float 1
12
137-14153-00-00
Washer, Main Jet 1
13
620-1423A-75-00
Jet, Main (122.5) 1
14
3CF-14141-94-00
Nozzle, Main 1
15
4G0-14142-40-00
Jet, Pilot #40 1
16
3G2-14231-12-00
Jet, Main #60 1
17
98517-05010-00
Screw, Pan Head(3sx 4
18
98580-04008-00
Screw, Pan Head 2
19
3CF-1490H-00-00
Diaphragm Set, 5 1
20
1HX-14231-28-00
Jet, Main (#140) 1
21
3CF-1410A-00-00
Starter Set 1
22
98580-05014-00
Screw, Pan Head 4
23
92990-05100-00
Washer, Spring 4
24
12R-14191-00-00
Plug, Drain 1
25
2JU-14937-00-00
Clip 1
26
3F9-14118-00-00
Plug 1
27
3CF-14251-00-00
Nipple 1
28
3CF-14937-00-00
Clip 1
29
3CG-14197-00-00
Pipe, Airvent 1
31
3CF-1490K-00-00
Stop Screw Set 1
32
3CF-14919-00-00
Clip 1
33
3CF-14103-01-00
Throttle Screw Set 1
35
3CF-14197-00-00
Pipe 1
