Подножки для мотоциклов Yamaha (Америка) XV750F/XV750FC (1994)

Москва и регионы России

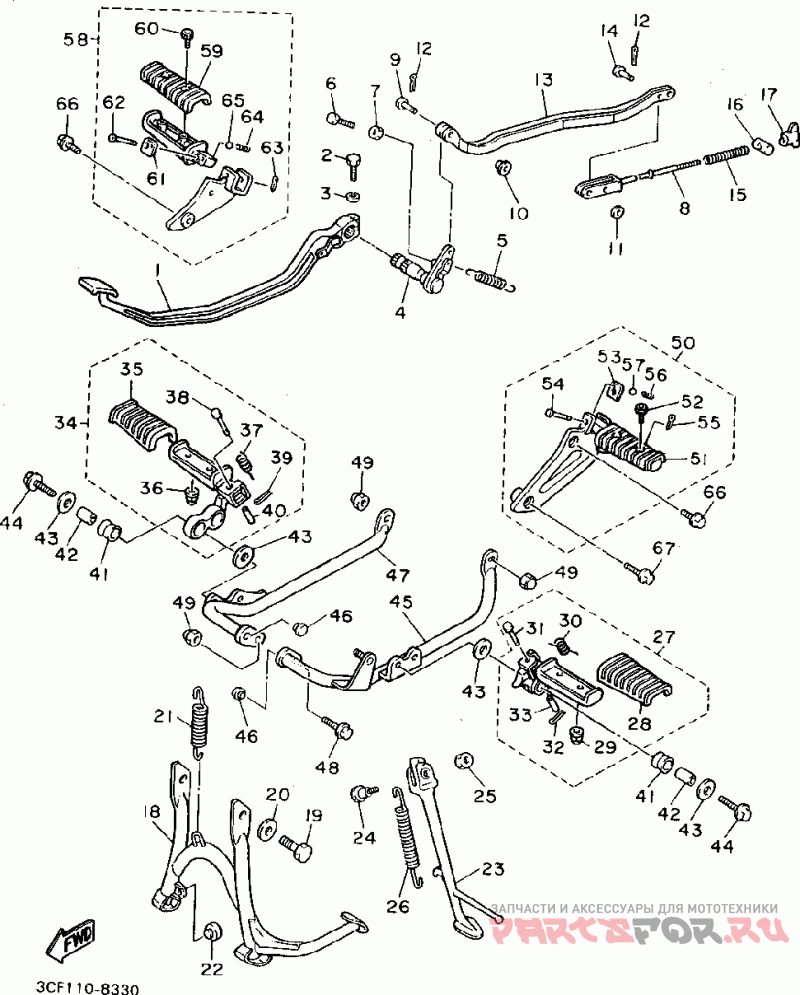

Подножки

Yamaha (Америка) XV750F/XV750FC

Подножки

#

oem код

название

цена

1

3CF-27211-00-93

Pedal, Brake 1 Chrome Plated

Pedal, Brake 1 Chrome Plated

2

Bolt 1

Bolt 1

3

Washer 1

Washer 1

4

42X-27212-01-00

Shaft, Brake Pedal 1

Shaft, Brake Pedal 1

5

Spring, Tension 1

Spring, Tension 1

6

Bolt 1

Bolt 1

7

Nut, Hexagon 1

Nut, Hexagon 1

8

3CF-27231-01-00

Rod, Brake 1

Rod, Brake 1

9

Pin, Clevis 1

Pin, Clevis 1

10

Spacer 1

Spacer 1

11

Washer 2

Washer 2

12

Pin, Cotter 3

Pin, Cotter 3

13

3CF-27241-00-00

Rod, Joint 1

Rod, Joint 1

14

Pin, Clevis 2

Pin, Clevis 2

15

Spring, Compression 1

Spring, Compression 1

16

Pin, Spec'l Shape 1

Pin, Spec'l Shape 1

17

Nut, Wing 1

Nut, Wing 1

18

42X-27111-00-R4

Stand, Main 1 Black

Stand, Main 1 Black

19

Bolt, Hexagon (2k4) 2

Bolt, Hexagon (2k4) 2

20

Washer, Plate 2

Washer, Plate 2

21

Spring, Tension 1

Spring, Tension 1

22

371-27114-00-00

Stopper, Main Stand 1

Stopper, Main Stand 1

23

42X-27311-00-93

Stand, Side 1 Chrome Plated

Stand, Side 1 Chrome Plated

24

Bolt 1

Bolt 1

25

Nut 1

Nut 1

26

Spring, Tension 1

Spring, Tension 1

27

3CF-27410-00-93

Frt Footrest Asy L Chrome 1 Plated

Frt Footrest Asy L Chrome 1 Plated

28

1NH-27413-00-00

Cover, Footrest 1

Cover, Footrest 1

29

Nut, U 2

Nut, U 2

30

Spring, Torsion 1

Spring, Torsion 1

31

Pin, Clevis 1

Pin, Clevis 1

32

Pin, Cotter 1

Pin, Cotter 1

33

Collar 1

Collar 1

34

1RM-27420-00-93

Frt Footrest Asy R Chrome 1 Plated

Frt Footrest Asy R Chrome 1 Plated

36

Nut(crown) 2

Nut(crown) 2

41

4X7-27414-00-00

Damper, Footrest 4

Damper, Footrest 4

42

Collar 4

Collar 4

44

Bolt 4

Bolt 4

45

3CF-27471-02-00

Bar, Footrest 1 1

Bar, Footrest 1 1

46

Plug, Spec'l Shape 2

Plug, Spec'l Shape 2

47

3CF-27472-02-00

Bar, Footrest 2 1

Bar, Footrest 2 1

48

Bolt, Washer Based 1

Bolt, Washer Based 1

49

Nut, Crown 3

Nut, Crown 3

50

1RM-27430-02-00

Rear Footrest Asy1 1

Rear Footrest Asy1 1

51

1NH-27433-00-00

Cover, Rr Footrest 1

Cover, Rr Footrest 1

52

Bolt, Button Head 2

Bolt, Button Head 2

53

1HX-27437-00-00

Washer, Special 1

Washer, Special 1

54

Pin, Clevis 1

Pin, Clevis 1

55

Pin, Cotter 1

Pin, Cotter 1

56

Spring, Compression 1

Spring, Compression 1

57

Ball 1/4 1

Ball 1/4 1

58

1RM-27440-01-00

Rr Footrest Asy 2 1

Rr Footrest Asy 2 1

66

Bolt, Flange (2uj) 3

Bolt, Flange (2uj) 3

67

Bolt, Flange (3jpe) 1

Bolt, Flange (3jpe) 1
