Цепь механизма газораспределения для мотоциклов Yamaha (Америка) XV750F/XV750FC (1994)

Москва и регионы России

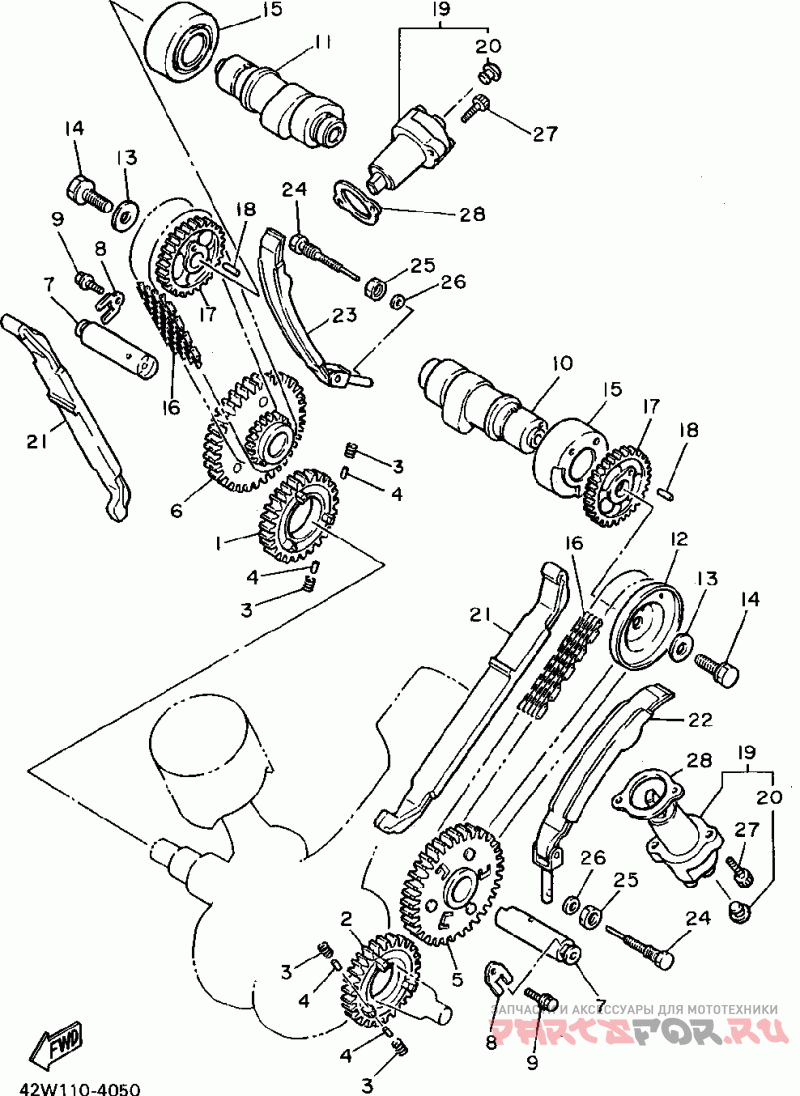

Цепь механизма газораспределения

Yamaha (Америка) XV750F/XV750FC

Цепь механизма газораспределения

#

oem код

название

цена

1

4X7-11536-00-00

Gear, Drive (35t) 1

Gear, Drive (35t) 1

2

4X7-11534-00-00

Gear, Breaker Drive 1

Gear, Breaker Drive 1

3

Spring, Compression 12

Spring, Compression 12

4

Pin, Dowel 12

Pin, Dowel 12

5

4X7-11540-02-00

Cm Chm Spbt Asy 1 1

Cm Chm Spbt Asy 1 1

6

4X7-11550-01-00

Cam Chain Sprkt As 1

Cam Chain Sprkt As 1

7

5EL-12247-00-00

Shaft, Tensioner 2

Shaft, Tensioner 2

8

Washer, Spec'l Shap 2

Washer, Spec'l Shap 2

9

Bolt, Washer Based 2

Bolt, Washer Based 2

10

42X-12171-00-00

Camshaft 1 1

Camshaft 1 1

11

42X-12181-00-00

Camshaft 2 1

Camshaft 2 1

12

42X-11145-00-00

Plate, Breather 2 1

Plate, Breather 2 1

13

Washer, Plate 2

Washer, Plate 2

14

Bolt 2

Bolt 2

15

Bush, Solid 2

Bush, Solid 2

16

Chain, Cam 2

Chain, Cam 2

17

4X7-12176-00-00

Sprocket, Cam Chain 2

Sprocket, Cam Chain 2

18

Pin, Dowel 2

Pin, Dowel 2

19

4X7-12210-01-00

Tensnr Asy, Cam Chn 2

Tensnr Asy, Cam Chn 2

20

Plug, Spec'l Shape 1

Plug, Spec'l Shape 1

21

4X7-12231-00-00

Guide, Stopper 1 2

Guide, Stopper 1 2

22

4X7-12241-00-00

Guide, Stopper 2 1

Guide, Stopper 2 1

23

4X7-12221-00-00

Guide, Stopper 3 1

Guide, Stopper 3 1

24

Bolt 2

Bolt 2

25

Nut 2

Nut 2

26

Washer 2

Washer 2

27

Bolt (3dm) 4

Bolt (3dm) 4

28

4DW-12213-00-00

Gasket, Tensnr Case 2

Gasket, Tensnr Case 2
