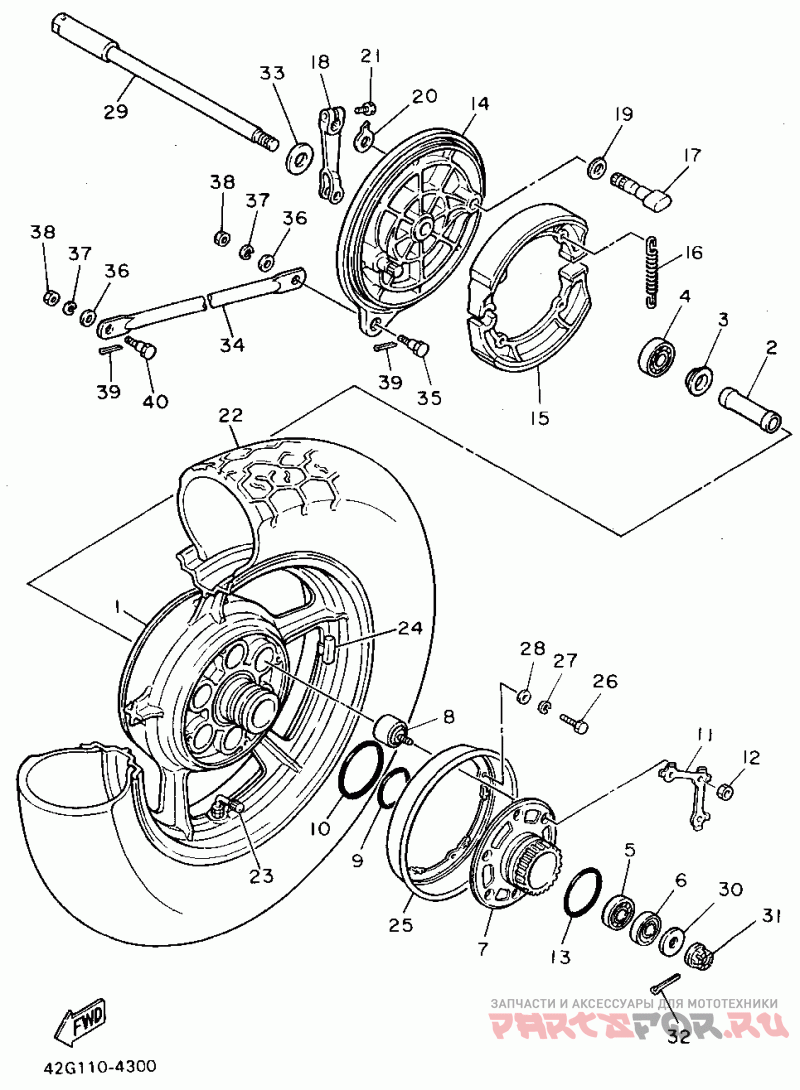

Заднее колесо

Yamaha (Америка) XV750F Virago 750

Yamaha (Америка)
#oem кодцена
1
42H-25338-01-P1
Wheel, Cast Rear 1 Light Yellowish
2
90560-17249-00
Spacer 1
3
146-25315-00-00
Flange, Spacer 1
4
93306-30317-00
Bearing (4hm) 1
5
93306-20310-00
Bearing 1
7
16G-25366-01-00
Clutch, Hub 1
8
42H-25364-00-00
Damper 6
9
93210-48530-00
O-ring 1
10
93210-59531-00
O-ring 1
11
16G-25412-00-00
Washer 2
12
95704-10500-00
Nut, Flange 6
13
93210-57428-00
O-ring 1
14
42H-25321-02-00
Plate, Brake Shoe 1
15
3DR-W253E-00-00
Brake Shoe Kit 1
16
90507-20002-00
Spring, Tension 2
17
4H7-25351-00-00
Camshaft 1
18
3CF-25355-00-00
Lever, Camshaft 1
19
90201-15797-00
Washer, Plate 1
20
4H7-2533A-02-00
Plate, Indicator 1
21
90101-06291-00
Bolt 1
22
94114-156U0-00
140/90-15 70h Bs G53 1 Bridge- Stone
23
93900-00025-00
Valve, Rim 1 Bridge Stone
24
5MT-25398-00-00
Balancer, Wheel 1 Un
24
5MT-25398-10-00
Balancer, Wheel 1 Un
24
5MT-25398-20-00
Balancer, Wheel 1 Un
25
16G-25327-00-00
Cover, Plate 1
26
97027-05020-00
Bolt (3jk) 4
27
92990-05100-00
Washer, Spring 4
28
92990-05600-00
Washer 4
29
42X-25381-00-00
Axle, Wheel 1
30
90201-14022-00
Washer, Plate 1
31
90171-14031-00
Nut, Castle 1
32
91490-30030-00
Pin, Cotter 1
33
4H7-25377-00-00
Collar, Wheel 1
34
42X-25371-02-00
Bar, Tension 1
35
90109-08406-00
Bolt 1
36
92990-08600-00
Washer 2
37
92990-08100-00
Washer, Spring 2
38
95380-08700-00
Nut 2
39
91490-20025-00
Pin, Cotter 2
40
90109-08368-00
Bolt 1
