Drive train, reverse drive asm., upper - v12sw36/aw36 all options для мотоциклов Victory V12SW36/AW36 VISION/ANESS ALL OPTIONS (2012)

Москва и регионы России

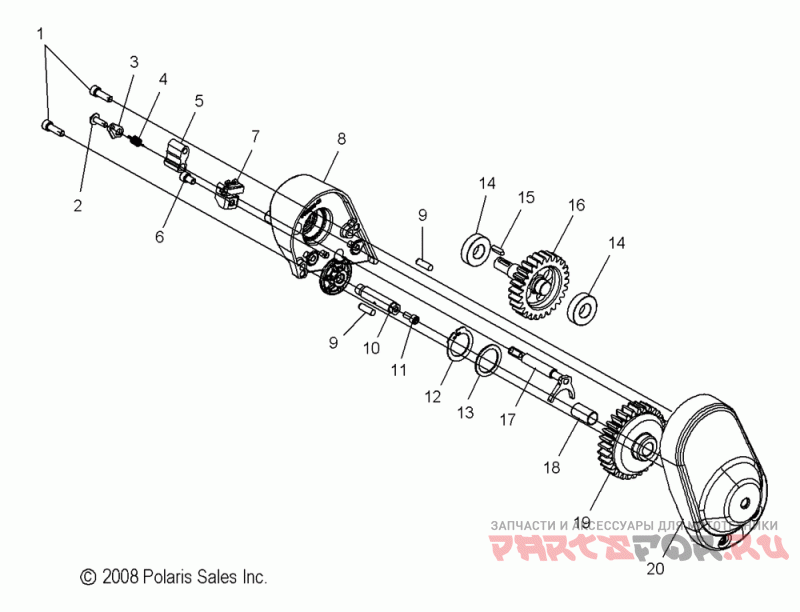

Drive train, reverse drive asm., upper - v12sw36/aw36 all options

Victory V12SW36/AW36 VISION/ANESS ALL OPTIONS

Drive train, reverse drive asm., upper - v12sw36/aw36 all options

#

oem код

название

цена

Asm-upper Rdm

Asm-upper Rdm

1

Винт M6x20

Винт M6x20

2

Scr-hxwshrhd, M5x16

Scr-hxwshrhd, M5x16

4

Spring-return, Idler, Rdm

Spring-return, Idler, Rdm

5

Riser-shift Fork, Rdm

Riser-shift Fork, Rdm

6

Винт (отпускается по 10шт.)

Винт (отпускается по 10шт.)

7

Asm-lockout Switch, Rdm

Asm-lockout Switch, Rdm

8

Housing-case, Inner ([incl. 9] )

Housing-case, Inner ([incl. 9] )

9

Pin, Dowel, 6 X 20

Pin, Dowel, 6 X 20

11

Screw, Sochd, M5x12

Screw, Sochd, M5x12

12

Ring-rtng, Ext, 25x1.2, 0600096

Ring-rtng, Ext, 25x1.2, 0600096

13

Wshr-fl, 26x34x1.5, 0600090

Wshr-fl, 26x34x1.5, 0600090

14

Bearing-sealed, 15x32x9

Bearing-sealed, 15x32x9

15

Key-rnd End, 4x4x16, Din 6885a

Key-rnd End, 4x4x16, Din 6885a

16

Gear-pinion, 26t, Rdm

Gear-pinion, 26t, Rdm

17

Weldment-shift Fork, Rdm

Weldment-shift Fork, Rdm

19

Gear-idler, 30t, Rdm ([incl. 18] )

Gear-idler, 30t, Rdm ([incl. 18] )

20

Housing-cover, Outer, Mach

Housing-cover, Outer, Mach
