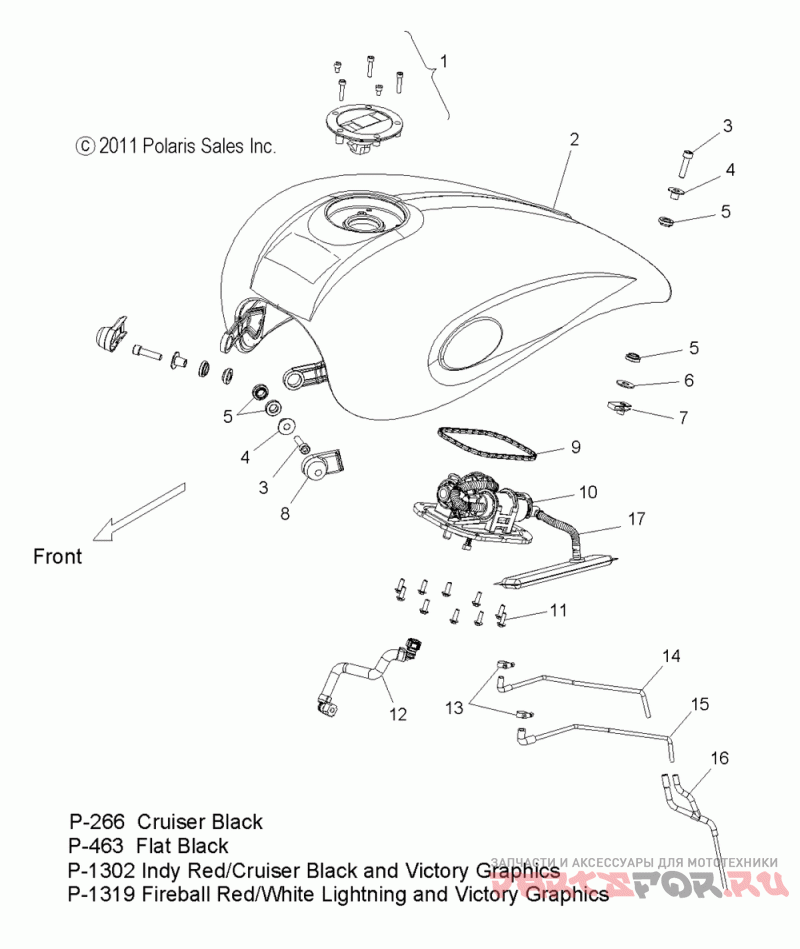

Body, fuel tank - v12hs36/ha36 all options

Victory V12HS36/HA36 HAMMER S/8 BALL ALL OPTIONS

Victory
#oem кодцена
1
4012376-266
Asm-ign Switch/fuel Cap, Blk
1
4012377-266
Asm-ign/fuel/fork Lk, Intl, Blk ([int'l] )
1
7518086
Scr-sochd, M5x25
1
7517845
Scr-sochd, M5x12
1
7517515
Screw, Sochd, M5x8
2
1018004-1319
Wld-tnk, Fl, Nspne, Frd/whlgt/gfx
2
1018004-266
Wld-tank, Fuel, No Spine, Blk
2
1018004-463
Wld-tank, Fuel, No Spine, F Blk
2
1018004-1302
Wld-tank, Fuel, Nspne, Rd/blk/gx
3
7517525
Screw, Sochd, M10x40
4
5136665
Bshg-flg, 10.2x14x19.5
5
5414144
Isolator-tank, Csr
6
7556260
Wshr-flat, M10x30x2, Zpc
7
7547233
Nut-u, M10x1.5, Long
8
5412414
Cover-fuel Tank Mnt, Lh
8
5412415
Cover-fuel Tank Mnt, Rh
9
5413346
Seal-fuel, Molded
10
2521169
Pump-fuel, Csr
11
7518923
Scr-flghd, M5x16, 06000086
12
5414150
Line-fuel, Tnk To Rail, Csr
13
7081151
Clamp-hose, 9-14 Mm Clamp Dia
14
5435764
Line-water Drain
15
5437376
Line-fuel Vent, Low Perm
16
5435771
Line-water/fuel To Ground
17
2520909
Asm-filter, Fuel
