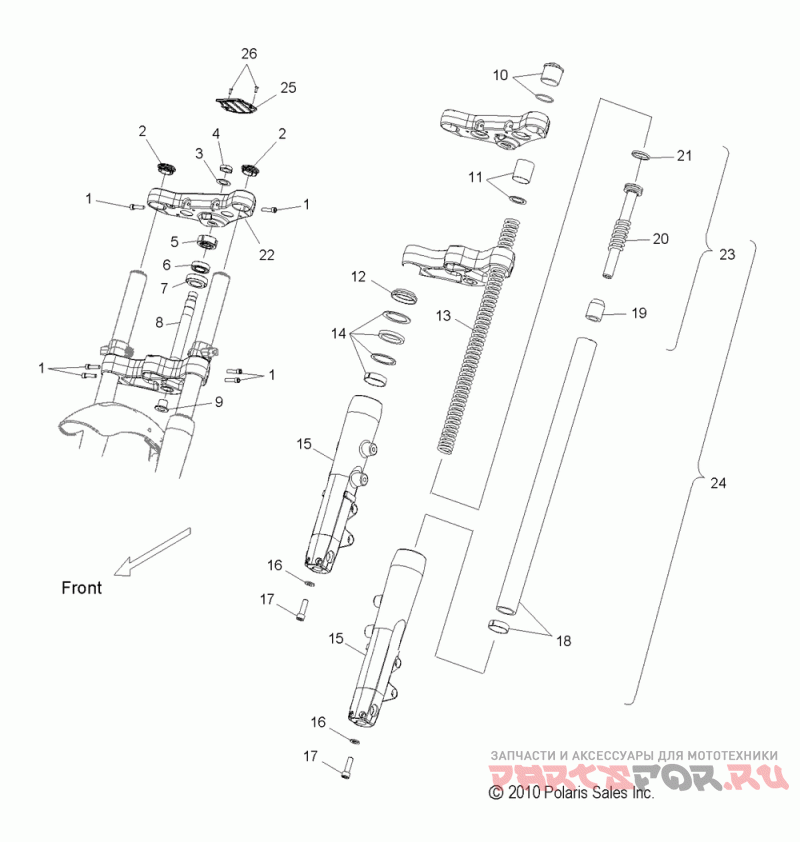

Suspension, front forks - v12gb36/ga36/zb36 all options

Victory V12GB36/GA36/ZB36 VEGAS/8 BALL/ZNESS ALL OPTIONS

Victory
#oem кодцена
1
7517361
Винт
2
5132481-156
Cap-swingarm Pivot, Chr
3
7556246
Washer-22.5x36x1.5
4
5134148
Nut-top, Triple, Clamp
5
5631935
Nut-steering Head
6
3514549
Bearing, Ball, 47x25x12, 6005-2rs
7
3514416
Bearing-ndl, 30x55x17, Sealed
9
5412473
Cap-steering Stem, 22x24
10
2202507
Kit-cap W/o Ring, Kyb, 43mm
10
5412452
O-ring, Cap, Kyb, 43mm
11
2202499
Kit-spacer, Preload, Kyb, Mm
13
7042270
Spring-comp, 6.0
14
2202505
Kit-seals Bushing, Kyb, 43mm ([incl. 12] )
15
2202503
Kit-slider Leg, Rh, Sil, 43mm ([incl. 12, 14] )
15
2202502
Kit-slider Leg, Lh, Silver ([incl. 12, 14] )
16
7556390
Wshr-dmpr Rod, Kyb
17
7519082
Болт
18
2202504
Kit-asm Tube, Stantion Kyb, 43mm ([incl. 16, 17, 19] )
21
5435151
Ring-damper Piston, Kyb, 43mm
22
5135825-463
Brkt-upr, 43mm, Mach, Fblk ([incl. 1] )
23
2202506
Kit-damper Rod ([incl. 20, 21] )
24
1821285-411
Asm-fork Leg, 43mm, Lh, 03, Bru ([incl. 10-21] )
24
1821286-411
Asm-fork Leg, 43mm, Rh, 03, Bru ([incl. 10-21] )
24
1821285-067
Asm-fork Leg, 43mm, Lh, 03, Blk ([incl. 10-21][8 Ball] )
24
1821286-067
Asm-fork Leg, 43mm, Rh, 03, Blk ([incl. 10-21][8 Ball] )
25
5438513-156
Cover-triple Clamp, Chr
26
7518144
Scr-phovalhd, M4x12, Ss
