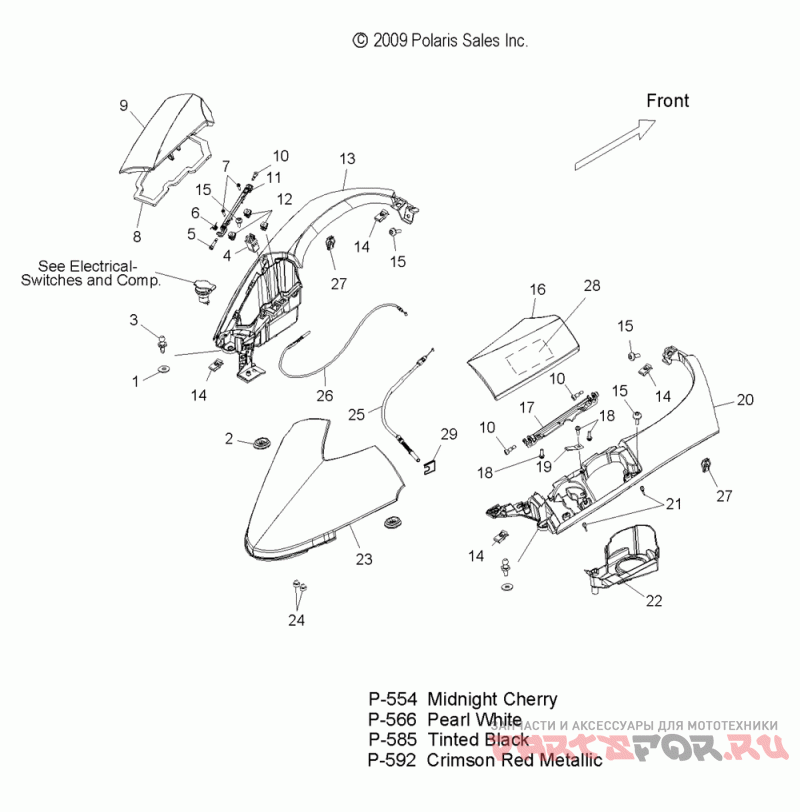

Body, tank cover - v11sw36/sa36/aw36 all options

Victory V11SW36/SA36/AW36 VISION ALL OPTIONS

Victory
#oem кодцена
1
7556064
Шайба
2
5433833
Grommet-side Cover
3
5135170
Stud-ball, Damper
4
2633518
Latch-storage, Push
5
7518777
Scr-m6/m5, 20, Hex, Soc, Shldr
6
7043317
Spring-storage, Torsion
7
7518590
Scr-torx Hd, M4.2x19, 0600129
8
5521726
Seal-lid, Storage
9
5437268-585
Panel-door, Storage, Lh, T Blk
9
5437268-592
Panel-door, Storage, Lh, Crimson
9
5437268-554
Panel-door, Storage, Lh, Cherry ([int'l] )
9
5437268-566
Panel-door, Storage, Lh, P White
10
7518776
Scr-m6/m5, 10, Hex, Soc, Shldr
11
5632191
Brkt-pivot, Lh
12
7547324
Nut-pal Nut, M4
13
5438102-554
Panel, Tank Cover, Lh, Chry ([incl. 27][int'l] )
13
5438102-566
Panel, Tank Cover, Lh, P White ([incl. 27] )
13
5438102-585
Panel, Tank Cover, Lh, T Blk ([incl. 27] )
13
5438102-592
Panel, Tank Cover, Lh, Crimson ([incl. 27] )
13
5813181
Mat-storage, Tank Cover
14
7081305
Clip-u Speed Nut
15
7518484
Scr-m6x1.0, 15, Hex, Butt, Shld
16
5436417-554
Panel-door, Fuel, Rh, Cherry ([int'l] )
16
5436417-566
Panel-door, Fuel, Rh, Pearl White
16
5436417-585
Panel-door, Fuel, Rh, T Blk
16
5436417-592
Panel-door, Fuel, Rh, Crimson
17
5632192
Brkt-pivot, Rh
18
7518641
Scr-wshrpnhd, 10-16, Hilo
19
5249661
Spring-steel
20
5436416-554
Panel-tank Cover, Rh, Cherry ([incl. 27][int'l] )
20
5436416-566
Panel-tank Cover, Rh, P White ([incl. 27] )
20
5436416-585
Panel-tank Cover, Rh, Blk ([incl. 27] )
20
5436416-592
Panel-tank Cover, Rh, Crimson ([incl. 27] )
21
5413033
Bumper-grommet, 7mm Dia
22
5412946
Liner-fuel, Tray
23
5436418-554
Panel-cover, Airbox, Cherry ([int'l] )
23
5436418-566
Panel-cover, Airbox, Pearl White
23
5436418-585
Panel-cover, Airbox, T Blk
23
5436418-592
Panel-cover, Airbox, Crimson
24
5411323
Bumper, Grommet
25
7081338
Cable-fuel Release
26
7081337
Cable-storage Release
27
7081303
Clip-trim
29
7710648
Clip-cable Tower
