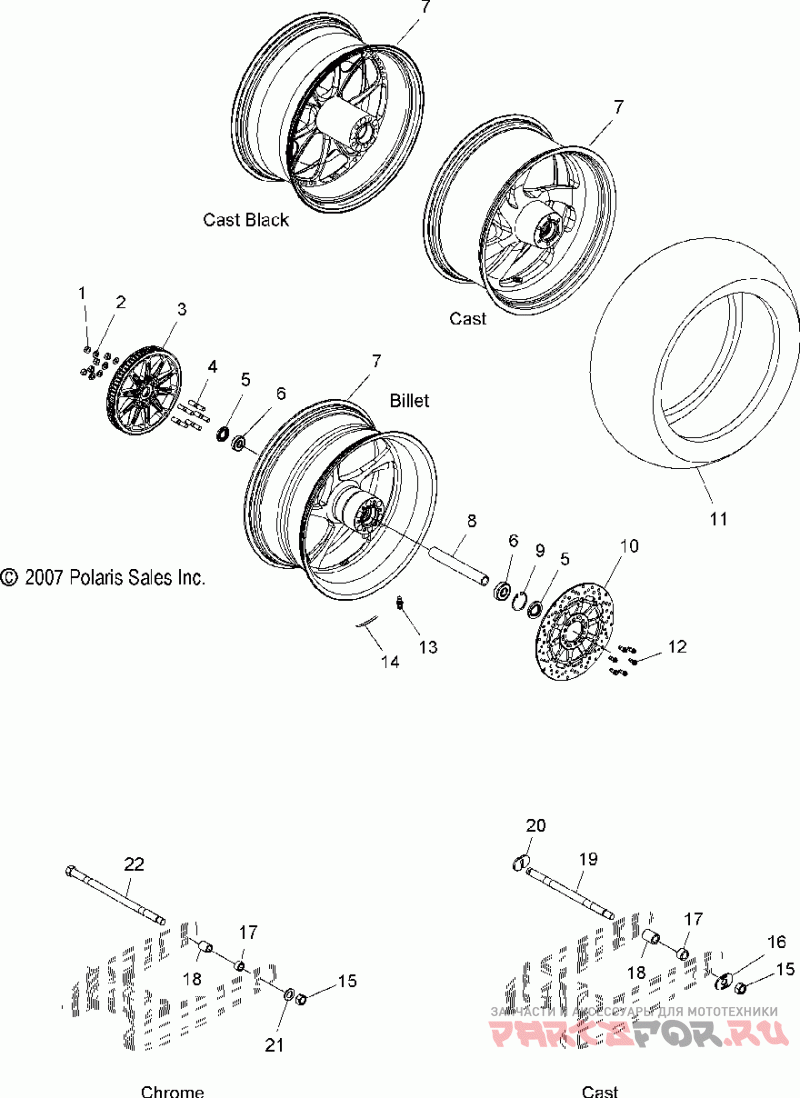

Wheels, rear - v08hb26/hs26 all options

Victory V08HB26/HS26 HAMMER ALL OPTIONS

Victory
#oem кодцена
1
7547232
Nut-hexhd, M12, Din980v
2
7556287
Washer-fl, 13x2.5
3
1332399-385
Asm-sprocket, Driven, 70t, 07, Slv ([hammer] )
3
1332399-463
Asm-sprkt, Driven, 70t, Fblk ([hammer S] )
4
7518311
Stud-m12x28x28, 8.8
5
3610094
Seal-30x52x7
6
3514405
Bearing-ball, 20mmx52mmx15mm
7
1521386-405
Asm-whl, Rr, 18x8.5, Blt, Pol ([incl. 5-10, 13, 14] )
7
1521026-266
Asm-whl, Rr, 18x8.5, Blk ([cast][incl. 5-10, 13, 14] )
7
1520864-409
Asm-whl, Cast, Rr, 18x8.5, Clr ([incl. 5-10, 13, 14] )
8
5334450
Spacer-brg, Rr Wheel, Mid, 18x8.5
9
7710526
Ring-rtng, Int, 52x2.0
10
1911463-385
Rotor, Brake, 5mm, Slv ([hammer] )
10
1911463-266
Rotor, Brake, 5mm, Blk ([hammer S] )
11
5412522
Tire-rear 250/40r18__da0
12
7518661
Scr-hxflghd, M8x25, Rotor Bolt
13
1520995
Valve-rim, Chr, 8mm (ness)
13
1520232
Клапан обода
14
1520618
Weight-balance, 1/4 Oz, Slv (10)
15
7547226
Nut-hex, Fujilok, M18x1.5
16
5248452-236
Washer-indicator, Axle, Znc
17
5631479
Spacer-brg, Rr Wheel, Lh, Pm
18
5631581
Spacer, Rh, Rear Wheel, 250, Pm
19
5135747
Axle-rear, 250
20
5248599
Retainer-axle, Rear
21
7550001
Washer-fl, 21x37x3.0, 0600090
22
1014584
Rear Wheel Spindle
10
1911624-385
Rotor, Brake, 5mm, Slvr ([hammer] )
10
1911624-266
Rotor, Brake, 5mm, Blk ([hammer S] )
