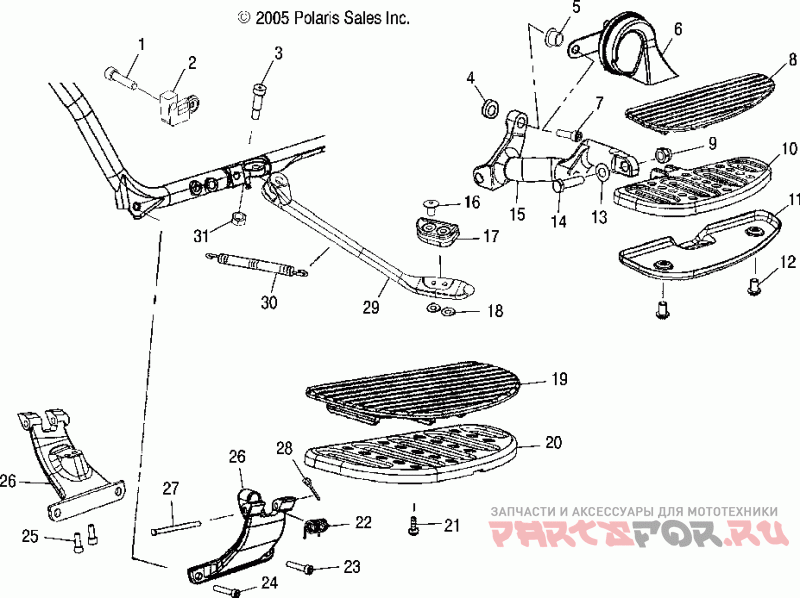

Floor board and side stand - v06tb16/all options

Victory V06TB16CA TOURING CRUISER ALL OPTIONS

Victory
#oem кодцена
1
7517525
Screw, Sochd, M10x40
2
5631599
Brkt-sidestand, Spring Short
3
7517404
Винт
4
5133113
Spacer-lwr, Subframe
5
5132658
Проставка
6
4010688
Horn-trumpet, 3 Piece Brkt
7
7518123
Scr-sochd, M10x25, 0600084
8
5411871
Pad-floorboard, Passenger, Lh
8
5411872
Pad-floorboard, Passenger, Rh
9
7547039
Гайка
10
5133098
Floorboard-pass, Lh
10
5133099
Floorboard-pass, Rh
11
5245624-425
Cover-floorboard, Pass, Lh, Ballb
11
5245625-425
Cover-floorboard, Pass, Rh, Bsllb
12
7517406
Винт
13
7556046
Washer, Spring, Ss.(10)
14
7517993
Scr-hexhd, M10x40, 0600088
15
5246161-067
Support-footrest, Pass, Lh, Blk
15
5246162-067
Support-footrest, Pass, Rh, Blk
16
7661064
Rivet, Truss, Hd, Ss (50)
17
5412662
Pad-side Stand
18
7556121
Washer-fl, 6.0x0.8(10)
19
5412025
Pad-floorboard, Lh
19
5412026
Pad-floorboard, Rh
20
5132228
Floorboard-lh, Driver
20
5132229
Floorboard-rh, Driver
21
7517694
Винт (отпускается по 10шт.)
22
7041623
Spring, F'board Support
24
7518131
Scr-sochd, M10x35, 0600084
25
7517410
Screw, Sochd, M8x20
26
5132429-067
Support, Flrbrd, Lh, Mach, Blk
26
5132430-067
Support-floorboard, Rh, Mach, Blk
26
5132429-385
Support-floorboard, Lh, Mach, Slv
26
5132430-385
Support-floorboard, Rh, Mach, Slv
27
7661095
Pin-floorboard Support (10)
28
7661094
Pin-cotter, 3/32"x5/8"
29
1013062
Side Stand, Asm. ([incl. 16, 17, 18] )
30
7043056
Spring-sidestand
31
7547239
Nut-m10x1.5, Zpc, 0600100
20
5132228-156
Floorboard-lh, Driver, Chrome **
