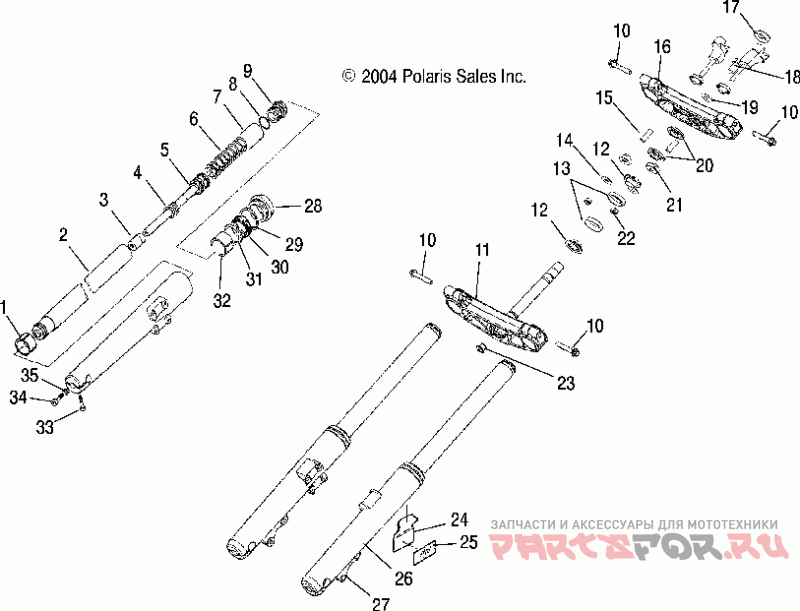

Forks, front - v05tb16/all options

Victory V05TB16CA TOURING CRUISER ALL OPTIONS

Victory
#oem кодцена
1
3585714
Bushing, Lower
2
5133282
Tube-stanchion, 45mm
3
5131498
Foot, Buffer
4
7041624
Пружина
5
2202093
Kit-damper Rod/segment, 45mm
6
7042331
Spring-comp, 6.4 N/mm, Tc
7
5521680
Spacer-preload
8
5411330
O-ring, Fork
9
5131502
Plug, Fork
10
7517944
Scr-hex Flghd, M10x60, 0600086
11
1820926
Asm-triple Clamp, Lower
12
3554510
Bearing, Tpr.rlr, Sealed
13
3554507
Обойма подшипника
14
7556260
Wshr-flat, M10x30x2, Zpc
15
5134129
Spcr-isolator
16
5133914
Clamp-triple, Iso, Mach
17
1013570
Weld-cap, Steering Post
18
5133050
Bolt-steering Post, Cap
19
7556187
Wshr-fl, 19x34x3, 0600090
20
5631935
Nut-steering Head
21
5412272
Isolator-hbar
22
7547268
Nut-nyloc M10x1.5, Ref
23
5412121
Plug-steering Post
24
5433864
Base-reflector, Front, Lh
24
5433748
Base-reflector,front, Rh
25
5433878
Reflector-rect, Amber W/blk Frm
26
2202092
Kit-slider Unit, Lh, 45mm, Slvr ([incl. 29-32] )
27
2202091
Kit-slider, Rh, 45mm, Slvr ([incl. 29-32] )
28
5133283
Cap-dust, 45mm
28
3610086
Seal-cap, Dust, 45mm
29
5211827
Кольцо
30
3610068
Сальник
31
5131504
Cap, Oilseal
32
3585715
Bushing, Upper
33
1500168
Винт
34
1500169
Винт
35
3610069
Washer, Oilseal
1821426
Fork Leg Asm, 45mm, Lh ([incl. 1-9, 26-35] )
1821427
Fork Leg Asm, 45mm, Rh *** ([incl. 1-9, 26-35] )
2872184
Victory Fork Oil Qt(6)
