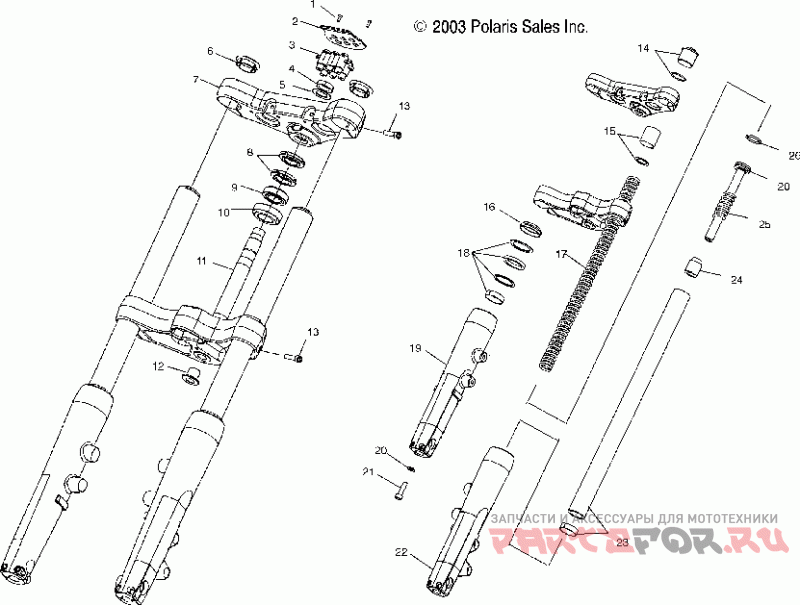

Front forks and clamp asm. - v04gb16/nc16/all options

Victory V04GB16/NC16 VICTORY VEGAS ALL OPTIONS

Victory
#oem кодцена
1821286-156
Asm-fork Leg, 43mm, Rh, 03, Chr ([incl. 15-21] )
1
7518144
Scr-phovalhd, M4x12, Ss
2
5434683
Bezel-indicator
3
2461094
Harness-indicator Light (incl. Bulbs)
3
5435209
Hsg-ind Light, Oil, Turn, Fuel
3
5435210
Hsg-ind Light, Neut/hi/eng
3
4010760
Bulb-wedge Base, 2.3w
4
5134148
Nut-top, Triple, Clamp
5
7556246
Washer-22.5x36x1.5
6
5132481-156
Cap-swingarm Pivot, Chr
7
1821287-411
Asm-upper Brkt, 43mm, 03, Bru ([incl. 13] )
7
1821287-156
Asm-upper Brkt, 43mm, 03, Chr ([incl. 13] )
8
5631935
Nut-steering Head
9
3514417
Bearing-ndl, 25x47x15, Sealed
10
3514416
Bearing-ndl, 30x55x17, Sealed
11
1821484-411
Clamp, Lower Asm, 43mm, W/o Plug, B
11
1821484-156
Asm-lwr Clmp, 43mm, W/o Plug, Chr
12
5412473
Cap-steering Stem, 22x24
14
2202507
Kit-cap W/o Ring, Kyb, 43mm
14
5412452
O-ring, Cap, Kyb, 43mm
15
2202499
Kit-spacer, Preload, Kyb, Mm
16
5412309
Seal-fork, 43mm, 03
17
7042270
Spring-comp, 6.0
18
2202505
Kit-seals Bushing, Kyb, 43mm ([incl. 16] )
19
2202503
Kit-slider Leg, Rh, Sil, 43mm ([incl. 16, 18] )
22
2202502
Kit-slider Leg, Lh, Silver
23
2202504
Kit-asm Tube, Stantion Kyb, 43mm ([incl. 20, 21, 24] )
26
5435151
Ring-damper Piston, Kyb, 43mm
2202506
Kit-damper Rod ([incl. 20, 21, 24, 26] )
1821285-411
Asm-fork Leg, 43mm, Lh, 03, Bru ([incl. 15-21] )
1821286-411
Asm-fork Leg, 43mm, Rh, 03, Bru ([incl. 15-21] )
1821285-156
Asm-fork Leg, 43mm, Lh, 03, Chr ([incl. 15-21] )
