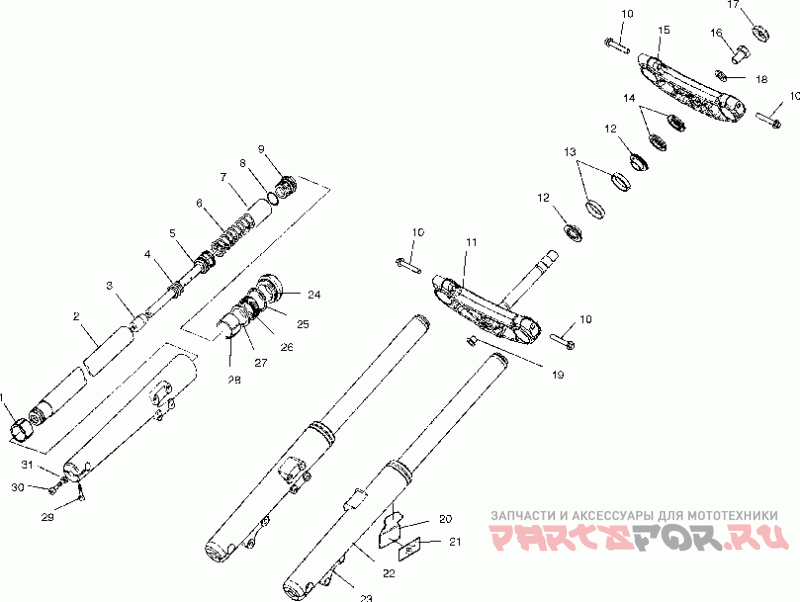

Front forks - v02tb16/all options

Victory V02TB16 TOURING CRUISER ALL OPTIONS

Victory
#oem кодцена
1
3585714
Bushing, Lower
2
5133282
Tube-stanchion, 45mm
3
5131498
Foot, Buffer
4
7041624
Пружина
5
2202093
Kit-damper Rod/segment, 45mm
6
7042026
Spring-fork, 45mm, K10/mm, 330mm
7
5521585
Spacer-fork Spring, 45mm, 22mm
8
5411330
O-ring, Fork
9
5131502
Plug, Fork
10
7517944
Scr-hex Flghd, M10x60, 0600086
11
1820926
Asm-triple Clamp, Lower
12
3554510
Bearing, Tpr.rlr, Sealed
13
3554507
Обойма подшипника
14
5133049
Nut-steering Post, Tc
15
5133914
Clamp-triple, Iso, Mach
16
5133050
Bolt-steering Post, Cap
17
1013570
Weld-cap, Steering Post
18
7556187
Wshr-fl, 19x34x3, 0600090
19
5412121
Plug-steering Post
20
5433864
Base-reflector, Front, Lh
20
5433748
Base-reflector,front, Rh
21
5433878
Reflector-rect, Amber W/blk Frm
22
2202092
Kit-slider Unit, Lh, 45mm, Slvr ([incl. 25-28] )
23
2202091
Kit-slider, Rh, 45mm, Slvr ([incl. 25-28] )
24
5133283
Cap-dust, 45mm
24
3610086
Seal-cap, Dust, 45mm
25
5211827
Кольцо
26
3610068
Сальник
27
5131504
Cap, Oilseal
28
3585715
Bushing, Upper
29
1500168
Винт
30
1500169
Винт
31
3610069
Washer, Oilseal
1820753
Fork Leg, 45mm, Conv, Lh, Tc ([incl. 1-5, 8-9, 6, 24-28, 22, 29, 31-7] )
1820848
Forkleg, 45mm, Conv, Rh, Tc ([incl. 1-5, 8-9, 6, 24-28, 23, 29, 31-7] )
2872184
Victory Fork Oil Qt(6)
