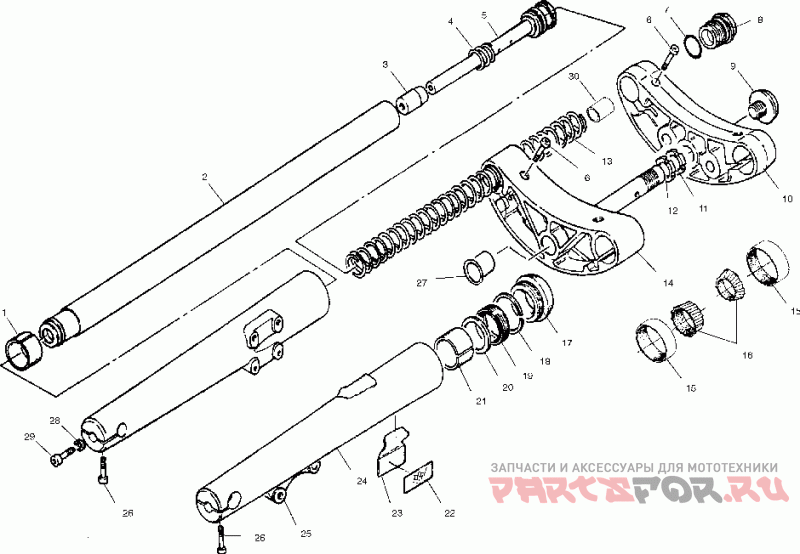

Front forks - v02cd16/all options

Victory V02CD16 DELUXE CRUISER ALL OPTIONS

Victory
#oem кодцена
1
3585714
Bushing, Lower
2
5131505
Tube, Stanchion, 45mm
3
5131498
Foot, Buffer
4
7041624
Пружина
5
2202093
Kit-damper Rod/segment, 45mm
6
1500170
Clamp, Stan.tube Fastener
7
5411330
O-ring, Fork
8
5131502
Plug, Fork
9
5131497
Bolt, Steering Post, Cap
10
1820952
Asm-triple Clamp, Upper, Slvr ([incl. 6] )
11
5131953
Nut-steering Post, Upper
12
5131496
Nut, Steering Post
13
7042026
Spring-fork, 45mm, K10/mm, 330mm
14
1820927
Asm-triple Clamp, Lower, Slvr ([incl. 6, 9, 11, 12] )
15
3554507
Обойма подшипника
16
3554510
Bearing, Tpr.rlr, Sealed
17
5133283
Cap-dust, 45mm
17
3610086
Seal-cap, Dust, 45mm
18
5211827
Кольцо
19
3610068
Сальник
20
5131504
Cap, Oilseal
21
3585715
Bushing, Upper
22
5433878
Reflector-rect, Amber W/blk Frm
23
5433864
Base-reflector, Front, Lh
23
5433748
Base-reflector,front, Rh
24
2202092
Kit-slider Unit, Lh, 45mm, Slvr ([incl. 18-21] )
25
2202094
Kit-slider Unit, Rh, 45mm, Slvr02 ([incl. 18-21] )
26
1500168
Винт
27
5433581
Plug-pvc (10)
28
3610069
Washer, Oilseal
29
1500169
Винт
30
5521585
Spacer-fork Spring, 45mm, 22mm
1821191
Asm-fork Leg, 45mm, Conv, Lh, 02 ([incl. 1-5, 7-8, 13, 17-21, 24, 26, 28-30] )
1821192
Asm-fork Leg, 45mm, Conv, Rh, 02 ([incl. 1-5, 7-8, 13, 17-21, 25, 26, 28-30] )
2872184
Victory Fork Oil Qt(6)
