Fuel system - v00cb15dcs для мотоциклов Victory V00CB15DAS SPECIAL EDITION (2000)

Москва и регионы России

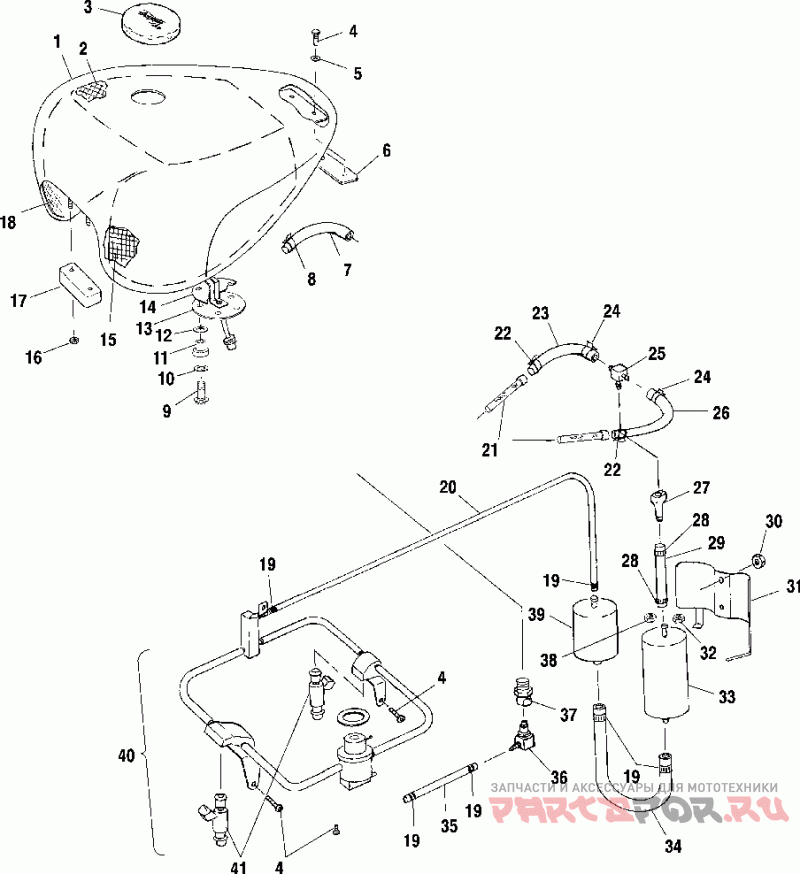

Fuel system - v00cb15dcs

Victory V00CB15DAS SPECIAL EDITION

Fuel system - v00cb15dcs

#

oem код

название

цена

1

Kit-fuel Tank, Replace, Ecoat

Kit-fuel Tank, Replace, Ecoat

2

Shield-heat, Fuel Tank

Shield-heat, Fuel Tank

3

Cap, Fuel

Cap, Fuel

4

Scr-hxflghd, M6x25, 0600086

Scr-hxflghd, M6x25, 0600086

5

Washer, Cushion

Washer, Cushion

6

Pad-rear, Tank Mount

Pad-rear, Tank Mount

7

Hose-vent, Fuel Tank

Hose-vent, Fuel Tank

8

Зажим (отпуск по 10 шт)

Зажим (отпуск по 10 шт)

9

Винт

Винт

10

O-ring-fuel Sender, Bootom

O-ring-fuel Sender, Bootom

11

Bushing-torque Limiter

Bushing-torque Limiter

12

O-ring-fuel Sender, Top

O-ring-fuel Sender, Top

13

Sender, Fuel Level

Sender, Fuel Level

14

Gasket-fuel Sender

Gasket-fuel Sender

15

Shield, Heat, Fuel Tank, Left

Shield, Heat, Fuel Tank, Left

16

Nut, Hexhd, M8

Nut, Hexhd, M8

17

Pad, Fueltank Frame, Front

Pad, Fueltank Frame, Front

18

Shield, Heat, Fuel Tank, Right

Shield, Heat, Fuel Tank, Right

19

Clamp-hose, 9-14 Mm Clamp Dia

Clamp-hose, 9-14 Mm Clamp Dia

20

Hose, Filter/manifold

Hose, Filter/manifold

21

Фильтр топливный

Фильтр топливный

22

Clamp-hose Band, 5/8"od Ump

Clamp-hose Band, 5/8"od Ump

23

Hose, Tank/quick Disc, Rh

Hose, Tank/quick Disc, Rh

24

Clamp, Hose, Dbl.band

Clamp, Hose, Dbl.band

25

Кольцо уплотнительное

Кольцо уплотнительное

25

Quickdisc, Fuelfeed, Male, Tee

Quickdisc, Fuelfeed, Male, Tee

26

Hose, Tank/quick Disc, Lh

Hose, Tank/quick Disc, Lh

27

Quickdisc, , Fuelpump, Female

Quickdisc, , Fuelpump, Female

28

Clamp, Hose, 16-22mm Dia (10)

Clamp, Hose, 16-22mm Dia (10)

29

Hose, Quick-disc/pump

Hose, Quick-disc/pump

30

Гайка

Гайка

31

Brkt, Fuelpump Top, Blk

Brkt, Fuelpump Top, Blk

32

Nut, Hexhd(10)

Nut, Hexhd(10)

33

Kit-fuel Pump, Ext Replacement

Kit-fuel Pump, Ext Replacement

34

Hose, Pump/filter

Hose, Pump/filter

35

Hose, Rail/tank Return

Hose, Rail/tank Return

36

Fuelline, Quick Disc, Male

Fuelline, Quick Disc, Male

37

Disc-quick, Fueltank, Female

Disc-quick, Fueltank, Female

38

Гайка (отпускается по 10 шт)

Гайка (отпускается по 10 шт)

39

Фильтр топливный

Фильтр топливный

40

Regulator, Fuel Press.

Regulator, Fuel Press.

41

Injector, Fuel

Injector, Fuel

41

O-ring, (2)

O-ring, (2)

4

Винт

Винт

39

Filter, Fuel, Hi-pressure

Filter, Fuel, Hi-pressure
