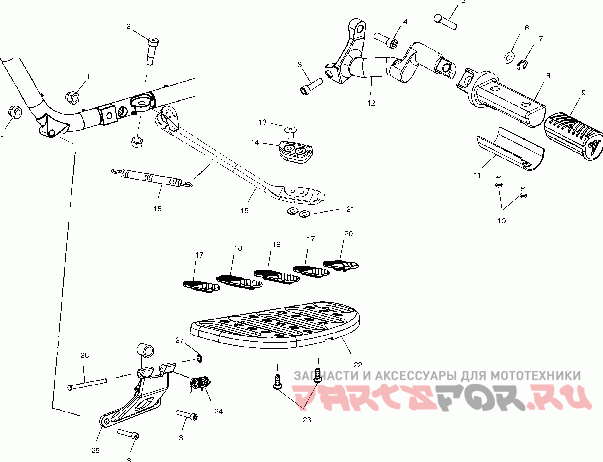

Floorboard and side stand - v00cb15dc

Victory V00CB15CE STANDARD CRUISER

Victory
#oem кодцена
1
7547039
Гайка
2
7517404
Винт
3
7518055
Scr-sochd, M10x50, 0600084
4
7517554
Screw (lh Side Only)
5
5131857
Pin, Pivot, Pass.peg, Ss
6
7556046
Washer, Spring, Ss.(10)
7
7710493
E-clip, M8, Steel(10)
8
5132303
Footpeg-pass, Lh
8
5132304
Footpeg-pass, Rh
9
5411333
Pad, Footpeg, Pass.
9
5411334
Pad, Rh, Footpeg, Pass.
10
7517767
Scr, Btnhd, M8x16
11
5243767-067
Cover-footpeg, Black
12
5244041-067
Support, Ftrest, Pas, Lh, Blk
12
5244042-067
Support, Ftrest, Pas, Rh, Blk
13
7661064
Rivet, Truss, Hd, Ss (50)
14
5412662
Pad-side Stand
15
1013062
Side Stand, Asm.
16
7042047
Spring-sidestand
17
5411267
Pad, F'board, #1/#4
18
5411268
Pad, F'board, #2
19
5411269
Pad, F'board, #3
20
5411270
Pad, F'board, #5
21
7556121
Washer-fl, 6.0x0.8(10)
22
5132228
Floorboard-lh, Driver
22
5132229
Floorboard-rh, Driver
23
7517694
Винт (отпускается по 10шт.)
24
7041623
Spring, F'board Support
25
5132429-067
Support, Flrbrd, Lh, Mach, Blk
25
5132430-067
Support-floorboard, Rh, Mach, Blk
26
2202357
Kit-floorboard Support Pin
22
5132228-156
Floorboard-lh, Driver, Chrome **
