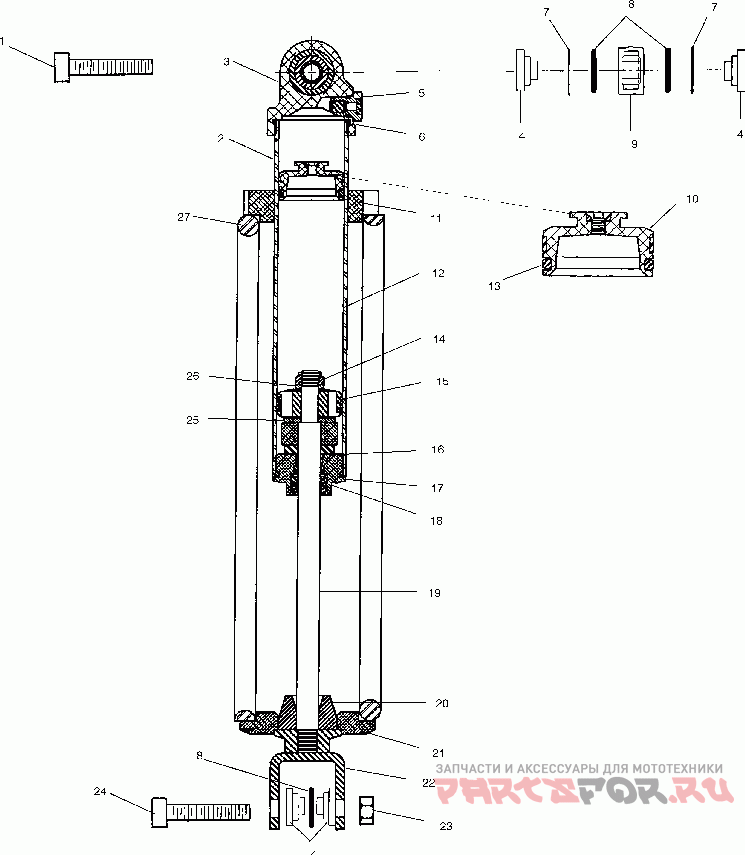

Rear shock - v99cb15db

Victory V99CB15DA STANDARD CRUISER

Victory
#oem кодцена
1
7517367
Screw (rear Shock Mounting)
2
1500174
Shock, Victory
3
1500175
Body Cap, V92c
4
1500173
Reducer
5
1500019
Винт
6
1500004
O-ring, Body, Fox, .139w-1.234id
7
1500093
O-ring, (fox), Sp
8
3513506
Bearing, Spherical
9
7710446
Ring, Snap, (fox Sp)
10
7547039
Гайка
11
1500011
Поршень
12
1500237
Ring, Spring, Preload
13
1500181
Body-1.459bore, 5.75otlg, Steel
14
1500180
O-ring-high Temp, Ifp
15
1500016
Гайка
16
1500002
Damper, Piston Ring
17
1500074
Bumper, Rubber
18
1500020
O-ring, .103w-1.299id
19
1500186
Bearing-assembly
20
1500177
Shaft-0.498 Od X 5.85 Tlg
21
5410855
Bumper, Jounce
22
1500178
Retainer-spring, V92c
23
1500179
Eyelet-clevis, V92c
24
7517358
Screw (front Shock Mounting)
25
1500017
Plate, Top Out
26
1500015
Plate, Backup
27
7041759
Spring-shock, V92c, 460 Lbs
1
7517962
Scr-hexhd, M10x80 (rear Shock Mounting)
