Gear selector drum для мотоциклов Triumph Tiger Explorer (2012)

Москва и регионы России

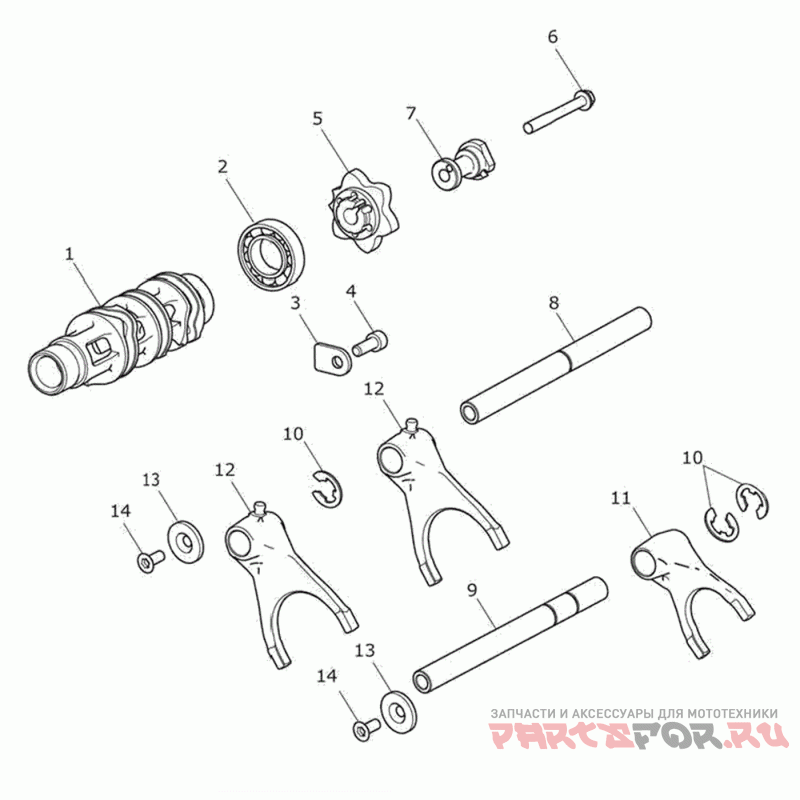

Gear selector drum

Triumph Tiger Explorer

Gear selector drum

#

oem код

название

цена

1

Selector Drum Assy

Selector Drum Assy

2

Bearing, Ball, 20x37x9

Bearing, Ball, 20x37x9

3

Plate, Bearing Retainer

Plate, Bearing Retainer

4

Screw, Cap/hd, M6x1x16, Enc, Raw

Screw, Cap/hd, M6x1x16, Enc, Raw

5

Detent Wheel

Detent Wheel

6

Bolt, Rhhfm6x1.0x50-raw

Bolt, Rhhfm6x1.0x50-raw

7

Spigot, Drive, Gps Sensor

Spigot, Drive, Gps Sensor

8

Shaft, Selector Fork, Output

Shaft, Selector Fork, Output

9

Shaft, Selector Fork, Input

Shaft, Selector Fork, Input

10

E-clip, 13-18mm

E-clip, 13-18mm

11

Fork, Selector, Input

Fork, Selector, Input

12

Fork, Selector, Output

Fork, Selector, Output

13

Washer, Countersunk, 6.5x25x3

Washer, Countersunk, 6.5x25x3

14

Screw, Torx, C/s, M6x14, Encap, Raw

Screw, Torx, C/s, M6x14, Encap, Raw
