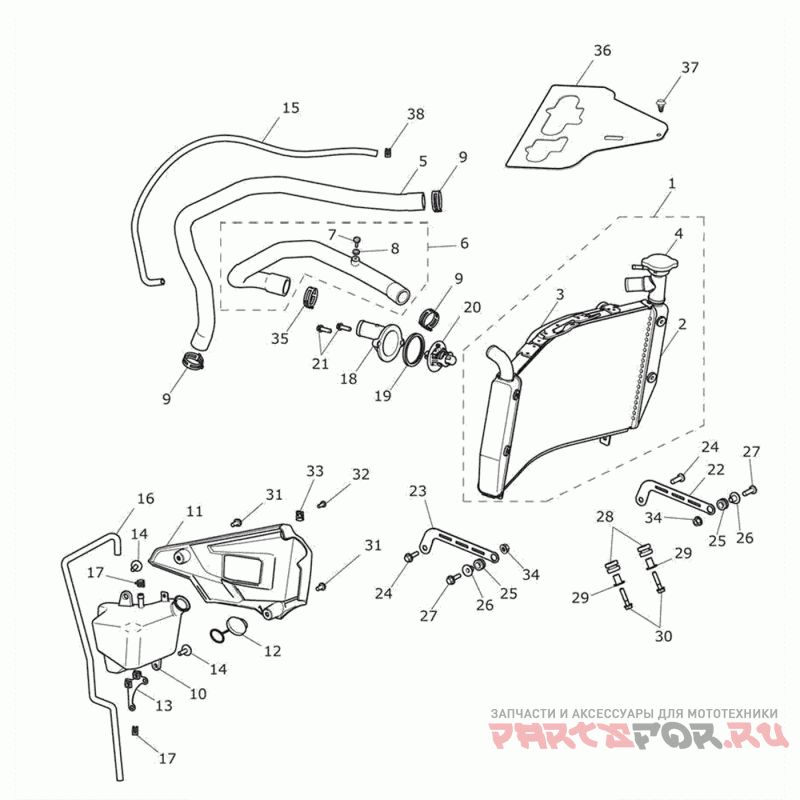

Система охлаждения

Triumph Tiger Explorer

Triumph
#oem кодцена
1
T2100950
Radiator And Fan Assembly
2
T2100951
Radiator, Curved
3
T2100952
Вентилятор
4
T2100081
Cap, Assy, Radiator
5
T2100544
Hose, Radiator To Pump
6
T2100473
Hose, Tstat To Radiator
7
T3330677
Screw, Bleed, M6 X 16
8
T3550233
Washer, Rubber, M6x12x1.5
9
T3700315
Clip, Hose, Dia 24.0 32.0
10
T2108355
Expansion Tank
11
T2100461
Cover, Expansion Tank
12
T2101015
Cap, Expansion Tank
13
T2100462
Bracket, Expansion Tank
14
T3331518
Screw, But/hd, M6x1.0x20, Slv
15
T2100636
Pipe, Radiator To Exp Tank
16
T2100637
Pipe, Expansion Tank Overflow
17
T3700440
Clip, Hose, 11.0-12.5mm
18
T2100479
Cover, Water Outlet
19
T2100201
Seal, Thermostat, Rubber
20
T2100207
Термостат
21
T3205066
Bolt, Rhhf, M6x1x20, Slv
22
T2100901
Bracket, Lh, Radiator
23
T2100902
Bracket, Rh, Radiator
24
3200026T0301
Bolt, Hhf, Lghtd, M8x1.25x20, Slv
25
T3020030
Grommet, Rubber
26
T3010052
Flanged Sleeve, M6x12x10.75
27
T3205067
Bolt, Hhf, Lghtd, M6x1.0x25, Slv
28
T3021200
Grommet, Dia 14.0 X 4.0 Panel
29
T3010075
Flanged Sleeve, M6x10.0x14.5
30
T3200148
Bolt, M6x30, Silver
31
T3331189
Screw, Pan/hd, Tx, M6x1.0x12, Enc
32
T3330649
Screw, Pan/hd, Tx, M5x0.8x12, Slv
33
T3350129
Nut, Captive, M5
34
T3350305
Locknut, Flgd, M6x1.0, Slv
35
T3700320
Clip, Hose, Dia 27.0-35.0
36
T2100980
Sheet, Heat Shield
37
T3450299
Fir Tree M6 17.8 X 15.5
38
T3700077
Clip, 10.5 Ger Oetiker
