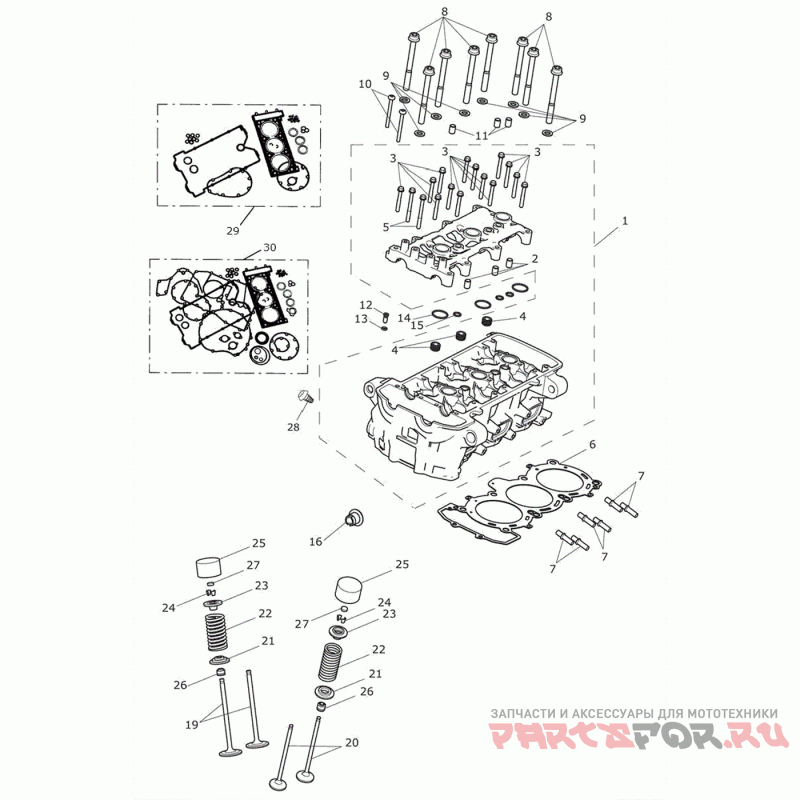

Головка блока цилиндров и клапаны

Triumph Tiger Explorer

Triumph
#oem кодцена
1
T1151214
Cylinder Head, Machined Sai
2
T3000102
Dowel, Hollow, 10x14
3
T3202029
Bolt, M6x40
4
T3450005
Plug, N.p.s.i. 3/8 Dry Seal
5
T3201038
Bolt, Rhhf, M6 X 60, 10.9 Raw
6
T1151220
Прокладка
7
T3110001
Stud, Shld, M8x1.25x36.5, Slv, Enc
8
T1151221
Bolt, Cylinder Head
9
T3551195
Washer, Hardened, 10.5x18.1x2.0
10
T3331111
Screw, Pan/hd, Tx, M6x55, Slv
11
T3000102
Dowel, Hollow, 10x14
12
T1151224
Restrictor, Oil
13
T1151225
O Ring, Restrictor
14
T3600186
O-ring, Fluorocarbon, 25 X 2.0
15
T3600187
O Ring, 8.0 X 2.0
16
T2072004
Adjuster, Frame, M12
19
T1131211
Valve, Inlet
20
T1131212
Клапан выпускной
21
T1130404
Platform, Spring, Valve
22
T1131210
Пружина клапана
23
T1131204
Retainer, Spring, Valve
24
T1130705
Collet, Valve
25
T1130026
Bucket, Tappet, Dia 28.5mm
26
T1130710
Seal, Oil, Valve Stem, 5 Mm
27
T1131011
Shim,1.725mm, Dia 9.5
27
T1131010
Shim, 1.7mm, Dia 9.5
27
T1131062
Shim, 3.0mm Dia 9.5
27
T1131061
Shim,2.975mm, Dia 9.5
27
T1131060
Shim,2.95mm, Dia 9.5
27
T1131059
Shim, 2.925mm, Dia 9.5
27
T1131058
Shim,2.9mm, Dia 9.5
27
T1131057
Shim, 2.875mm, Dia 9.5
27
T1131056
Shim, 2.85mm, Dia 9.5
27
T1131055
Shim,2.825mm, Dia 9.5
27
T1131054
Shim, 2.8mm, Dia 9.5
27
T1131053
Shim,2.775mm, Dia 9.5
27
T1131052
Shim, 2.75mm, Dia 9.5
27
T1131051
Shim,2.725mm, Dia 9.5
27
T1131050
Shim,2.7mm, Dia 9.5
27
T1131049
Shim,2.675mm, Dia 9.5
27
T1131048
Shim,2.65mm, 9.5
27
T1131047
Shim, 2.625mm, 9.5
27
T1131046
Shim, 2.6mm, Dia 9.5
27
T1131045
Shim,2.575mm, Dia 9.5
27
T1131044
Shim,2.55mm, Dia 9.5
27
T1131043
Shim, 2.525mm,dia 9.5
27
T1131042
Shim,2.5mm, Dia 9.5
27
T1131041
Shim, 2.475mm, Dia 9.5
27
T1131040
Shim, 2.45mm, Dia 9.5
27
T1131039
Shim, 2.425mm, Dia 9.5
27
T1131038
Shim, 2.4mm, Dia 9.5
27
T1131037
Shim, 2.375mm, Dia 9.5
27
T1131036
Shim, 2.35mm, Dia 9.5
27
T1131035
Shim, 2.325mm, Dia 9.5
27
T1131034
Shim, 2.3mm, Dia 9.5
27
T1131033
Shim,2.275m, Dia 9.5
27
T1131032
Shim,2.25mm, Dia 9.5
27
T1131031
Shim,2.225mm, Dia 9.5
27
T1131030
Shim, 2.2mm, Dia 9.5
27
T1131029
Shim, 2.175mm, Dia 9.5
27
T1131028
Shim,2.125mm, Dia 9.5
27
T1131027
Shim, 2.125mm, Dia 9.5
27
T1131026
Shim, 2.1mm, Dia 9.5
27
T1131025
Shim,2.075mm, Dia 9.5
27
T1131024
Shim,2.05mm, Dia 9.5
27
T1131023
Shim,2.025mm, Dia 9.5
27
T1131022
Shim,2.0mm, Dia 9.5
27
T1131021
Shim,1.975mm, Dia 9.5
27
T1131020
Shim,1.95mm, Dia 9.5
27
T1131019
Shim,1.925mm, Dia
27
T1131018
Shim, 1.9mm, Dia 9.5
27
T1131017
Shim,1.875mm, Dia 9.5
27
T1131016
Shim, 1085mm, 9.5
27
T1131015
Shim, 1.825mm, Dia 9.5
27
T1131014
Shim, 1.8mm, Dia 9.5
27
T1131013
Shim,1.775, Dia 9.5
27
T1131012
Shim, 1.75mm, Dia 9.5
28
T3450290
Fir Tree, M5, Dia 12.1 X 15.0
