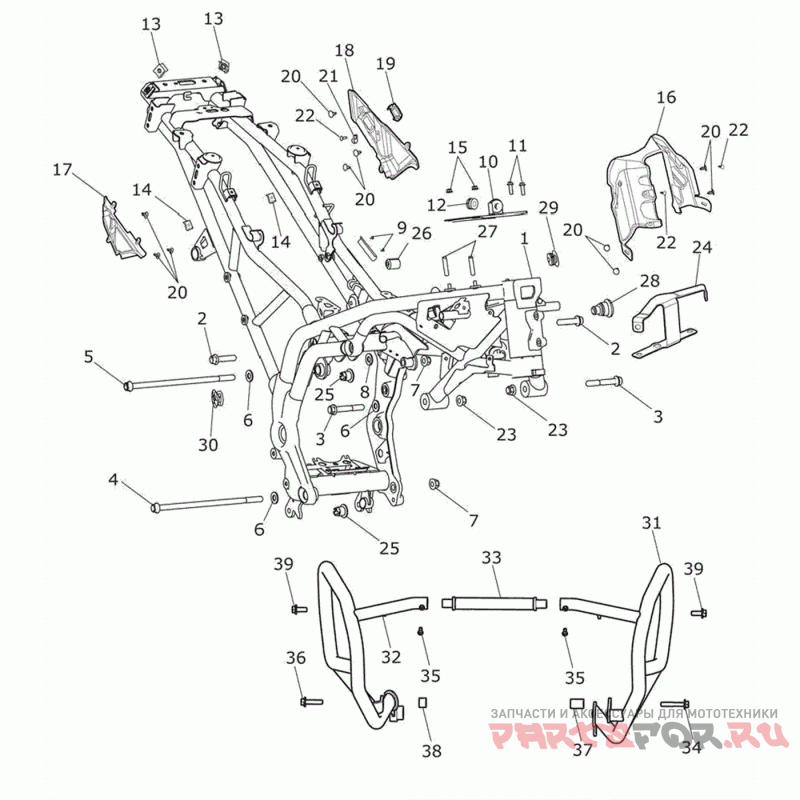

Главная рама и фитинги

Triumph Tiger Explorer

Triumph
#oem кодцена
2
T3334692
Screw,torx, M12 X 1.25 X 50
3
T3151120
Bolt, M12x1.25x75
5
T3334662
Screw,torx, M12x1.25x265
6
T3550570
Washer, Hardened,26.0x12.5x3.0
7
T3550115
Washer, Thrust, 26x19x1.5
8
T2071755
Spacer, Engine Mount, M12
9
T3300020
Заклёпка
10
T2075850
Pressing, Headstock Brace, Top
11
T3202304
Bolt, Rhhf, M6x1.0x20, Slv
12
T3020300
Grommet; Dia 19.5 X 4.0 Panel
13
T3350111
Nut, Captive M6
14
T3350123
Nut, Captive, M5, Non Secured
15
T3350003
Flanged Lock Nut, M6
16
T2303385
Headstock Infill, Mldg
17
T2070214
Frame Infill, Rhs
18
T2070146
Frame Infill, Lhs
19
T2307136
Blank Plug, Switch
20
T3701170
Rivet, Plastic, Screw Type
21
T3700149
Clip, Dia 9.5 Plastic Black
22
T3701098
Clip, Firtree, Dia5.0x18.0
23
T3350115
Locknut, Flgd, M12x1.25, Silver
25
T2072004
Adjuster, Frame, M12
26
T2056500
Bush, Rubber Mount, 10.2x27x32
27
T3100020
Stud, M6
28
T2050145
Pin, Pivot, M30 X 1.5
29
T2076468
Bung, Tube, Upper Cross Beam, Lhs
30
T2076469
Bung,tube,upper Cross Beam, Rh
31
T2076730
Protector Bar, Engine, Lh
32
T2076735
Protector Bar, Engine, Rh
33
T2076966
Link Bar, Fab
34
T3330574
Bolt, Hhf, Lghtd, M8x1.25x45, Slv
35
T3330649
Screw, Pan/hd, Tx, M5x0.8x12, Slv
36
T3205868
Bolt, Hhf, Lghtd, M8x1.25x33, Slv
37
T2076740
Spacer, 8.4 X 17.8 X 25, Alum
38
T2076745
Spacer, 8.4 X 17.8 X 13, Alum
39
T3205781
Bolt, Hhf, Lghtd, M8x1.25x25, Slv
4
T3334652
Screw,torx, M12x1.25x250
