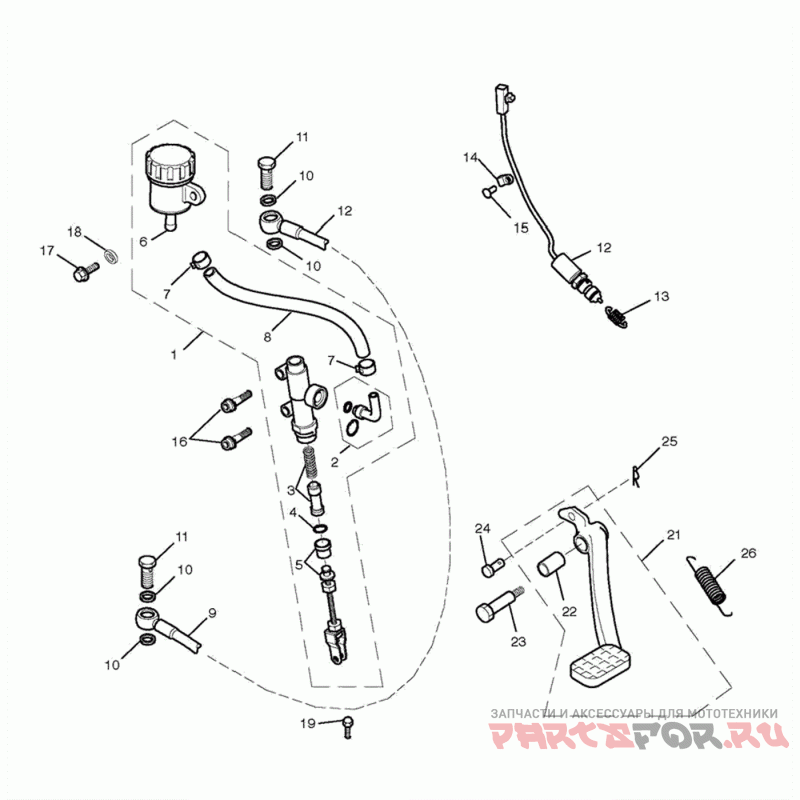

Задний цилиндр и педаль тормоза

Triumph Scrambler

Triumph
#oem кодцена
1
T2024074
Master Cylinder Assy, Rear
1
T2024500
Master Cylinder Assy, Rr
2
T2023189
Connector Set
3
T2020031
Piston Set, Rear M'cylinder
4
T2020472
Circlip, M'cylinder, Rear
5
T2025522
Pushrod Assy, M/cyl Rear
6
T2020390
Resevoir, Rear M/cyl
6
T2024070
Reservoir, Rear, Tank Assy
7
T2023188
Зажим
8
T2024600
Hose Master Cyl Reservoir Rr
9
T2022550
Шланг тормозной
10
T3550229
Washer, 15.2 X 10 X 1.0, Plated
11
T3250125
Bolt, Banjo, M10x1.25x21
12
T2025710
Spring, Brake Switch Return
13
T2020198
Spring, Brake Lever Return
14
T3701094
P-clip, Dia4.4, Plastic, Black
15
T3701098
Clip, Firtree, Dia5.0x18.0
16
T3335012
Screw, But/hd, Skt, M8x1.25x25
17
T3050331
Screw, Cap/hd, M6x1.0x16, Slv, Enc
18
T3551205
Washer, M6x14x1.6, Form C
19
T3203203
Bolt, Hhf, Lghtd, M6x1.0x16, S/s
19
T3330334
Screw, Tx, Pan/hd, M6x1.0x16, Slv
21
T2024000
Pedal, Brake, Assy
22
T3750021
Bush, Brake Pedal
23
T3331650
Bolt, Shouldered, M10x1.25
24
T3000301
Pin, Clevis 8 X 13.7
25
T3000302
Clip, 8mm Clevis Pin
26
T2025339
Spring, Brake Lever Return
