Трансмиссия для мотоциклов Triumph Sprint ST (2010)

Москва и регионы России

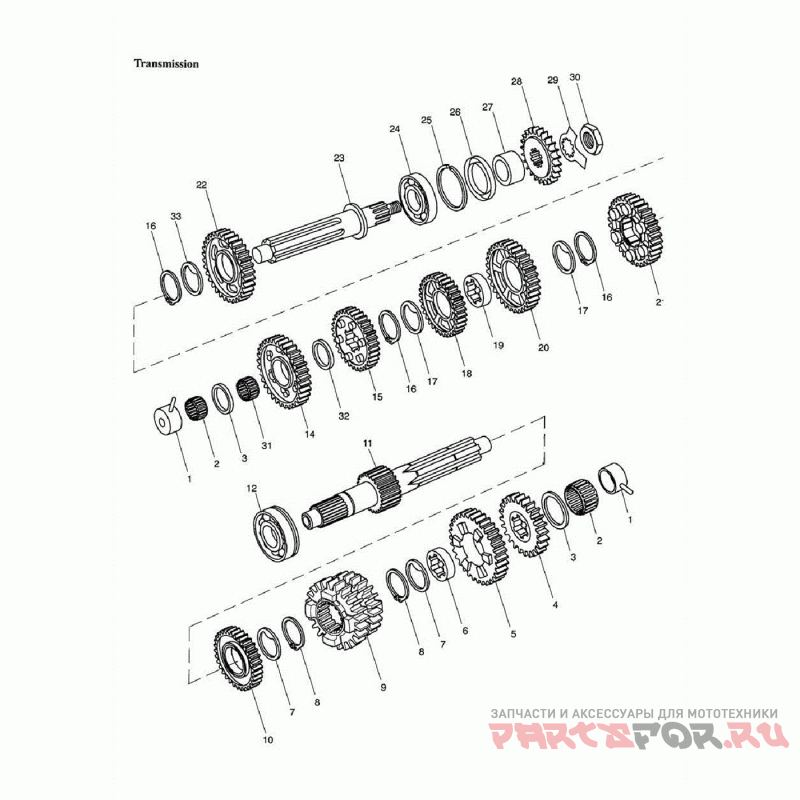

Трансмиссия

Triumph Sprint ST

Трансмиссия

#

oem код

название

цена

1

Sleeve Assy, Needle Brg, I&o

Sleeve Assy, Needle Brg, I&o

Input & Output

2

Подшипник

Подшипник

K25x32x16

3

Washer, Thrust, 38.0 O.d X 2.5

Washer, Thrust, 38.0 O.d X 2.5

Eng No 227590 And Higher

3

Washer, Thrust, 38.0 O.d.x2.22

Washer, Thrust, 38.0 O.d.x2.22

Eng No 227589 And Below

4

Gear, 2nd, Input

Gear, 2nd, Input

2nd

5

Gear, 6th Input

Gear, 6th Input

6

Bush, 6th, Input

Bush, 6th, Input

7

Washer, Trust, 38.0 Od X1.0

Washer, Trust, 38.0 Od X1.0

Input

8

Пружинное стопорное кольцо

Пружинное стопорное кольцо

D1400 - 0300

9

Gear 3/4 Input

Gear 3/4 Input

10

Gear, 5th Input

Gear, 5th Input

11

Shaft, Input, Gearbox

Shaft, Input, Gearbox

12

Подшипник

Подшипник

Dg2868 Gn1c3

14

Gear, 1st, Output

Gear, 1st, Output

15

Gear, 5th Output

Gear, 5th Output

16

Circlip, Ext, 29x1.5

Circlip, Ext, 29x1.5

D1400 - 0320

17

Washer, Thrust,41 Od X 1.5

Washer, Thrust,41 Od X 1.5

Output

18

Gear, 4th Output

Gear, 4th Output

19

Bush, 3rd/4th, Output

Bush, 3rd/4th, Output

20

Gear, 3rd Output

Gear, 3rd Output

21

Gear, 6th Output

Gear, 6th Output

22

Gear Assy, 2nd, Output

Gear Assy, 2nd, Output

23

Shaft, Output, Gearbox

Shaft, Output, Gearbox

24

Bearing, 30x62x16, Dgb

Bearing, 30x62x16, Dgb

Tm206 (3**ursdrs)

25

Snap Ring, Ext, 62x1.7

Snap Ring, Ext, 62x1.7

Roller Brg

26

Seal, Oil, 40 62 6

Seal, Oil, 40 62 6

27

Гильца

Гильца

28

Sprocket, G/box (19t)

Sprocket, G/box (19t)

4 Cyl All Except Ch

29

Washer, Sprocket

Washer, Sprocket

Gearbox Sprocket

30

Nut, Gearbox Sprocket

Nut, Gearbox Sprocket

Gearbox Sprocket

31

Bearing, Needle, 25 X 29 X 10

Bearing, Needle, 25 X 29 X 10

32

Washer, Thrust, 35 X 25 X 1.0

Washer, Thrust, 35 X 25 X 1.0

33

Washer, Thrust, 41 Od X1.5

Washer, Thrust, 41 Od X1.5
