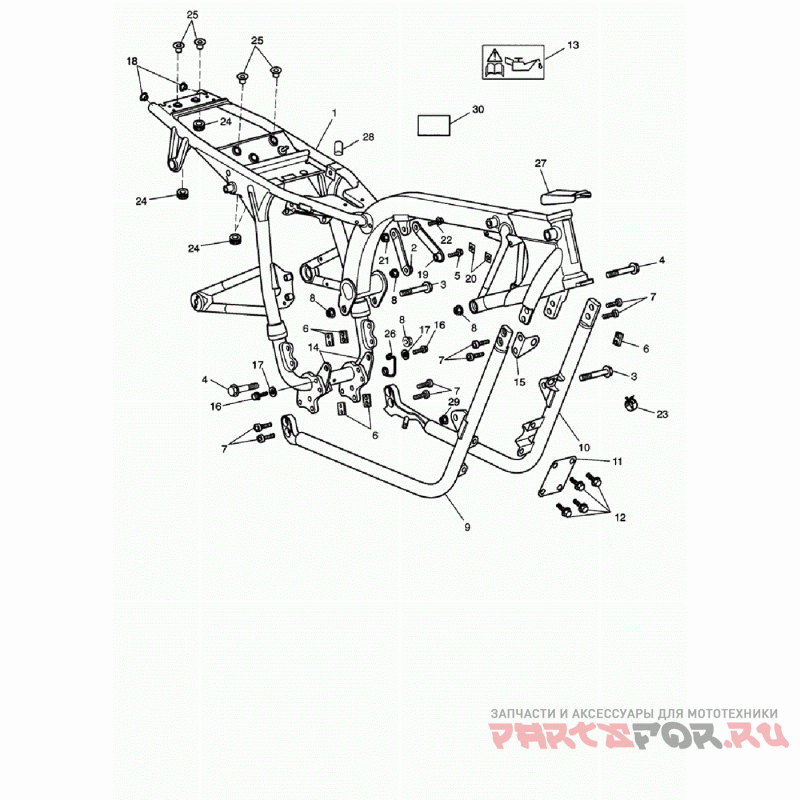

Главная рама и фитинги

Triumph Scrambler

Triumph
#oem кодцена
1
T2075267
Frame Assy, California, Spares
1
T2075265
Frame Assy, Canada
1
T2075264
Frame Assy, Americas
1
T2075263
Frame Assy, World
2
T2075057
Plate, Cylinder Head
3
T3330781
Bolt, Hhf, M12x1.25x130, 10.9, Blk
4
T3150011
Bolt, Hhf, M12x1.25x172, 10.9, Blk
4
T3151011
Bolt, Hhf, M12x1.25x172, 10.9, Slv
5
T3151021
Bolt, Hhf, M12x1.25x55, 10.9, Slv
6
T2075055
Bracket, M10
7
T3051221
Spares Kit: 900 Cradle Bolts
7
T3050224
Screw, Cap/hd, M10x1.25x35, Slv
8
T3350115
Locknut, Flgd, M12x1.25, Silver
9
T2075271
Cradle Assy, Rh, Ed & Painted
10
T2075241
Cradle Assy, Lh, Ed & Painted
11
T2075056
Plate, Cradle Stiffener
12
T3330541
Bolt, Hhf, Lghtd, M8x1.25x16, Slv
13
T3900136
Label,oil&filter, Diagramatic
14
T2075008
Plate, Lower Rear Engine
15
T2075034
Bracket, Oil Cooler
16
T3332162
Screw, M10x1.25x30, Enc
17
T3550073
Washer, M10, Form B, Stainless
18
T3450060
Крышка
19
T2075068
Bracket, Cyl Hd, Lh
20
T3351002
Nut, Captive, U-type, M5x0.8, Slv
21
T3350181
Locknut, Flanged, M8
22
T3202319
Bolt, Hhf, M8x1.25x35, Slv
23
T3700108
Clip,cable, 14.3 X 107
24
T3021100
Grommet, Dia 13.0 X 1.8 Panel
25
T3010111
Flanged Sleeve, M6x10x8.5
26
T2072323
Guide, Brake Pipe
27
T2072702
Rubbing Strip, Headstock
28
T1241012
Cap, Vacuum Connection, Keihin
29
T3350115
Locknut, Flgd, M12x1.25, Silver
