Система охлаждения для мотоциклов Triumph Daytona 675 (2010)

Москва и регионы России

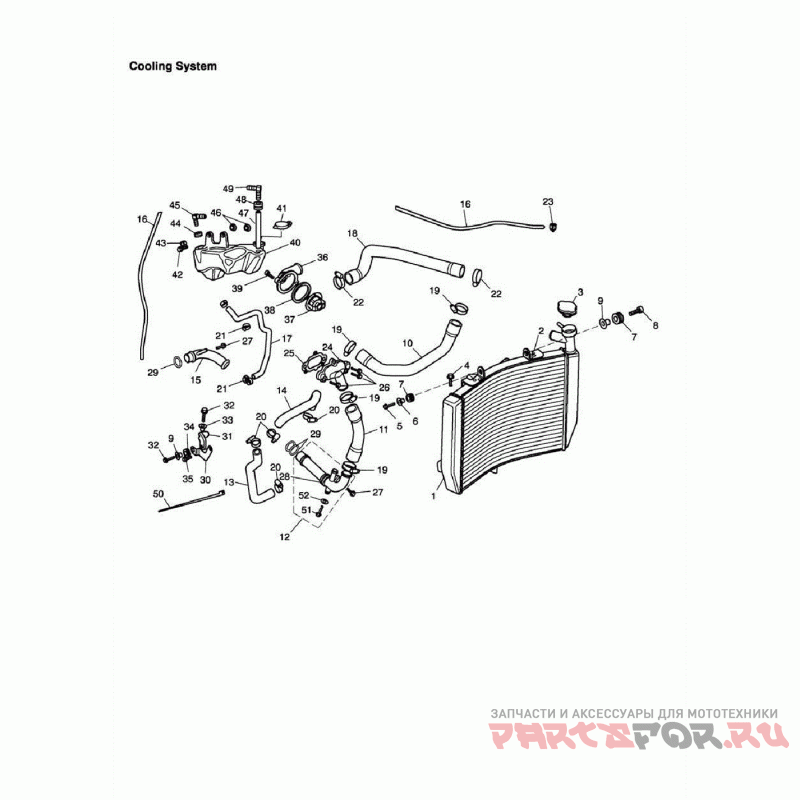

Система охлаждения

Triumph Daytona 675

Система охлаждения

#

oem код

название

цена

1

Rad/curved Wrap N Foam

Rad/curved Wrap N Foam

2

Fan, Cooling, Radiator

Fan, Cooling, Radiator

3

Cap, Assy, Radiator

Cap, Assy, Radiator

4

Screw, Bleed, Nylon

Screw, Bleed, Nylon

5

Bolt, Rhhf, M6x1x20, Slv

Bolt, Rhhf, M6x1x20, Slv

M6 X 20mm Stainless

6

Flanged Sleeve, M6x10x8.5

Flanged Sleeve, M6x10x8.5

M6 Black

7

Grommet; 13*3*10

Grommet; 13*3*10

Serial Number 71698 And Below

8

Bolt, Rhhf, Domed, S/less, M6x30

Bolt, Rhhf, Domed, S/less, M6x30

M6 X 28mm

9

Flanged Sleeve, M6x9.6x10.5

Flanged Sleeve, M6x9.6x10.5

Use With Foam Seal Part No.3660117 - T0301

10

Hose, Coolant, Rad To Pump

Hose, Coolant, Rad To Pump

11

Hose, Formed,water Pump Outlet

Hose, Formed,water Pump Outlet

12

Pipe, Water Pump Outlet

Pipe, Water Pump Outlet

13

Hose, Coolant, He To Rad

Hose, Coolant, He To Rad

14

Hose, Coolant, He Inlet

Hose, Coolant, He Inlet

15

Pipe, Inlet, Water Pump

Pipe, Inlet, Water Pump

16

Hose, Coolant, Swaged End

Hose, Coolant, Swaged End

17

Hose, Bypass, Water

Hose, Bypass, Water

18

Hose, Coolant, Rad To Thermost

Hose, Coolant, Rad To Thermost

19

Clip, Hose, Dia 24.0 32.0

Clip, Hose, Dia 24.0 32.0

20

Clip, Hose, Dia 14.0-22.0

Clip, Hose, Dia 14.0-22.0

21

Clip, Hose, 11.0-12.5mm

Clip, Hose, 11.0-12.5mm

Pipe

22

Clip, Hose, Dia 27.0-35.0

Clip, Hose, Dia 27.0-35.0

23

Clip, 10.5 Ger Oetiker

Clip, 10.5 Ger Oetiker

24

Кожух

Кожух

25

Gasket, Water Inlet

Gasket, Water Inlet

26

Bolt, Hhf, M6 X 20, S/s

Bolt, Hhf, M6 X 20, S/s

Serial Number 161318 And Higher - M6 X 20mm

27

Screw, Tx, Pan/hd, M6x1.0x16, Slv

Screw, Tx, Pan/hd, M6x1.0x16, Slv

""rhhf, Domed, M6 X 16, S/less""

28

O Ring, 24x1.5

O Ring, 24x1.5

29

O-ring Id 21.5 X 3.0

O-ring Id 21.5 X 3.0

30

Bracket, Radiator, Lower, Front

Bracket, Radiator, Lower, Front

31

Bracket, Radiator, Lower, Rear

Bracket, Radiator, Lower, Rear

32

Bolt, Hhf, Lghtd, M6x1.0x25, Slv

Bolt, Hhf, Lghtd, M6x1.0x25, Slv

M6 X 25mm Black

33

Flanged Sleeve, M6x10x8.5

Flanged Sleeve, M6x10x8.5

Serial Number 4902 And Higher

34

Grommet; 12*2*9.6

Grommet; 12*2*9.6

Eng No 258536 And Higher

35

Screw, Tx, Pan/hd, M6x1.0x16, Slv

Screw, Tx, Pan/hd, M6x1.0x16, Slv

M6 X 16mm Black

36

Cover, Water Outlet

Cover, Water Outlet

37

Термостат

Термостат

38

Seal, Thermostat, Rubber

Seal, Thermostat, Rubber

39

Bolt, Rhhf, M6x1x20, Slv

Bolt, Rhhf, M6x1x20, Slv

161317 And Below M6 X 20mm

40

Expansion Tank

Expansion Tank

41

Cap, Expansion Tank

Cap, Expansion Tank

42

Bolt, Rhhf, M6x1.0x20, Slv

Bolt, Rhhf, M6x1.0x20, Slv

M6 X 20mm

43

Locknut M6

Locknut M6

M6 Black

44

Grommet, Dia 18,0 X 4.0 Panel

Grommet, Dia 18,0 X 4.0 Panel

45

Elbow, Overflow, Coolant

Elbow, Overflow, Coolant

46

Flanged Sleeve, M6x9.0x3.2

Flanged Sleeve, M6x9.0x3.2

M6

47

Pipe, Internal Expansion Tank

Pipe, Internal Expansion Tank

Expansion Tank

48

Grommet, Dia 14.0 X 4.0 Panel

Grommet, Dia 14.0 X 4.0 Panel

Serial Number 55899 And Higher

49

Elbow, I.d. 8.0, Tube

Elbow, I.d. 8.0, Tube

8.00mm

50

Cable Tie

Cable Tie

Serial Number 87936 And Below
