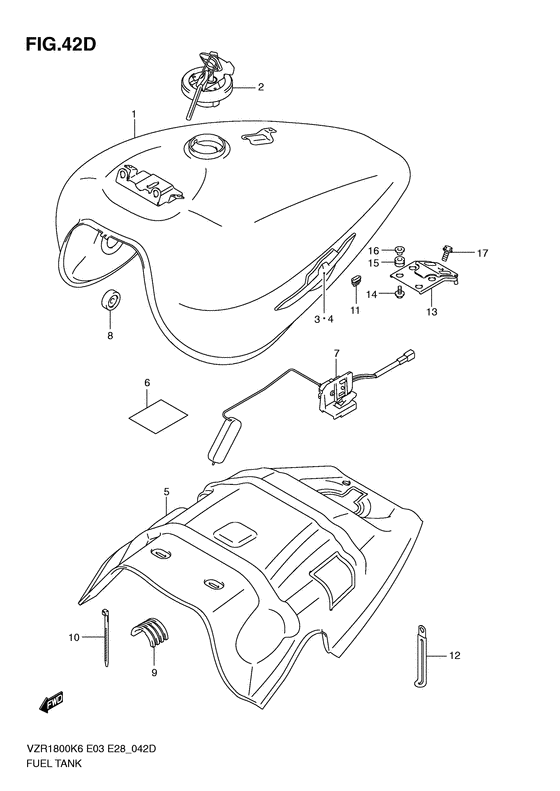

Tank fuel

Suzuki VZR1800 Boulevard M109R

Tank fuel

Tank fuel

1

1

1

1

2

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

#

oem код

название

цена

1

44100-48GF0-YVB

TANK ASSY,FUEL(BLACK)

TANK ASSY,FUEL(BLACK)

Tank assy, fuel (black); E33

1

44100-48GF0-YKZ

TANK ASSY,FUEL(BLUE)

TANK ASSY,FUEL(BLUE)

Tank assy, fuel (blue); E33

1

44100-48GD0-YVB

TANK ASSY,FUEL(BLACK)

TANK ASSY,FUEL(BLACK)

Tank assy, fuel (black); E3,e28

1

44100-48GD0-YKZ

TANK ASSY,FUEL(BLUE)

TANK ASSY,FUEL(BLUE)

Tank assy, fuel (blue); E3,e28

2

44200-39840-000

CAP SET,FUEL TANK

CAP SET,FUEL TANK

E33

2

44200-39830-000

CAP SET,FUEL TANK

CAP SET,FUEL TANK

E3,e28

3

68111-48G01-000

EMBLEM,FUEL TANK,R

EMBLEM,FUEL TANK,R

4

68121-48G01-000

EMBLEM,FUEL TANK,L

EMBLEM,FUEL TANK,L

5

44191-48G10-000

SHIELD,FUEL TANK HEAT

SHIELD,FUEL TANK HEAT

6

44192-48G00-000

TAPE,HEAT SHIELD

TAPE,HEAT SHIELD

7

34810-48G00-000

GAUGE ASSY,FUEL LEVEL SENDER

GAUGE ASSY,FUEL LEVEL SENDER

8

09329-10007-000

Подушка

Подушка

Cushion, front Cushion, front;

9

44541-13E10-000

Валик

Валик

Cushion, side;

10

09407-30402-000

CLAMP(L:300)

CLAMP(L:300)

11

44276-29G00-000

Валик крышки

Валик крышки

Cushion, rear fender;

12

09404-06433-000

Струбцина (L:80)

Струбцина (L:80)

Clamp (l:80) Clamp, shield;

13

44530-48G10-000

BRACKET,FUEL TANK RR

BRACKET,FUEL TANK RR

14

09116-06192-000

BOLT(6X20)

BOLT(6X20)

15

09320-08001-000

Валик

Валик

Cushion

16

09169-06062-000

Кольцо/шайба

Кольцо/шайба

Washer

17

01550-0816A-000

Болт крепёжный

Болт крепёжный

Bolt, rear Bolt, rear;
