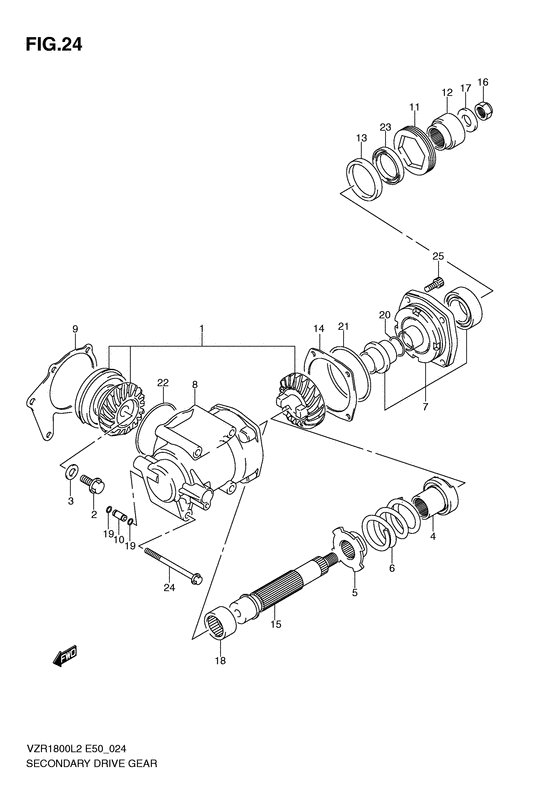

Secondary drive gear для мотоциклов Suzuki VZR1800 Intruder M1800R/ Boulevard M109R (2012)

oem код

название

цена

24910-48830-000

GEAR SET,SECONDARY

09103-12084-000

BOLT(12X24)

Bolt (12x24);

09160-12045-000

WASHER(12X35X2)

Thrust washer Washer (12x35x2);

24923-48G10-000

DOG,OUTPUT CAM

24924-48G10-000

STOPPER,CAM SPRING

24925-48G00-000

SPRING,SECONDARY DAMPER

24926-48830-000

STOPPER SECONDARY SET,DRIVEN

Stopper, sec set, driven bevel;

24931-48G30-000

CASE,SECONDARY GEAR

24935-48810-000

Набор шайб

T:0.40/0.45/0.50/0.55/0.60/, 0.65/0.70/0.75/0.80

24940-26D00-000

PIPE,SECONDARY CASE OIL

Oil pipe, secondary gear case Pipe, secondary gear case oil;

24942-26D00-000

STOPPER,SEC DRIVEN BEARING

Stopper, bearing Stopper, secondary driven;

24943-48G01-000

COUPLING,SEC DRIVEN BEVEL

24944-48G00-000

Обойма сальника

24945-48810-000

SHIM SET,SECONDARY DRIVEN

T:0.30/0.35/0.40/0.50/0.60

24961-48G00-000

SHAFT,SECONDARY DRIVEN

09159-16003-000

Гайка

Nut, rear drive output yoke

09160-16040-000

Шайба

Washer (16.5x36x4) Washer (16.5x36x4);

09263-32012-000

BEARING(32X48X22)

Bearing, fr Bearing (32x48x22);

09280-06008-000

O RING(D:1.7,ID:6)

O ring (d:1.7,id:6);

09280-24010-000

O RING(D:2.4,ID:23.7)

O ring, collar output O ring (d:2.4,id:23.7);

09280-78003-000

Кольцо корпуса подшипника

O ring (d:3.7,id:76.5) O ring (d:3.7,id:76.5);

09280-92003-000

O RING(D:2.4,ID:90.8)

O ring (d:2.4,id:90.8);

09283-38011-000

Сальник

Oil seal (38x54x6) Oil seal (38x54x6);

01550-0895A-000

Болт

09106-10087-000

BOLT(10X30)

Bolt (10x30);
