Fuel Tank (Vz800L5 E33) для мотоциклов Suzuki VZ800 Boulevard M50 (2015)

Москва и регионы России

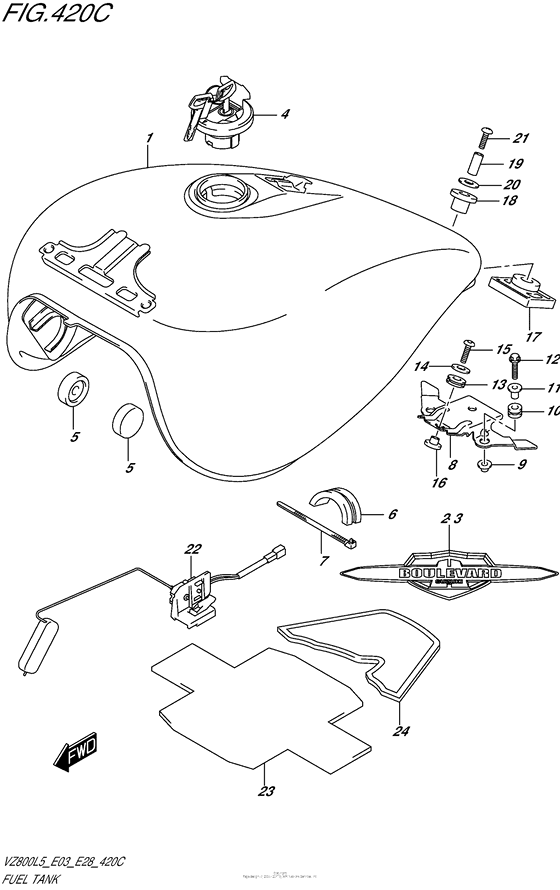

Fuel Tank (Vz800L5 E33)

Suzuki VZ800 Boulevard M50

Fuel Tank (Vz800L5 E33)

Fuel Tank (Vz800L5 E33)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

#

oem код

название

цена

1

44100-39GN0-YVB

TANK ASSY,FUEL(BLACK)

TANK ASSY,FUEL(BLACK)

2

68111-39G01-000

EMBLEM,FUEL TANK,R

EMBLEM,FUEL TANK,R

3

68121-39G01-000

EMBLEM,FUEL TANK,L

EMBLEM,FUEL TANK,L

4

44200-39840-000

CAP SET,FUEL TANK

CAP SET,FUEL TANK

5

09329-10007-000

Подушка

Подушка

Cushion, front

6

44541-14F10-000

Валик

Валик

Cushion, fuel tank lower

7

09407-25402-000

CLAMP(L:250)

CLAMP(L:250)

Clamp, tilt sw

8

44530-39G20-000

BRACKET,FUEL TANK RR

BRACKET,FUEL TANK RR

9

09169-06076-000

Шайба, нижняя

Шайба, нижняя

10

09320-08001-000

Валик

Валик

Cushion

11

09169-06070-000

Прокладка

Прокладка

Spacer

12

02162-0625B-000

Винт

Винт

13

09320-12011-000

Валик

Валик

Cushion

14

09160-08151-000

Шайба

Шайба

Washer, shift rod (8.5x26x1.6)

15

09106-08150-000

Болт

Болт

16

44512-39G00-000

WASHER,FUEL TANK RR BRKT

WASHER,FUEL TANK RR BRKT

17

44542-41F00-000

CUSHION,FUEL TANK RR LWR

CUSHION,FUEL TANK RR LWR

18

44541-41F01-000

CUSHION,FUEL TANK RR UPR

CUSHION,FUEL TANK RR UPR

19

09180-08227-000

SPACER(8.2X12.5X23.5)

SPACER(8.2X12.5X23.5)

20

09160-08146-000

Шайба

Шайба

Washer, muffler support

21

01550-0835A-000

Болт

Болт

22

34810-39G00-000

GAUGE ASSY,FUEL LEVEL SENDER

GAUGE ASSY,FUEL LEVEL SENDER

23

44192-39G00-000

SHIELD,FUEL TANK HEAT

SHIELD,FUEL TANK HEAT

24

44193-39G00-000

SHIELD,FUEL TANK HEAT NO.2

SHIELD,FUEL TANK HEAT NO.2
