Frame comp для мотоциклов Suzuki VZ800 Boulevard M50 (2006)

Москва и регионы России

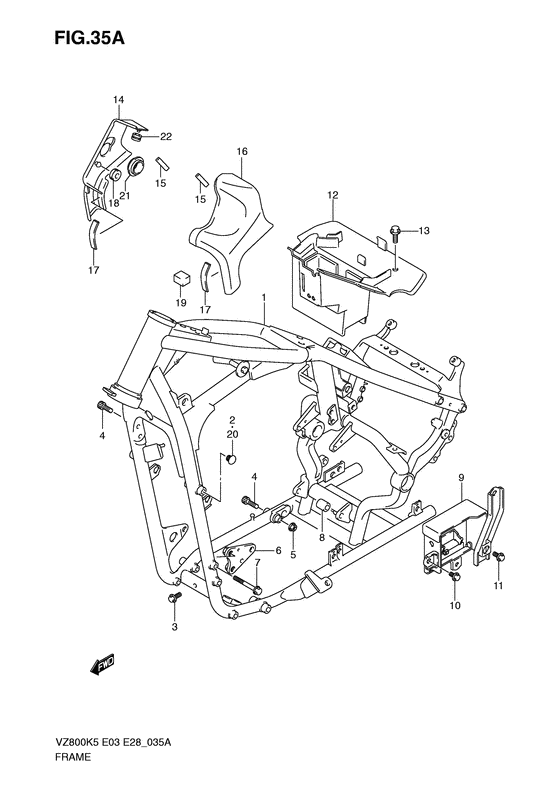

Frame comp

Suzuki VZ800 Boulevard M50

Frame comp

Frame comp

1

2

3

4

4

5

6

7

8

9

10

11

12

13

14

15

15

16

17

17

18

19

20

21

22

#

oem код

название

цена

1

41100-41F80-019

FRAME(BLACK)

FRAME(BLACK)

замена

41100-41F50-019

Frame(black)

Frame(black)

Frame (black);

2

09250-09001-000

CAP(OD:14)

CAP(OD:14)

Plug

3

01550-0816B-000

Болт крепёжный

Болт крепёжный

Bolt, lower bridge front;

4

07130-1035B-000

Болт

Болт

5

08319-3110B-000

Гайка

Гайка

6

41920-41F00-000

PLATE,ENGINE MOUNT NO.1,L

PLATE,ENGINE MOUNT NO.1,L

7

09112-08013-000

BOLT(8X65)

BOLT(8X65)

8

41941-41F00-000

SPACER,ENG MTG LR

SPACER,ENG MTG LR

Spacer, front Spacer, lower;

9

41540-41F30-000

HOLDER,ELECTRIC PARTS

HOLDER,ELECTRIC PARTS

10

01547-0612A-000

Болт

Болт

Bolt, push rod guide Bolt, front;

11

01550-0816A-000

Болт крепёжный

Болт крепёжный

Bolt, rear Bolt, holder;

12

47410-41F02-000

HOLDER,ELECTRIC PARTS

HOLDER,ELECTRIC PARTS

замена

47410-41F01-000

Корпус

Корпус

13

09113-06001-000

BOLT(6X16)

BOLT(6X16)

Bolt, outer

14

47350-41F10-019

COVER,FRAME HEAD,R(BLACK)

COVER,FRAME HEAD,R(BLACK)

Cover, frame head rh (black);

15

53145-40A00-000

CUSHION,FR FENDER

CUSHION,FR FENDER

Protector

16

47360-41F12-019

COVER,FRAME HEAD,L(BLACK)

COVER,FRAME HEAD,L(BLACK)

замена

47360-41F10-019

Cover comp,frame head,l

Cover comp,frame head,l

Cover, frame head lh (black);

17

53145-40A00-000

CUSHION,FR FENDER

CUSHION,FR FENDER

Protector

18

09320-08018-000

Валик

Валик

Cushion, lh

19

17798-39G00-000

CUSHION,RADIATOR COVER INNER

CUSHION,RADIATOR COVER INNER

Cushion, housing cover Cushion, lower;

20

09250-09001-000

CAP(OD:14)

CAP(OD:14)

Plug Cap, cushion;

21

47355-41F01-000

Крышка

Крышка

замена

47355-41F00-000

Cap, head cover rh

Cap, head cover rh

22

09320-09501-000

Валик

Валик

Cushion, upper;
