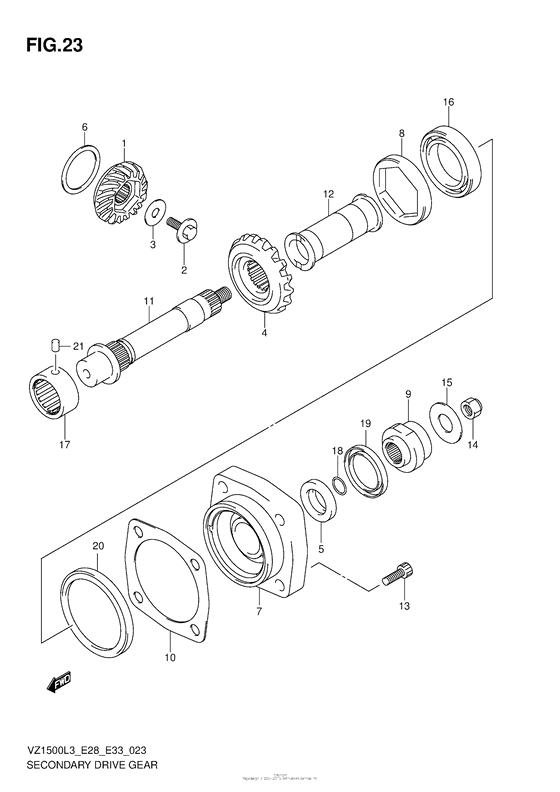

Secondary Drive Gear

Suzuki VZ1500 Boulevard M90

Suzuki
Secondary Drive Gear
#oem кодцена
1
24911-40H00-000
GEAR,SECONDARY DRIVE
2
09103-12114-000
BOLT(12X24)
3
08211-12341-000
Шайба - опора
4
24921-40H00-000
GEAR,SECONDARY DRIVEN
5
21102-31G00-000
Прокладка вала
6
24935-40810-000
SHIM SET,SEC DRIVE
7
24941-40H00-000
HOUSING,SEC DRIVEN BEARING
8
24942-26D00-000
STOPPER,SEC DRIVEN BEARING
9
24943-40H00-000
COUPLING,SEC DRIVEN BEVEL
10
24945-40810-000
SHIM SET,SEC DRIVEN
11
24961-40H00-000
SHAFT,SECONDARY DRIVEN BEVEL
12
24962-40H00-000
SPACER,SEC DRIVEN BEVEL
13
09106-10087-000
BOLT(10X30)
14
09159-16003-000
Гайка
15
09160-16040-000
Шайба
16
09262-28014-000
BEARING(28X68X18)
17
09263-32021-000
BEARING(32X50X22)
18
09280-25004-000
O RING(D:2.4,ID:24.7)
19
09283-38011-000
Сальник
20
09286-84001-000
SEAL,OIL(76X84X7)
21
09202-07005-000
PIN(7X12)
