Обтекатель рамы для мотоциклов Suzuki VZ1500 Boulevard M90 (2016)

Москва и регионы России

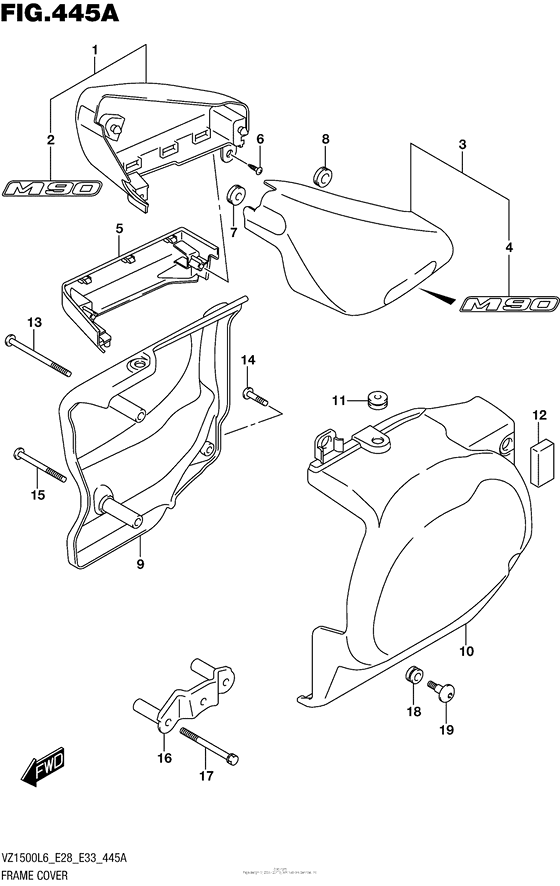

Обтекатель рамы

Suzuki VZ1500 Boulevard M90

Обтекатель рамы

Обтекатель рамы

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

#

oem код

название

цена

1-2

47110-40HA0-YYG

COVER COMP,SIDE,R

COVER COMP,SIDE,R

1-1

47110-40HA0-YVB

COVER COMP,SIDE,R

COVER COMP,SIDE,R

2-2

68131-40HA0-019

EMBLEM,"M90"

EMBLEM,"M90"

2-1

68131-40HA0-YHG

EMBLEM,"M90"

EMBLEM,"M90"

3-2

47210-40HA0-YYG

COVER COMP,SIDE,L

COVER COMP,SIDE,L

3-1

47210-40HA0-YVB

COVER COMP,SIDE,L

COVER COMP,SIDE,L

4-2

68131-40HA0-019

EMBLEM,"M90"

EMBLEM,"M90"

4-1

68131-40HA0-YHG

EMBLEM,"M90"

EMBLEM,"M90"

5

47121-40H00-000

COVER,SIDE LWR,R

COVER,SIDE LWR,R

6

03541-0516A-000

Болт

Болт

7

09320-08049-000

Подушка

Подушка

8

09320-08018-000

Валик

Валик

Cushion, lh

9

47130-40H20-000

COVER COMP,LOWER,R

COVER COMP,LOWER,R

10

47231-40H20-000

COVER,LOWER,L

COVER,LOWER,L

11

09320-06504-000

Подушка

Подушка

12

51827-01A00-000

CUSHION,HEAD LAMP HOUSING

CUSHION,HEAD LAMP HOUSING

13

47139-40H00-000

SCREW,LWR COVER,R FR UP

SCREW,LWR COVER,R FR UP

14

09139-06140-000

SCREW(6X16)

SCREW(6X16)

15

47138-40H00-000

SCREW,LWR COVER,R FR LWR

SCREW,LWR COVER,R FR LWR

16

47250-06J00-000

BRACKET,LWR COVER,L

BRACKET,LWR COVER,L

17

01547-0650A-000

Болт

Болт

18

09320-09016-000

Подушка

Подушка

Cushion, holder

19

09139-06126-000

SCREW(6X20)

SCREW(6X20)

Screw, brace
