Fuel Tank (Vz1500L7 E33) для мотоциклов Suzuki VZ1500 Boulevard M90 (2017)

Москва и регионы России

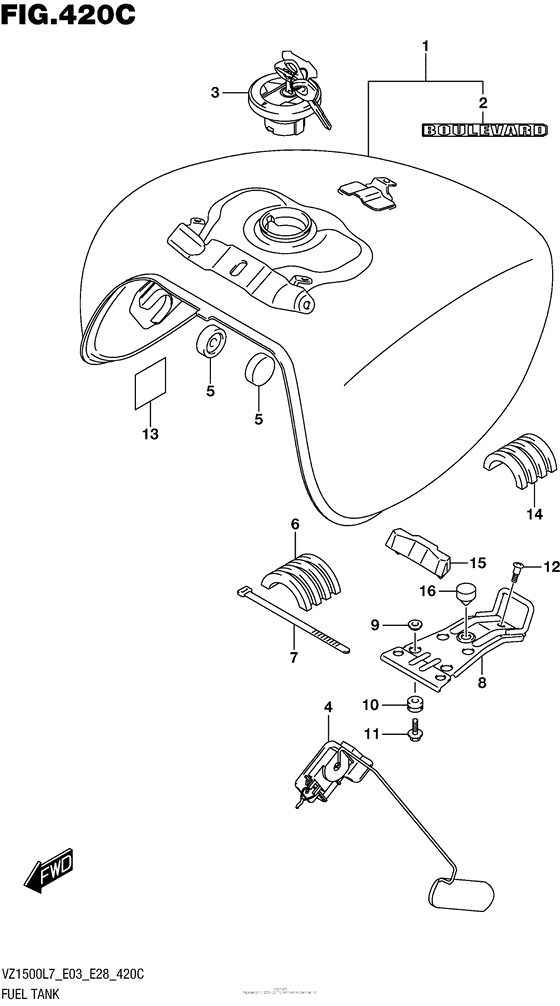

Fuel Tank (Vz1500L7 E33)

Suzuki VZ1500 Boulevard M90

Fuel Tank (Vz1500L7 E33)

Fuel Tank (Vz1500L7 E33)

3

4

5

6

7

8

9

10

11

12

13

14

15

16

#

oem код

название

цена

1-2

44100-40H70-YYG

TANK ASSY,FUEL

TANK ASSY,FUEL

1-1

44100-40H70-YVB

TANK ASSY,FUEL

TANK ASSY,FUEL

2-2

68111-48G20-019

EMBLEM,FUEL TANK "BOULEVARD"

EMBLEM,FUEL TANK "BOULEVARD"

2-1

68111-48G20-YHG

EMBLEM,FUEL TANK "BOULEVARD"

EMBLEM,FUEL TANK "BOULEVARD"

3

44200-39870-000

CAP SET,FUEL TANK

CAP SET,FUEL TANK

4

34810-40H00-000

GAUGE ASSY,FUEL LEVEL SENDER

GAUGE ASSY,FUEL LEVEL SENDER

5

09329-10007-000

Подушка

Подушка

Cushion, front

6

44541-04F00-000

CUSHION,FUEL TANK LWR

CUSHION,FUEL TANK LWR

7

09407-30402-000

CLAMP(L:300)

CLAMP(L:300)

8

44530-06J00-000

BRACKET,FUEL TANK RR

BRACKET,FUEL TANK RR

9

09169-06062-000

Кольцо/шайба

Кольцо/шайба

Washer

10

09320-08001-000

Валик

Валик

Cushion

11

09116-06192-000

BOLT(6X20)

BOLT(6X20)

12

01550-0812A-000

Болт

Болт

13

44283-40H00-000

PROTECTOR,FUEL TANK

PROTECTOR,FUEL TANK

14

44541-06J00-000

CUSHION,TANK SIDE

CUSHION,TANK SIDE

15

44545-06J00-000

Подушка

Подушка

16

09321-10011-000

Подушка

Подушка
