Обтекатель задний для мотоциклов Suzuki VZ1500 Intruder M1500 (2009)

Москва и регионы России

Обтекатель задний

Suzuki VZ1500 Intruder M1500

Обтекатель задний

Обтекатель задний

1

1

1

1

2

2

2

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

#

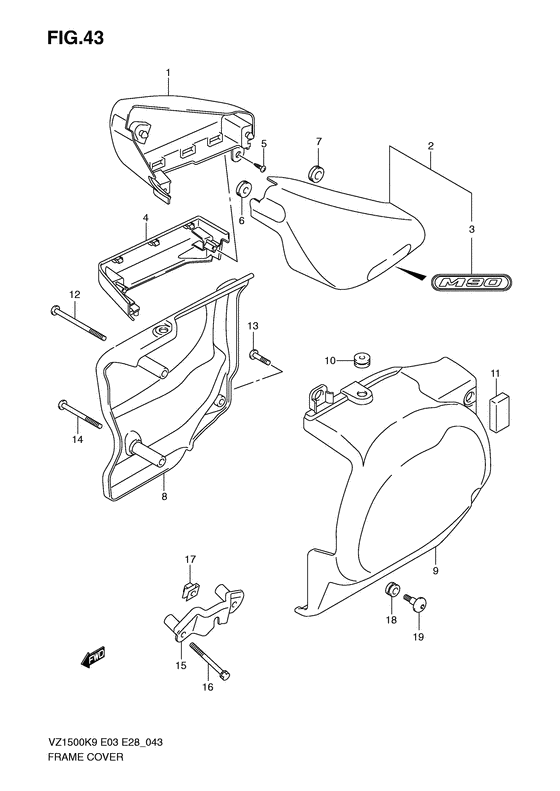

oem код

название

цена

1

47110-40H01-YMK

COVER,SIDE,R(RED)

COVER,SIDE,R(RED)

замена

47110-40H00-YMK

Cover comp,side,r

Cover comp,side,r

Cover, side rh (red); Model l0

1

47111-40H00-000

COVER,SIDE,R(NON PAINT)

COVER,SIDE,R(NON PAINT)

замена

47110-40H00-YSF

Cover comp,side,r

Cover comp,side,r

Cover, side rh (blue); Model k9

1

47110-40H01-YHL

COVER,SIDE,R(RED)

COVER,SIDE,R(RED)

замена

47110-40H00-YHL

Cover comp,side,r

Cover comp,side,r

Cover, side rh (red); Model k9

1

47110-40H01-YAY

COVER,SIDE,R(BLACK)

COVER,SIDE,R(BLACK)

замена

47110-40H00-YAY

Cover comp,side,r

Cover comp,side,r

Cover, side rh (black);

2

47210-40H01-YMK

COVER,SIDE,L(RED)

COVER,SIDE,L(RED)

замена

47210-40H00-YMK

Cover comp,side,l

Cover comp,side,l

Cover, side lh (red); Model l0

2

47210-40H01-YSF

COVER,SIDE,L(BLUE)

COVER,SIDE,L(BLUE)

замена

47210-40H00-YSF

Cover comp,side,l

Cover comp,side,l

Cover, side lh (blue); Model k9

2

47210-40H01-YHL

COVER,SIDE,L(RED)

COVER,SIDE,L(RED)

замена

47210-40H00-YHL

Cover comp,side,l

Cover comp,side,l

Cover, side lh (red); Model k9

2

47210-40H01-YAY

COVER,SIDE,L(BLACK)

COVER,SIDE,L(BLACK)

замена

47210-40H00-YAY

Cover comp,side,l

Cover comp,side,l

Cover, side lh (black);

3

68131-40H01-000

EMBLEM,M90

EMBLEM,M90

замена

68131-40H00-000

Emblem,"m90"

Emblem,"m90"

4

47121-40H00-000

COVER,SIDE LWR,R

COVER,SIDE LWR,R

5

03541-0516A-000

Болт

Болт

6

09320-08049-000

Подушка

Подушка

Cushion, front;

7

09320-08018-000

Валик

Валик

Cushion, lh Cushion, rear;

8

47130-40H00-000

COVER,LWR,R

COVER,LWR,R

9

47231-40H00-000

COVER,LWR,L

COVER,LWR,L

10

09320-06504-000

Подушка

Подушка

Cushion, lower;

11

51827-01A00-000

CUSHION,HEAD LAMP HOUSING

CUSHION,HEAD LAMP HOUSING

Cushion, lh;

12

47139-40H00-000

SCREW,LWR COVER,R FR UP

SCREW,LWR COVER,R FR UP

13

09139-06140-000

SCREW(6X16)

SCREW(6X16)

Screw, rh rear;

14

47138-40H00-000

SCREW,LWR COVER,R FR LWR

SCREW,LWR COVER,R FR LWR

15

47250-40H00-000

BRACKET,LWR COVER,L

BRACKET,LWR COVER,L

16

01547-0650A-000

Болт

Болт

Bolt, bracket;

17

09148-06018-000

Гайка

Гайка

Nut, buckrest rear cover

18

09320-09016-000

Подушка

Подушка

Cushion, holder Cushion, lh;

19

09139-06126-000

SCREW(6X20)

SCREW(6X20)

Screw, brace Screw;
