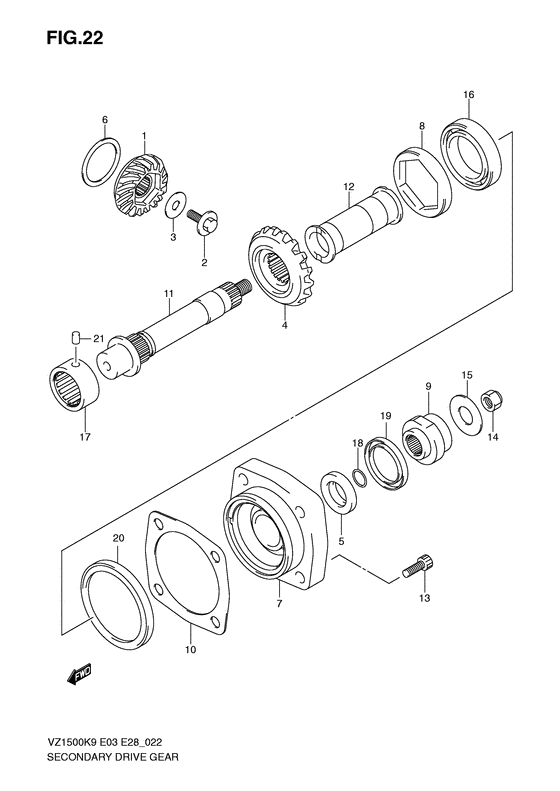

Secondary fixed sheave для мотоциклов Suzuki VZ1500 Intruder M1500 (2010)

oem код

название

цена

24911-40H00-000

GEAR,SECONDARY DRIVE

Nt:17

09103-12084-000

BOLT(12X24)

Bolt, secondary drive gear; 12x24

08211-12341-000

Шайба - опора

Thrust washer Washer, secondary drive;

24921-40H00-000

GEAR,SECONDARY DRIVEN

Nt:20

21102-31G00-000

Прокладка вала

Spacer, primary shaft Spacer, secondary shaft;

24935-40810-000

SHIM SET,SEC DRIVE

T:0.80/0.85/0.90/0.95/1.00/1.05/, 1.10/1.15/1.20

24941-40H00-000

HOUSING,SEC DRIVEN BEARING

24942-26D00-000

STOPPER,SEC DRIVEN BEARING

Stopper, bearing Stopper, sec driven;

24943-40H00-000

COUPLING,SEC DRIVEN BEVEL

24945-40810-000

SHIM SET,SEC DRIVEN

T:0.30/0.35/0.40/0.50/0.60

24961-40H00-000

SHAFT,SECONDARY DRIVEN BEVEL

24962-40H00-000

SPACER,SEC DRIVEN BEVEL

09106-10087-000

BOLT(10X30)

Bolt, br housing (10x30);

09159-16003-000

Гайка

Nut, rear drive output yoke Nut, sec driven;

09160-16040-000

Шайба

Washer (16.5x36x4) Washer, sec driven; 16.5x36x4

09262-28014-000

BEARING(28X68X18)

Bearing, mdl (28x68x18) Bearing, sec driven, r; 28x68x18

09263-32021-000

BEARING(32X50X22)

32x50x22

09280-25004-000

O RING(D:2.4,ID:24.7)

O-ring, primary shaft O ring (d:2.4,id:24.7);

09283-38011-000

Сальник

Oil seal (38x54x6) Oil seal (38x54x6); 38x54x6

09286-84001-000

SEAL,OIL(76X84X7)

70x84x7

09202-07005-000

PIN(7X12)
