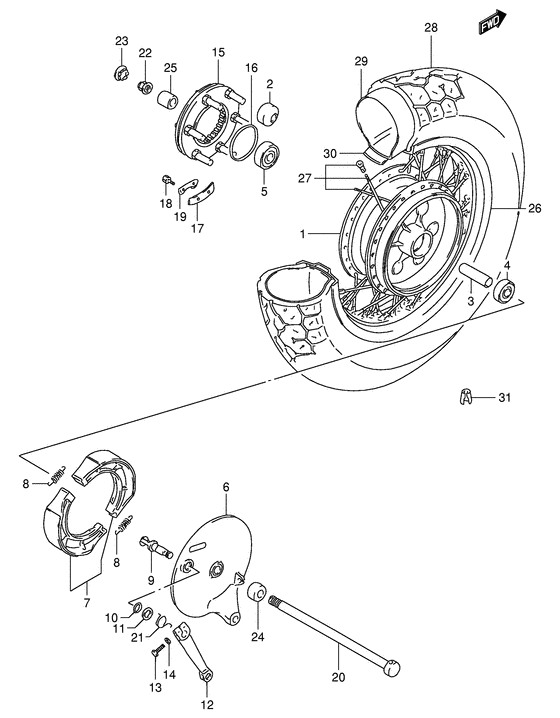

Rear wheel complete assy для мотоциклов Suzuki VS800 Intruder 800 (1996)

oem код

название

цена

64100-07861-000

HUB SET,RR

Hub set, rear wheel

замена

64100-07860-000

Hub set, rear

Model n/p/r/s/t

09319-12019-000

Втулка

Bushing Bushing;

09180-17091-000

SPACER(17.5X25X80)

Spacer, rear hub (l:80) Spacer, rear hub (17.5x25x80);

08133-62037-000

Подшипник

Bearing, rh;

08143-63037-000

Подшипник

Bearing, rear hub lh Bearing, lh;

64210-38A21-000

PANEL,RR BRAKE ANCHOR

Panel, rear brake anchor

замена

64210-38A20-000

Panel, rear

64400-38810-000

SHOE SET,BRAKE

Shoe set, brake

55420-30000-000

SPRING,BRAKE SHOE

Spring, shoe Spring;

64441-38A20-000

CAM,RR BRAKE

Model t/v

64440-38A00-000

CAM,RR BRAKE

Cam, brake Model n/p/r/s

09280-15003-000

O RING(D:2.4,ID:14.8)

O ring (id:14.8,dd:2.4) O ring (id:14.8,d:2.40);

09160-15048-000

Шайба

замена

09160-15001-000

Dust seal washe

Dust seal washer Washer;

64451-38A01-000

LEVER,RR BRAKE CAM

01570-06257-000

Болт

замена

01137-06258-000

Болт

Model p

01500-06257-000

Болт

замена

01107-06257-000

Болт

Model n

08321-01067-000

Шайба, стопорная

замена

08321-21067-000

Пластина замка

Model n

64680-45113-000

JOINT ASSY,RR HUB DRIVEN

Joint assy, driven

замена

64680-07A01-000

Joint, hub driven

Model n/p,

09280-65003-000

O RING(D:2.1,ID:65)

O ring, driven joint O ring (id:65,d:2.10);

64677-45110-000

Шайба упорная

Thrust washer (t:1.6) Washer, thrust;

09119-06049-000

BOLT(6X16)

09169-06030-000

Шайба

Washer, joint

64711-38A11-000

AXLE,RR

Axle, rear (l:302) Axle, rear (l:302);

09448-33006-000

Пружина кулачка

Spring, cam;

08319-3114A-000

Гайка

замена

08319-31148-000

Гайка

64791-38B00-000

CAP,RR AXLE,R

Cap, rh Cap, rh;

64751-46D00-000

SPACER,RR AXLE,L

Spacer, rear axle lh

замена

64741-38A22-000

Spacer, rh

64772-34201-000

SPACER,RR AXLE,L

Spacer, lh;

65311-38A02-000

RIM,RR WHEEL MT(3.00X15 M/C)

Rim, wheel (mt3.00x15 m/c)

замена

65311-38A01-000

Rim, wheel (mt3.00x15m/c)

Model n/p/r, model s, ~f.no.103440

65320-38A02-000

SPOKE ASSY,RR WHEEL

Spoke set, rear wheel Model s, f.no.103441~, model t/v

65320-38A01-000

Spoke set rear

Spoke set, rear wheel; Model n/p/r, model s, ~f.no.103440

65100-38A41-000

Tire, rear (140/90-15 m/c 70h)

Tire, rear (140/90-15m/c 70h) bridgestone Tire, rear (140/90-15 m/c 70h) (bridgestone);

65200-38A70-000

TUBE ASSY,WHEEL INNER

Tube assy, wheel inner

замена

65200-38A00-000

Tube, wheel inner

Tube, wheel inner;

65261-38A00-000

PROTECTOR,WHL INR TUBE

Protector, inner tube;

55413-41F00-000

BALANCER,WHEEL(30G)

Balancer, wheel no.2

замена

55413-38A00-000

Балансир

Balancer, wheel no.2 Balancer (30g);

55412-41F00-000

BALANCER,WHEEL(20G)

Balancer, wheel no.1

замена

55412-38A00-000

Балансир

Balancer, wheel no.1 Balancer (20g);
