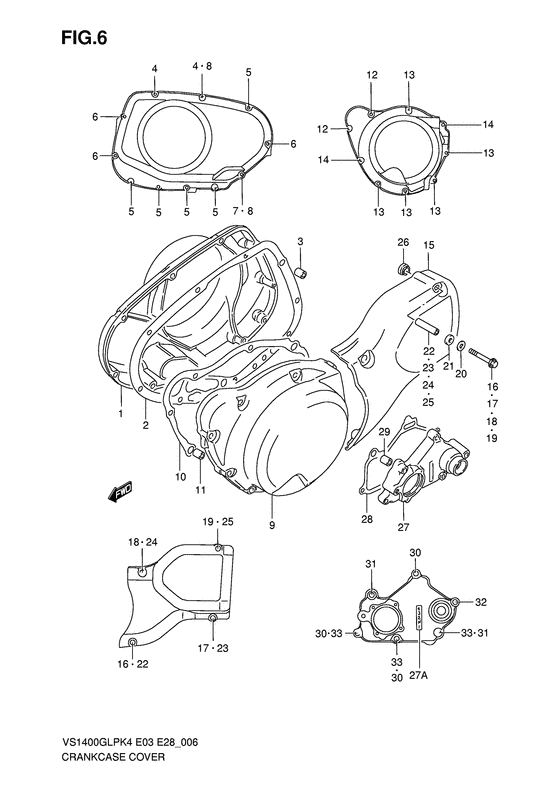

Crankcase cover ass`y (v для мотоциклов Suzuki VS1400 Boulevard S83 (2008)

Москва и регионы России

Crankcase cover ass`y (v

Suzuki VS1400 Boulevard S83

Crankcase cover ass`y (v

Crankcase cover ass`y (v

1

2

3

4

4

4

4

5

5

5

5

5

5

5

5

5

5

6

6

6

6

6

6

7

7

8

8

9

10

11

12

12

12

12

13

13

13

13

13

13

13

13

13

13

14

14

14

14

15

16

16

16

16

17

17

17

17

18

18

18

18

19

19

19

19

20

21

22

22

23

23

24

24

25

25

26

27

27

28

29

30

30

30

30

30

30

31

31

31

31

32

32

33

33

33

#

oem код

название

цена

1

11341-38B01-000

COVER,CLUTCH

COVER,CLUTCH

2

11482-38B20-000

GASKET,CLUTCH COVER

GASKET,CLUTCH COVER

замена

11482-38B10-000

Прокладка крышки сцепления

Прокладка крышки сцепления

Model k4/k5

3

04211-09189-000

Штифт

Штифт

Pin;

4

09103-06213-000

BOLT(6X30)

BOLT(6X30)

Model k5/k6/k7/k8

4

01547-06307-000

Болт

Болт

Model k4

5

09103-06213-000

BOLT(6X30)

BOLT(6X30)

Model k5/k6/k7/k8

5

01547-06307-000

Болт

Болт

Model k4

6

09103-06215-000

BOLT(6X40)

BOLT(6X40)

Bolt (6x40) Model k5/k6/k7/k8

6

01547-06407-000

Болт

Болт

Model k4

7

09103-06216-000

BOLT(6X55)

BOLT(6X55)

Model k5/k6/k7/k8

7

01547-06557-000

Болт

Болт

Model k4

8

09168-06023-000

GASKET(5.8X13X1.2)

GASKET(5.8X13X1.2)

Gasket (5.8x13x1.2) Gasket (5.8x13x1.2);

9

11351-38B00-000

COVER,GENERATOR

COVER,GENERATOR

Cover, generator

10

11483-38B10-000

GASKET,GENERATOR COVER

GASKET,GENERATOR COVER

замена

11483-38B00-H17

Gasket, generator cover

Gasket, generator cover

Gasket, generator cover Model k4/k5

11

09206-11007-000

PIN(8.4X11X20)

PIN(8.4X11X20)

12

09103-06213-000

BOLT(6X30)

BOLT(6X30)

Model k5/k6/k7/k8

12

01547-06307-000

Болт

Болт

Model k4

13

09103-06214-000

BOLT(6X35)

BOLT(6X35)

Bolt (6x35) Model k5/k6/k7/k8

13

01547-06357-000

Болт

Болт

Model k4

14

09103-06224-000

BOLT(6X45)

BOLT(6X45)

Model k5/k6/k7/k8

14

01547-06457-000

Болт

Болт

Model k4

15

11361-38B00-000

COVER,SECONDARY GEAR CASE

COVER,SECONDARY GEAR CASE

Cover, secondary case

16

09103-06214-000

BOLT(6X35)

BOLT(6X35)

Bolt (6x35) Model k5/k6/k7/k8

16

01547-06357-000

Болт

Болт

Model k4

17

09103-06215-000

BOLT(6X40)

BOLT(6X40)

Bolt (6x40) Model k5/k6/k7/k8

17

01547-06407-000

Болт

Болт

Model k4

18

09103-06261-000

BOLT(6X60)

BOLT(6X60)

Bolt (l:60) Model k5/k6/k7/k8

18

01547-06607-000

Болт

Болт

Model k4

19

09103-06261-000

BOLT(6X60)

BOLT(6X60)

Bolt (l:60) Model k5/k6/k7/k8

19

01547-06607-000

Болт

Болт

Model k4

20

09160-06125-000

Шайба

Шайба

Washer (6.5x14x1.6)

21

09161-09005-000

WASHER(8.7X16X5)

WASHER(8.7X16X5)

Cushion, inner Cushion, outer;

22

09180-06301-000

SPACER(6.5X9X21)

SPACER(6.5X9X21)

Spacer (l:21.0) Spacer (l:18.2);

23

09180-06302-000

SPACER(6.5X9X26)

SPACER(6.5X9X26)

Spacer (l:26.0) Spacer (l:23);

24

09180-06303-000

SPACER(6.5X9X49)

SPACER(6.5X9X49)

Spacer (l:49.0) Spacer (l:43);

25

09180-06281-000

SPACER(6.5X9X45.9)

SPACER(6.5X9X45.9)

Spacer (l:45.9);

26

09161-09005-000

WASHER(8.7X16X5)

WASHER(8.7X16X5)

Cushion, inner Cushion, inner;

27A

68392-38B00-000

LABEL,GEAR SHIFT

LABEL,GEAR SHIFT

Label, gear shift pattern;

27

11371-38B20-000

COVER,GEAR SHIFT

COVER,GEAR SHIFT

28

11485-38B20-000

GASKET,GEAR SHIFT COVER

GASKET,GEAR SHIFT COVER

замена

11485-38B10-000

Gasket, gear shift cover

Gasket, gear shift cover

Model k4/k5

29

04211-09109-000

Штифт

Штифт

Knock pin Pin;

30

09103-06212-000

BOLT(6X25)

BOLT(6X25)

Model k5/k6/k7/k8

30

01547-06257-000

Болт

Болт

Model k4

31

09103-06214-000

BOLT(6X35)

BOLT(6X35)

Bolt (6x35) Model k5/k6/k7/k8

31

01547-06357-000

Болт

Болт

Model k4

32

09103-06224-000

BOLT(6X45)

BOLT(6X45)

Model k5/k6/k7/k8

32

01547-06457-000

Болт

Болт

Model k4

33

09168-06023-000

GASKET(5.8X13X1.2)

GASKET(5.8X13X1.2)

Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); Model k4
