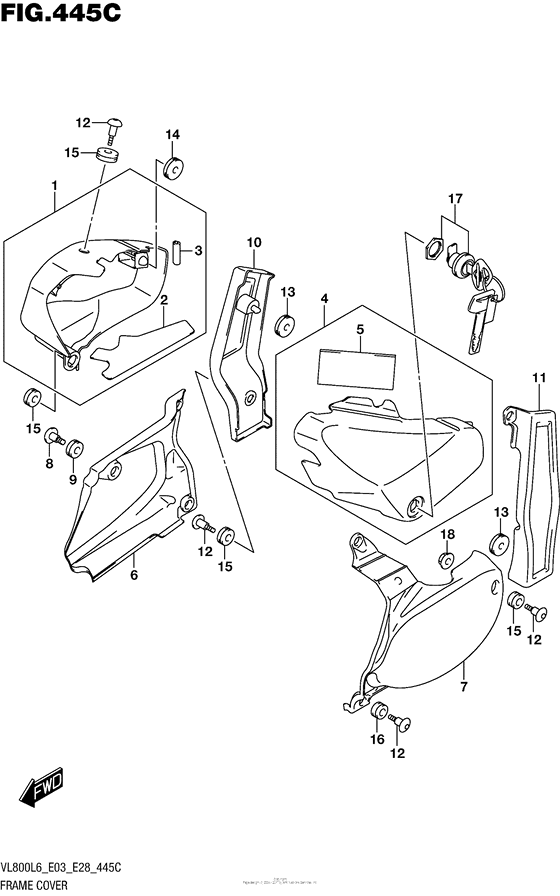

Frame Cover (Vl800L6 E33)

Suzuki VL800T Boulevard C50T

Suzuki
Frame Cover (Vl800L6 E33)
#oem кодцена
1-2
47110-43H20-YWW
COVER COMP,SIDE,R
1-1
47110-43H20-YVB
COVER COMP,SIDE,R
2
47166-41F00-000
SHIELD,FRAME COVER
3
94631-35F00-000
Валик
4-2
47210-43H10-YWW
COVER COMP,SIDE,L
4-1
47210-43H10-YVB
COVER COMP,SIDE,L
5
47217-41F00-000
CUSHION,LUGGAGE BOX
6
47130-41F00-000
COVER,SIDE LWR,R
7
47231-41F00-000
COVER,SIDE LWR,L
8
47133-43H00-000
SCREW,SIDE COVER LWR,R
9
09320-08021-000
Подушка
10
47141-41F01-019
COVER,SIDE RR,R
11
47241-41F00-019
COVER,SIDE RR,L
12
09139-06126-000
SCREW(6X20)
13
09320-08018-000
Валик
14
09320-08028-000
Подушка
15
09320-09501-000
Валик
16
09320-09045-000
Валик
17
95700-07860-000
LOCK SET,COVER
18
08316-1006B-000
Гайка
