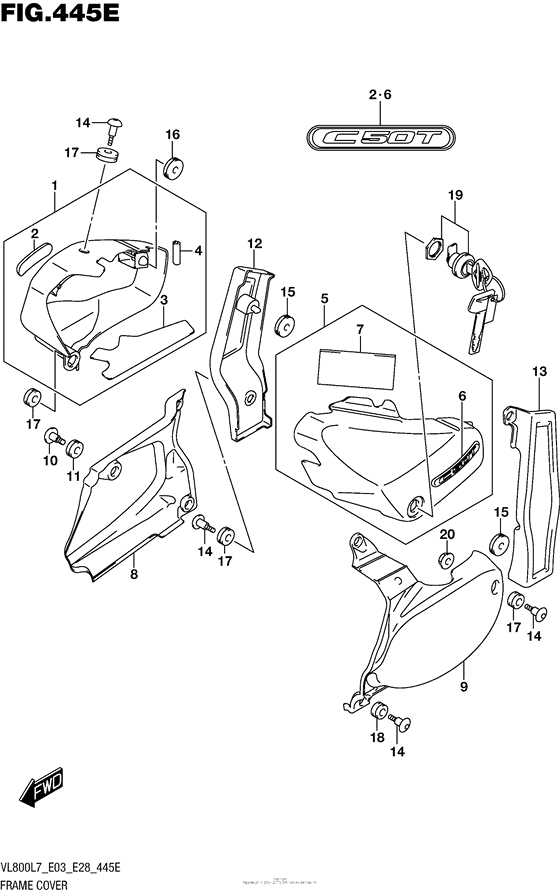

Frame Cover (Vl800Tl7 E28) для мотоциклов Suzuki VL800 Boulevard C50 (2017)

Москва и регионы России

Frame Cover (Vl800Tl7 E28)

Suzuki VL800 Boulevard C50

Frame Cover (Vl800Tl7 E28)

Frame Cover (Vl800Tl7 E28)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

#

oem код

название

цена

1

47110-43HA0-YVB

COVER COMP,SIDE,R

COVER COMP,SIDE,R

2

68131-43HA0-YES

EMBLEM,"C50T"

EMBLEM,"C50T"

3

47166-41F00-000

SHIELD,FRAME COVER

SHIELD,FRAME COVER

4

94631-35F00-000

Валик

Валик

5

47210-43HA0-YVB

COVER COMP,SIDE,L

COVER COMP,SIDE,L

6

68131-43HA0-YES

EMBLEM,"C50T"

EMBLEM,"C50T"

7

47217-41F00-000

CUSHION,LUGGAGE BOX

CUSHION,LUGGAGE BOX

8

47130-41F00-000

COVER,SIDE LWR,R

COVER,SIDE LWR,R

9

47231-41F00-000

COVER,SIDE LWR,L

COVER,SIDE LWR,L

10

47133-43H00-000

SCREW,SIDE COVER LWR,R

SCREW,SIDE COVER LWR,R

11

09320-08021-000

Подушка

Подушка

Cushion, fuse box

12

47141-41F01-019

COVER,SIDE RR,R

COVER,SIDE RR,R

13

47241-41F00-019

COVER,SIDE RR,L

COVER,SIDE RR,L

14

09139-06126-000

SCREW(6X20)

SCREW(6X20)

Screw, brace

15

09320-08018-000

Валик

Валик

Cushion, lh

16

09320-08028-000

Подушка

Подушка

Grommet

17

09320-09501-000

Валик

Валик

18

09320-09045-000

Валик

Валик

19

95700-07860-000

LOCK SET,COVER

LOCK SET,COVER

20

08316-1006B-000

Гайка

Гайка
