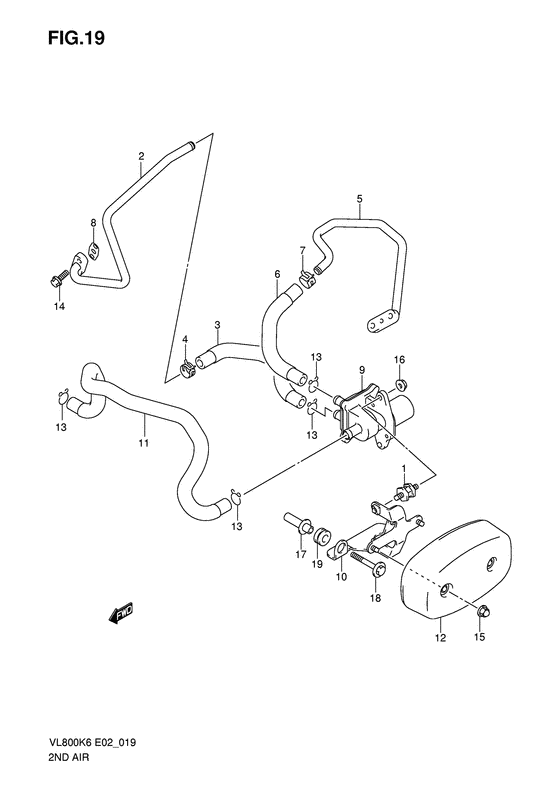

Second air для мотоциклов Suzuki VL800 Intruder C800C/ Boulevard C50C (2010)

Москва и регионы России

Second air

Suzuki VL800 Intruder C800C/ Boulevard C50C

Second air

Second air

1

2

3

4

5

6

7

8

9

10

11

12

13

13

13

13

14

15

16

17

18

19

#

oem код

название

цена

1

17788-13612-000

BOLT,CUSHION

BOLT,CUSHION

Bolt, 2nd air valve cushion;

2

18410-41F20-000

PIPE,2ND AIR FR

PIPE,2ND AIR FR

3

18461-41F20-000

HOSE,2ND AIR VALVE FR

HOSE,2ND AIR VALVE FR

4

09401-15407-000

Зажим

Зажим

Bolt, 2nd air hose

5

18420-41F20-000

PIPE,2ND AIR RR

PIPE,2ND AIR RR

6

18471-41F20-000

HOSE,2ND AIR VALVE RR

HOSE,2ND AIR VALVE RR

7

09401-15407-000

Зажим

Зажим

Bolt, 2nd air hose Clip, 2nd air hose;

8

18441-45C01-000

Прокладка

Прокладка

Gasket, 2nd air pipe;

9

18450-10F20-000

VALVE ASSY,2ND AIR

VALVE ASSY,2ND AIR

10

18610-41F20-000

BRACKET,2ND AIR SPRT

BRACKET,2ND AIR SPRT

Bracket, 2nd air sprt Bracket, 2nd air sprt;

11

18711-41F20-000

HOSE,2ND AIR CLEANER

HOSE,2ND AIR CLEANER

12

18780-41F20-000

COVER,2ND AIR VALVE

COVER,2ND AIR VALVE

Cover, 2nd air valve Cover, 2nd air valve;

13

09401-15101-000

Зажим

Зажим

Clip, 2nd air hose;

14

01547-06167-000

Болт

Болт

Bolt, fastener bracket Bolt, 2nd air pipe;

15

08313-20067-000

Гайка

Гайка

Nut, 2nd air cov;

16

08316-1006B-000

Гайка

Гайка

Nut, 2nd air valve;

17

18620-41F00-000

SPACER,2ND AIR SPRT BRKT

SPACER,2ND AIR SPRT BRKT

Spacer, bracket Spacer, 2nd air brkt;

18

09116-06183-000

BOLT(6X55)

BOLT(6X55)

Bolt, 2nd air brkt;

19

09320-10015-000

Валик

Валик

Cushion, 2nd air brkt;
