Карданный вал для мотоциклов Suzuki VL800 Intruder C800/ Boulevard C50 (2010)

Москва и регионы России

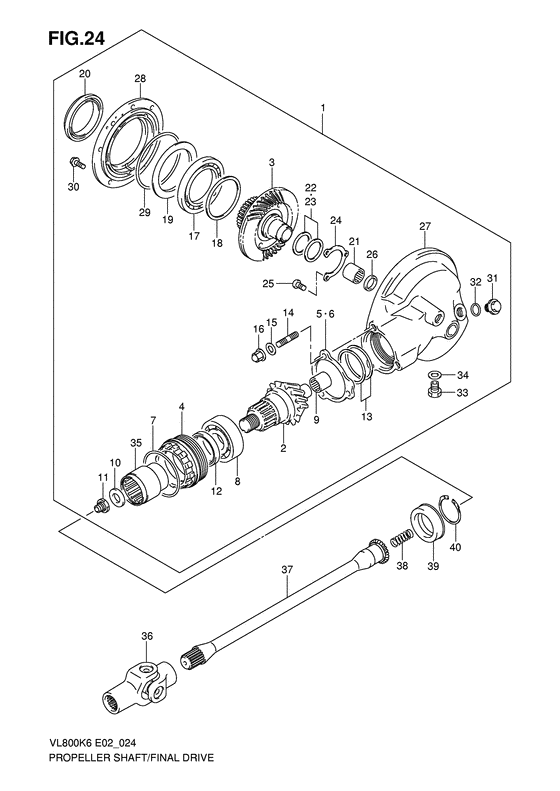

Карданный вал

Suzuki VL800 Intruder C800/ Boulevard C50

Карданный вал

Карданный вал

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

#

oem код

название

цена

1

27300-38851-000

GEAR & CASE SET,FINAL BEVEL

GEAR & CASE SET,FINAL BEVEL

2

27311-38A00-000

GEAR,FINAL DRIVE BEVEL(NT:11)

GEAR,FINAL DRIVE BEVEL(NT:11)

Gear, final drive bevel;

3

27320-45C01-000

GEAR,FINAL DRIVEN BEVEL(NT:34)

GEAR,FINAL DRIVEN BEVEL(NT:34)

Gear, final driven bevel;

4

27312-38A00-000

STOPPER,FINAL DRIVE BEARING

STOPPER,FINAL DRIVE BEARING

5

27313-38A00-000

PLATE,BEARING STOPPER

PLATE,BEARING STOPPER

6

27313-38A10-000

PLATE,BEARING STOPPER

PLATE,BEARING STOPPER

7

09280-62002-000

O RING(D:1.9,ID:61.6)

O RING(D:1.9,ID:61.6)

O ring (d:1.9,id:61.6);

8

09267-30005-000

BEARING(30X62X23.8)

BEARING(30X62X23.8)

Bearing, drive shaft rh Bearing (30x62x23.8);

9

09263-17028-000

BEARING(17X32X16)

BEARING(17X32X16)

Bearing (17x32x16);

10

09160-16029-000

Шайба

Шайба

Washer, sec drive nut Washer (16x29x4);

11

09159-16010-000

Гайка

Гайка

12

09283-38009-000

SEAL,OIL(38X54X6)

SEAL,OIL(38X54X6)

Oil seal, final driven lh Oil seal (38x54x6);

13

27445-38810-000

SHIM SET,FINAL DRIVE GEAR

SHIM SET,FINAL DRIVE GEAR

T:0.3/0.35/, 0.4/0.5/0.6

14

09108-10095-000

Болт

Болт

15

09164-10008-000

Шайба

Шайба

16

09159-10026-000

Гайка

Гайка

Nut Nut;

17

09262-70001-000

Подшипник

Подшипник

Bearing (70x110x13) Bearing, rh (70x110x13);

18

27327-34810-000

SHIM SET,DRIVEN GEAR BEARING

SHIM SET,DRIVEN GEAR BEARING

Shim set, driven gear brg T:0.35/0.4/, 0.5/0.6

19

27328-34200-000

PLATE,FINAL DRIVEN BRG OIL

PLATE,FINAL DRIVEN BRG OIL

Plate

20

09289-70001-000

Сальник

Сальник

Bearing (70x95x4) Oil seal, rh (70x96x16);

21

09263-32007-000

Подшипник

Подшипник

Bearing, lh (32x46x17.7);

22

27326-34820-000

SHIM SET,FINAL DRIVEN GEAR

SHIM SET,FINAL DRIVEN GEAR

T:1.05/1.1/1.2, /1.25/1.35

23

27326-34810-000

SHIM SET,FINAL DRIVE GEAR

SHIM SET,FINAL DRIVE GEAR

T:1.40/1.45/1.50

24

27329-34200-000

RETAINER,FINAL DRIVEN GEAR BRG

RETAINER,FINAL DRIVEN GEAR BRG

Holder, bearing Retainer, bearing;

25

09125-06110-000

BOLT(6X12)

BOLT(6X12)

Screw, retainer (6x12) Screw (6x12); Model l0

25

02112-0612B-000

Болт

Болт

Screw, oil guide plate Screw; Model k6/k7/k8/k9

26

09283-30028-000

SEAL,OIL(30X42X7)

SEAL,OIL(30X42X7)

Oil seal (30x42x7);

27

27450-38A12-000

CASE,FINAL

CASE,FINAL

28

27460-07A01-000

CASE,FINAL GEAR BEARING

CASE,FINAL GEAR BEARING

29

09280-00015-000

O RING(D:3.5,ID:131.6)

O RING(D:3.5,ID:131.6)

O ring (d:3.5,id:131.6);

30

01550-0825A-000

Болт

Болт

31

09247-18001-000

Заглушка

Заглушка

Plug, gear oil filler Plug, oil filler;

32

09280-18004-000

O RING(D:2.4,ID:17.8)

O RING(D:2.4,ID:17.8)

O ring, front hook O ring (d:2.4,id:17.8);

33

09247-14002-000

Винт, сливной.

Винт, сливной.

Plug, drain Plug, oil drain;

34

09168-14002-000

GASKET(13.8X18.8X4.8)

GASKET(13.8X18.8X4.8)

Gasket (13.8x18.8x0.4);

35

27172-38A00-000

COUPLING,FINAL DRIVE GEAR

COUPLING,FINAL DRIVE GEAR

36

27100-38A60-000

YOKE,UNIVERSAL JOINT

YOKE,UNIVERSAL JOINT

замена

27100-38A50-000

Yoke, universal joint

Yoke, universal joint

37

27151-41F00-000

Гребной вал

Гребной вал

38

09440-18019-000

Пружина

Пружина

39

09283-30051-000

SEAL,OIL(28.4X48X15)

SEAL,OIL(28.4X48X15)

Oil seal (28.4x48x15);

40

09381-40003-000

Стопорное кольцо (пружинное)

Стопорное кольцо (пружинное)

Circlip;
